30546 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 069000001 - 069999999) (1996) Deck, Deflector-S, Pulleys Spindle-S Parts Diagram

44" Mower Deck for Groundsmaster 120

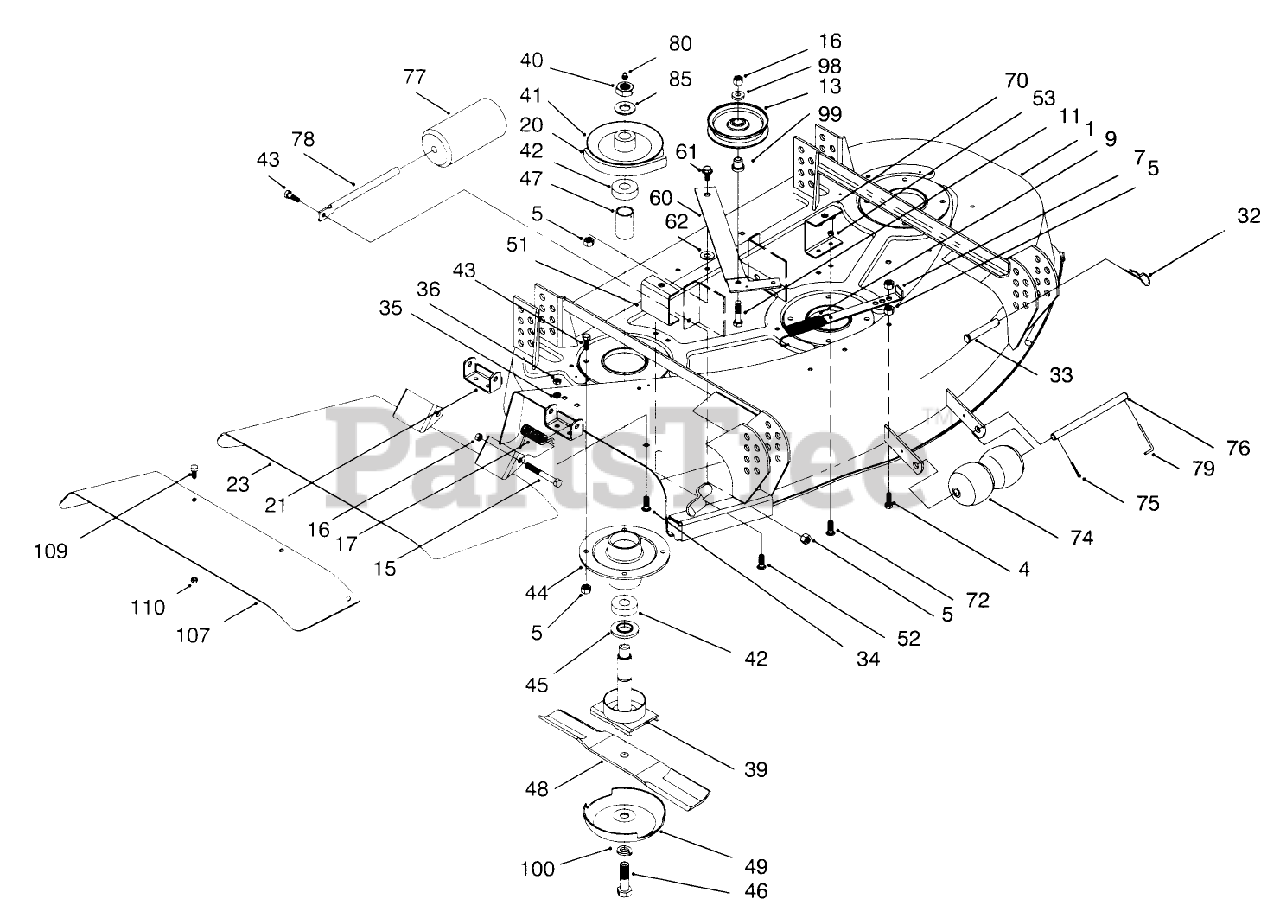

Deck, Deflector-S, Pulleys Spindle-S Parts Diagram

  • Title

1

Toro 94-5833

DISCONTINUED
(Superseded to 94-6024)

$

$

Not available

4

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

7

Toro 54-1180

See Supercession: 54-1180-01
(Superseded to 54-1180-01)

$17.99

$

Usually ships in 3-6 days

0

9

Toro 54-1160

SPRING-EXTENSION, DECK

$47.99

$

In Stock, only 2 left!

0

11

Toro 321-18

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

13

Toro 65-5940

PULLEY-IDLER

$36.99

$

In Stock, only 4 left!

0

15

Toro 3211-15

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

16

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

17

Toro 40-6230

SPRING

$38.99

$

Usually ships in 3-6 days

0

20

Toro 54-1370

V-BELT-DECK

$118.99

$

Usually ships in 3-6 days

0

21

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

23

Toro 57-6970-03

Grass Deflector

$

$

Currently unavailable

32

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

33

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 9

0

34

Toro 3230-20

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

35

Toro 325-34

SCREW-HH

$3.99

$

In Stock, Qty 6

0

36

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

39

Toro 71-2780

See Supercession: 71-2780-03
(Superseded to 71-2780-03)

$330.99

$

Usually ships in 3-6 days

0

40

Toro 32146-20

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

41

Toro 67-7690

PULLEY-DECK

$79.99

$

Usually ships in 3-6 days

0

42

Toro 251-257

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

43

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Toro 67-7590

HOUSING-SPINDLE

$285.99

$

Usually ships in 3-6 days

0

45

Toro 67-7570

SPACER-SPINDLE

$13.99

$

In Stock, Qty 5

0

46

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

47

Toro 67-7580

SPACER-BEARING

$

$

Not available

48

Toro 54-0010

See Supercession: 54-0010-03
(Superseded to 54-0010-03)

$29.99

$

In Stock, Qty 20+

0

49

Toro 67-7560

See Supercession: 67-7561
(Superseded to 67-7561)

$42.99

$

In Stock, only 2 left!

0

51

Toro 55-7050

See Supercession: 55-7050-03
(Superseded to 55-7050-03)

$106.99

$

Usually ships in 3-6 days

0

52

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

53

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

60

Toro 55-7430

See Supercession: 55-7430-01
(Superseded to 55-7430-01)

$82.99

$

Usually ships in 3-6 days

0

61

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 7

0

62

Toro 23-1120

WASHER

$9.99

$

Usually ships in 3-6 days

0

70

Toro 55-7060

See Supercession: 55-7060-03
(Superseded to 55-7060-03)

$

$

Not available

72

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

74

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 8

0

75

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

76

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 6

0

77

Toro 36-1740

ROLLER-DECK

$39.99

$

In Stock, Qty 5

0

78

Toro 62-4480

ROD-ROLLER

$19.99

$

Usually ships in 3-6 days

0

79

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

80

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 6

0

85

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

98

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 4 left!

0

99

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 9

0

100

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

107

Toro 93-9484

DISCONTINUED
(Superseded to 93-9484-01)

$

$

Not available

109

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

110

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0
