30555 - Toro 52" Mower Deck for Groundsmaster 200 Series (SN: 004000001 - 004999999) (1984) V-Plow Installation No. 30755 (optional) Parts Diagram

52" Mower Deck for Groundsmaster 200 Series

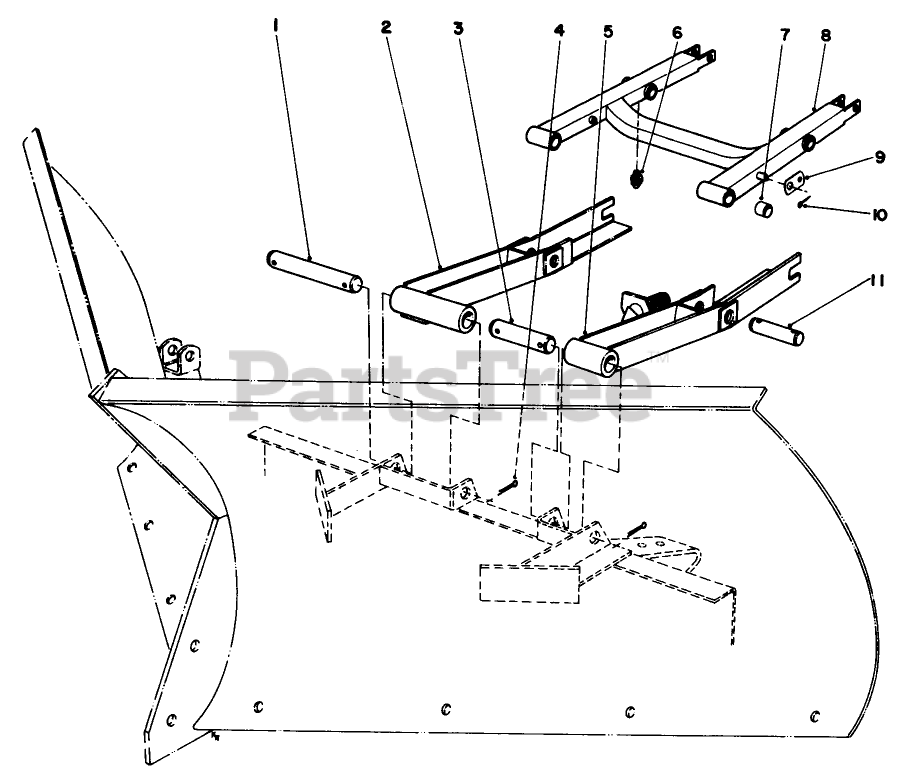

V-Plow Installation No. 30755 (optional) Parts Diagram

  • Title

1

Toro 28-5490

PIN-PLAIN

$109.99

$

Usually ships in 3-6 days

0

2

Toro 28-5510

RH PUSH ARM WA *R

$1312.99

$

Usually ships in 3-6 days

0

3

Toro 25-1350

PIN-PLAIN

$225.99

$

Usually ships in 3-6 days

0

4

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

5

Toro 28-5500

DISCONTINUED

$

$

Not available

6

Toro 302-53

DISCONTINUED

$

$

Not available

7

Toro 256-101

7/8 ID X 1.128 X 7/8 LG BSHG

$10.99

$

Usually ships in 3-6 days

0

8

Toro 27-4270

LIFT ARM WA

Note: Parts must be ordered for mounting V-Plow on Model No. 30775 order parts separately.

$

$

Not available

9

Toro 27-5270

DISCONTINUED

Note: Parts must be ordered for mounting V-Plow on Model No. 30775 order parts separately.

$

$

Not available

10

Toro 3272-12

PIN-COTTER

Note: Parts must be ordered for mounting V-Plow on Model No. 30775 order parts separately.

$0.99

$

In Stock, Qty 20+

0

11

Toro 28-6460

DISCONTINUED

$

$

Not available

Toro 28-5470

TIRE CHAINS (1 PAIR)

Note: Not illustrated

$404.99

$

Usually ships in 3-6 days

0
