30569 - Toro 62" Guardian Recycler Lawn Walk-Behind Mower (SN: 250000001 - 250999999) (2005) COUNTERBALANCE MANIFOLD ASSEMBLY NO. 92-5638 Parts Diagram

62" Guardian Recycler Lawn Walk-Behind Mower

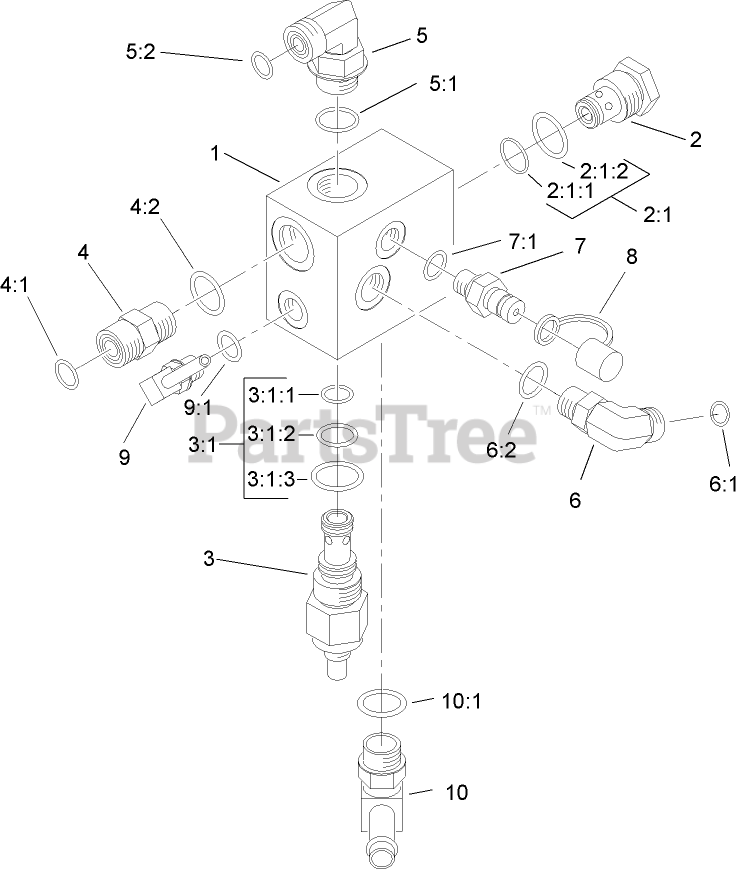

COUNTERBALANCE MANIFOLD ASSEMBLY NO. 92-5638 Parts Diagram

  • Title

1

Block-Manifold

Note: Not serviced separately

$

$

Not available

2

Toro 92-5645

CARTRIDGE-RELIEF

$

$

Not available

2:1

Toro 95-5645

SEAL KIT

$14.99

$

Usually ships in 3-6 days

0

2:1:1

Seal-Dust

Note: Not serviced separately

$

$

Not available

2:1:2

Seal-Dust

Note: Not serviced separately

$

$

Not available

3

Toro 92-5646

CARTRIDGE-LOGIC

$

$

Not available

3:1

Toro 69-4240

Seal Kit

$65.99

$

Usually ships in 3-6 days

0

3:1:1

Seal-Dust

Note: Not serviced separately

$

$

Not available

3:1:2

Seal-Dust

Note: Not serviced separately

$

$

Not available

3:1:3

Seal-Dust

Note: Not serviced separately

$

$

Not available

4

Toro 340-4

FITTING-STRAIGHT

$11.99

$

In Stock, only 3 left!

0

4:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

4:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

5

Toro 340-98

FITTING-ELBOW-90 DEG

$32.99

$

In Stock, only 1 left!

0

5:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

5:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

6

Toro 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

In Stock, only 1 left!

0

6:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

6:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

7

Toro 354-77

FITTING-QUICK

$72.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

8

Toro 353-947

CAP-DUST, RUBBER

$8.99

$

Usually ships in 3-6 days

0

9

Toro 304-99

STEM-HOSE

$38.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

10

Toro 354-120

FITTING-ELB 90

$33.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0
