30575 - Toro 72" Side-Discharge Mower Deck (SN: 007000001 - 007999999) (1987) ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4348G FUEL SYSTEM Parts Diagram

72" Side-Discharge Mower Deck

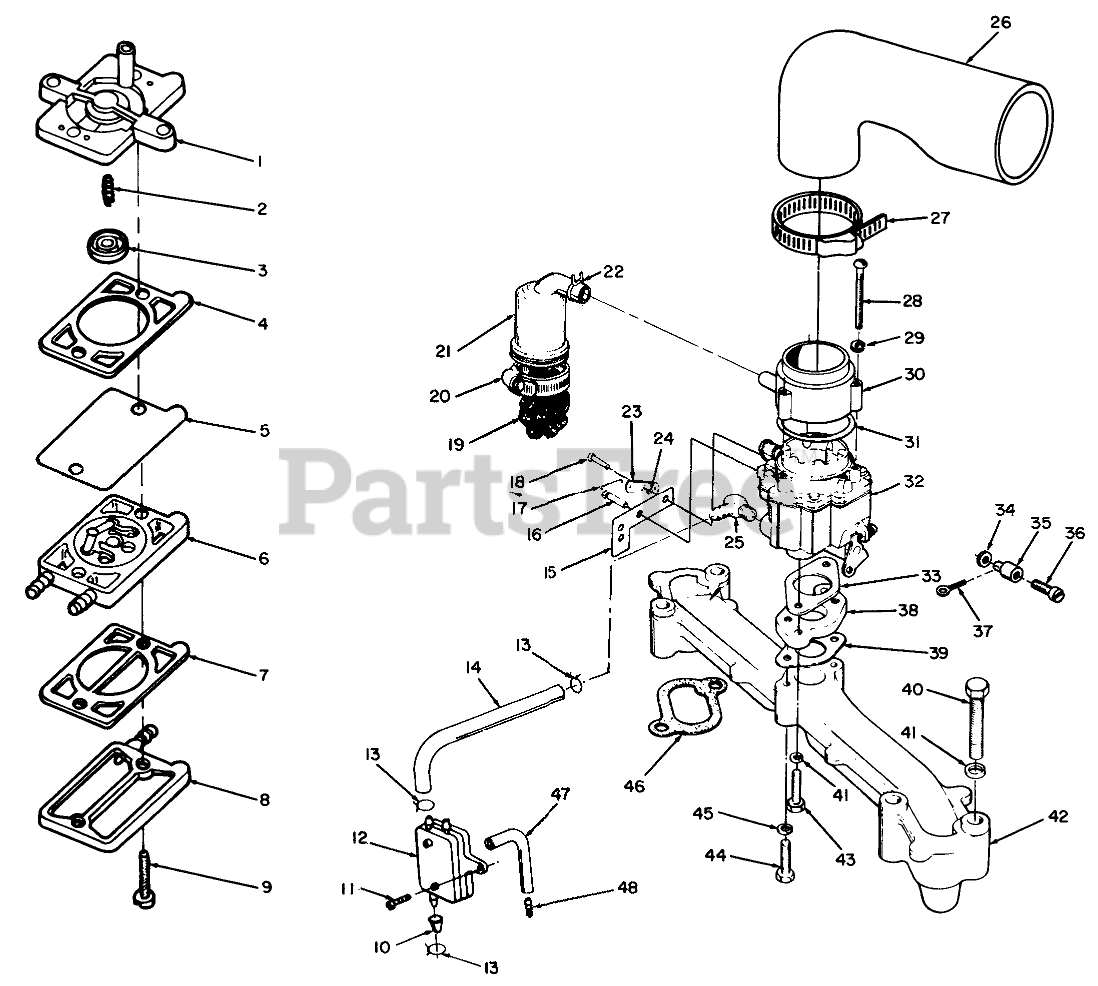

ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4348G FUEL SYSTEM Parts Diagram

  • Title

1

Toro 59-0380

Base, Pump
(Superseded to 57-9080)

$

$

Not available

2

Toro 57-8750

Spring, Fuel Pump

$

$

Not available

3

Toro 57-8760

Plate, Drive-Fuel Pump
(Superseded to 57-9080)

$

$

Not available

4

Toro 57-8740

PUMP COVER GASKET

$

$

Not available

5

Toro 57-8770

Diaphragm-Fuel Pump
(Superseded to 57-9080)

$

$

Not available

6

Toro 57-8780

Valve Assembly, Reed-Fuel Pump (Includes Cap & Clamp)
(Superseded to 57-9080)

$

$

Not available

7

Toro 57-9070

Gasket-Cover to Valve Assy.

$

$

Not available

8

Toro 59-0390

Cover-Pump
(Superseded to 57-9080)

$

$

Not available

9

Toro 57-8730

PUMP SCREW

$

$

Not available

10

Toro 59-0370

CAP-FUEL OUTLET

$

$

Not available

11

Toro 59-1050

SCREW-TAPPING PAN HD

$5.99

$

Usually ships in 3-6 days

0

12

Toro 57-9080

Pump, Fuel-Vacuum Pluse (Incl. Ref. #1-9)

$

$

Not available

13

Toro 57-9550

CLAMP

$

$

Not available

14

Toro 59-0710

Hose
(Superseded to 82-1100)

$

$

Not available

15

Toro 59-0470

BRACKET

$15.99

$

Usually ships in 3-6 days

0

16

Toro 59-1060

HS WSHR HD CAPSCREW

$5.99

$

Usually ships in 3-6 days

0

17

Toro 57-9180

LINK-CHOKE

$

$

Not available

18

Toro 59-1020

BOLT-SHOULDER

$8.99

$

Usually ships in 3-6 days

0

19

Toro 57-8580

FILTER

$6.49

$

Usually ships in 3-6 days

0

20

Toro 57-9530

CLAMP

$

$

Not available

21

Toro 57-8590

TUBE

$

$

Not available

22

Toro 57-9540

CLAMP

$

$

Not available

23

Toro 59-0460

SWIVEL-CHOKE

$

$

Not available

24

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

25

Toro 59-0650

HOSE ELBOW

$

$

Not available

26

Toro 57-8800

INLET ASM

$76.99

$

Usually ships in 3-6 days

0

27

Toro 59-0690

HOSE CLAMP

$

$

Not available

28

Toro 59-0940

RD HD MACH SCREW

$

$

Not available

29

Toro 3253-2

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 57-8720

ADAPTER

$264.99

$

Usually ships in 3-6 days

0

31

Toro 57-9620

SEAL

$6.99

$

Usually ships in 3-6 days

0

32

Toro 57-9040

Carburetor, Complete (Incl. Ref. #33)
(Superseded to NN10204)

$

$

Not available

33

Toro 57-9200

Gasket
(Superseded to 82-0850)

$11.99

$

In Stock, only 1 left!

0

34

Toro 59-0850

Washer

$

$

Not available

35

Toro 57-9170

SWIVEL

$

$

Not available

36

Toro 59-0960

Screw

$

$

Not available

37

Toro 59-0720

PIN-COTTER

$

$

Not available

38

Toro 59-0480

Adapter, Carburetor
(Superseded to 71-6480)

$

$

Not available

39

Toro 57-8790

CARB GASKET

$

$

Not available

40

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

41

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

42

Toro 57-9250

Manifold, Intake
(Superseded to 71-6480)

$

$

Not available

43

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Toro 321-13

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

45

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

46

Toro 57-9220

Hose-Oil
(Superseded to 71-5980)

$14.99

$

In Stock, Qty 5

0

47

Toro 59-0700

Line-Pulse

$

$

Not available

48

Toro 59-0360

TUBE-PORT, VACUUM

Note: Part included in 57-8120 Gear Case Assembly

$

$

Not available
