30575 - Toro 72" Side-Discharge Mower Deck (SN: 007000001 - 007999999) (1987) ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4348G STARTER MOTOR Parts Diagram

72" Side-Discharge Mower Deck

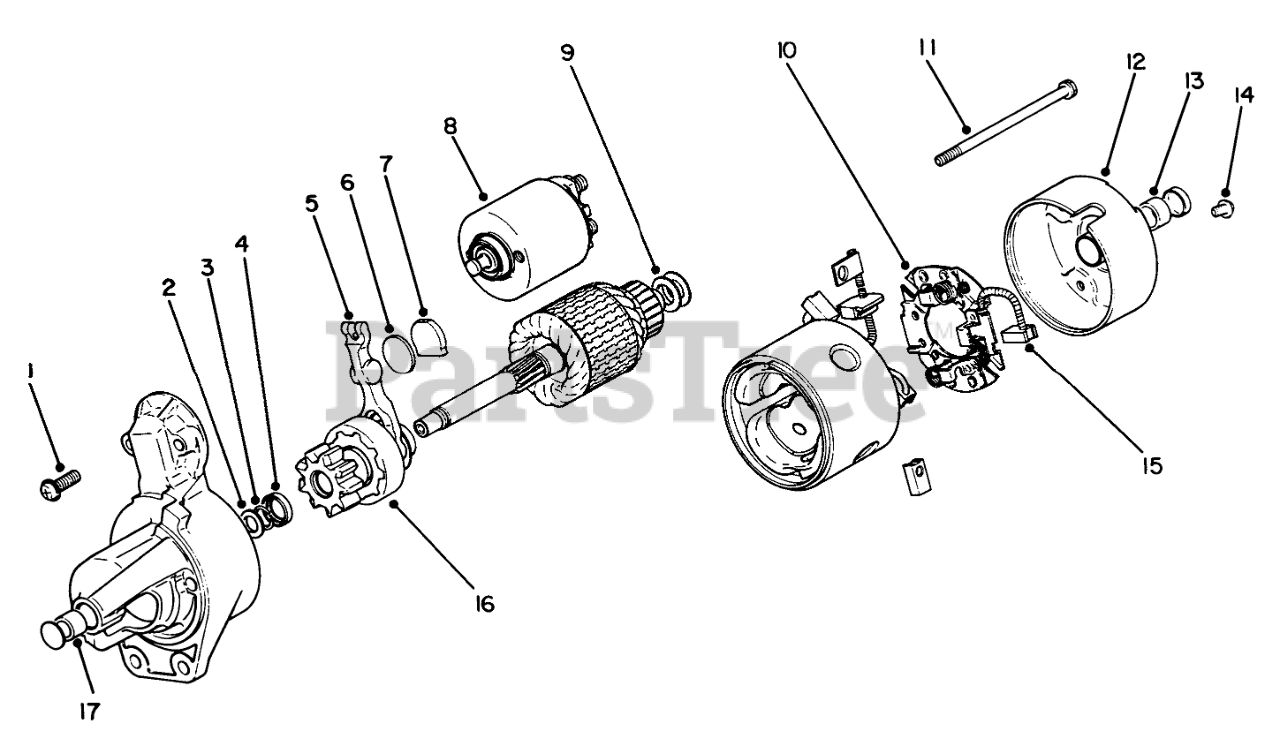

ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4348G STARTER MOTOR Parts Diagram

  • Title

1

Screw-Solenoid

Note: Not Sold Separately

$

$

Not available

2

Washer

Note: Not Sold Separately

$

$

Not available

3

Ring-Pinion Retainer

Note: Not Sold Separately

$

$

Not available

4

Collar-Pinion Stop

Note: Not Sold Separately

$

$

Not available

5

Lever-Shift

Note: Not Sold Separately

$

$

Not available

6

Plate-Wear

Note: Not Sold Separately

$

$

Not available

7

Plug-Rubber

Note: Not Sold Separately

$

$

Not available

Toro 62-2770

Starter Shift Lever Kit (Incl. Ref. #5-7)

Note: Not illustrated

$

$

Not available

8

Toro 62-2720

Starter Solenoid Kit
(Superseded to 72-3930)

$

$

Not available

9

Shim-Armature

Note: Not Sold Separately

$

$

Not available

10

Toro 62-2750

Brush Mounting Kit
(Superseded to 62-2740)

$

$

Not available

11

Bolt

Note: Not Sold Separately

$

$

Not available

12

Cap Assembly

Note: Not Sold Separately

$

$

Not available

Toro 62-2730

Bushing Kit (Incl. Ref. #12, 13 & 17)

Note: Not illustrated

$

$

Not available

14

Screw-Brush Holder

Note: Not Sold Separately

$

$

Not available

Toro 62-2760

Hardware Kit (Incl. Ref. #1-4, 9, 11 & 14)

Note: Not illustrated

$

$

Not available

15

Brush-Positive

Note: Not Sold Separately

$

$

Not available

Toro 62-2740

Starter Brush Kit (Incl. Ref. #15)

Note: Not illustrated

$

$

Not available

16

Starter Clutch Assembly

Note: Not Sold Separately

$

$

Not available
