30662 - Toro 62" Side-Discharge Mower Deck (SN: 079000001 - 079999999) (1997) Counter Balance Assembly Parts Diagram

62" Side-Discharge Mower Deck

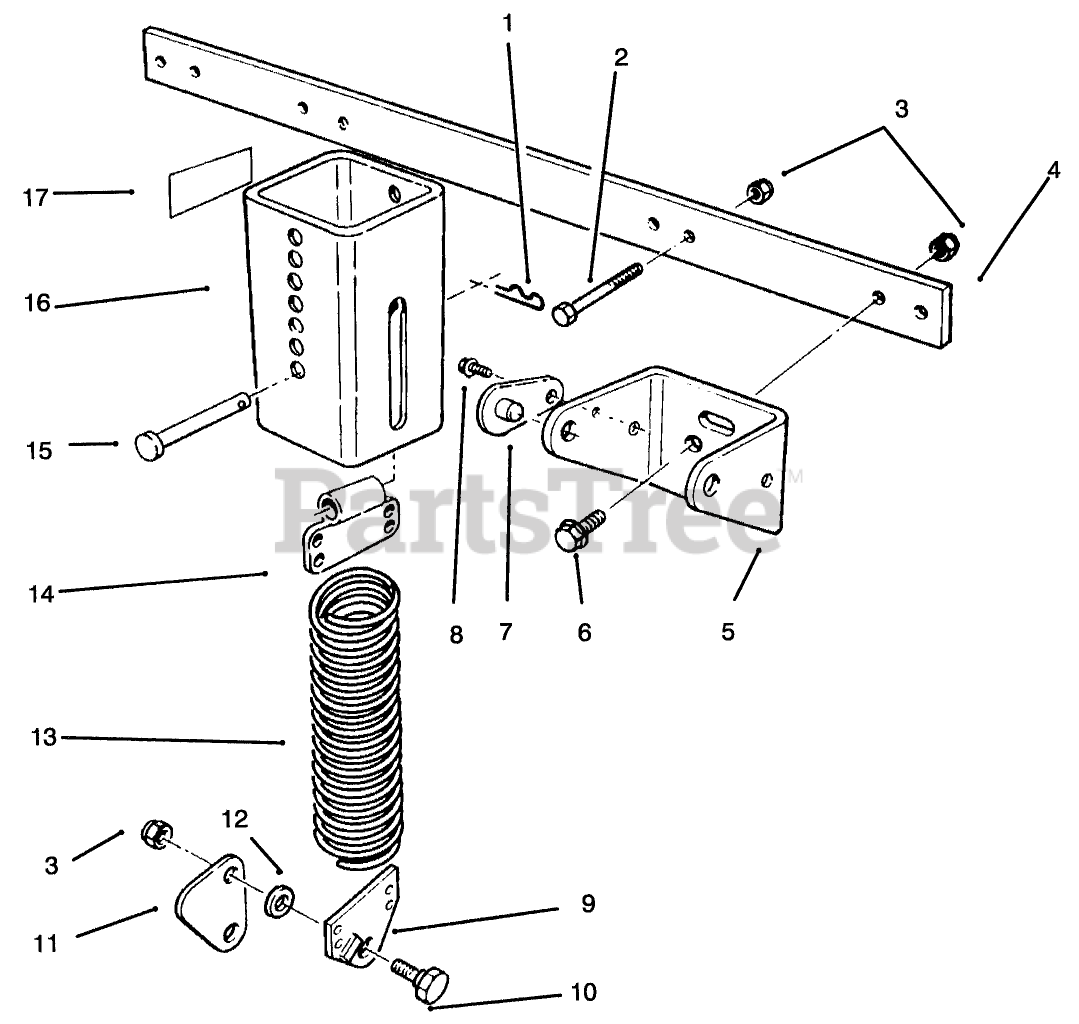

Counter Balance Assembly Parts Diagram

  • Title

1

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

2

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

3

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

4

Toro 66-8210

See Supercession: 66-8210-01
(Superseded to 66-8210-01)

$119.99

$

Usually ships in 3-6 days

0

5

Toro 66-8230

See Supercession: 66-8230-01
(Superseded to 66-8230-01)

$

$

Not available

6

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 19

0

7

Toro 70-7920

PIN-LOCK

$27.99

$

Usually ships in 3-6 days

0

8

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

9

Toro 66-8420

See Supercession: 66-8420-03
(Superseded to 66-8420-03)

$67.99

$

Usually ships in 3-6 days

0

10

Toro 46-3380

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

11

Toro 66-8440

See Supercession: 66-8440-01
(Superseded to 66-8440-01)

$9.99

$

Usually ships in 3-6 days

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 66-8390

See Supercession: 66-8390-03
(Superseded to 66-8390-03)

$45.99

$

Usually ships in 3-6 days

0

Toro 66-8410

See Supercession: 66-8410-03
(Superseded to 66-8410-03)

Note: Not illustrated

$98.99

$

Usually ships in 3-6 days

0

14

Toro 70-7940

See Supercession: 70-7940-03
(Superseded to 70-7940-03)

$55.99

$

Usually ships in 3-6 days

0

15

Toro 283-69

PIN-CLEVIS

$10.99

$

In Stock, only 4 left!

0

16

Toro 70-7970

See Supercession: 99-1298
(Superseded to 99-1298)

$

$

Not available

17

Toro 55-4300

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

Toro 70-8100

DISCONTINUED

Note: Not illustrated

$

$

Not available
