30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) GOVERNOR-ENGINE KOHLER MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

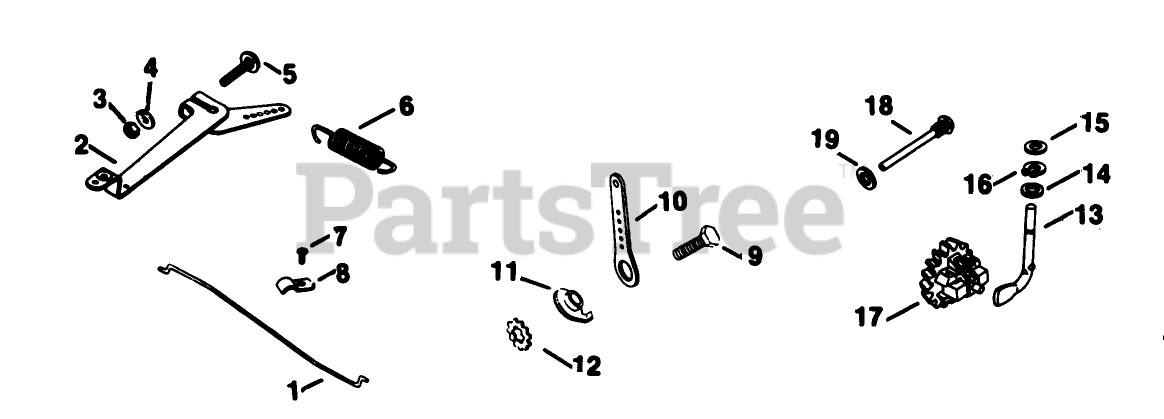

GOVERNOR-ENGINE KOHLER MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

  • Title

1

Toro 52_354_03

Link-Govenor

$

$

Currently unavailable

2

Toro 52_187_02

Arm-Governor

$

$

Currently unavailable

3

Toro x-81-1

Nut

$

$

Currently unavailable

4

Kohler X-25-72

Washer
(Superseded to X-25-72-S)

$3.99

$

In Stock, Qty 11

0

5

Toro 52_211_04

Screw-Round Hd.

$

$

Currently unavailable

6

Toro 52_091_04

Spring-Governor

$

$

Currently unavailable

7

Toro x-67-97

Screw

$

$

Currently unavailable

8

Kohler 235778

Clip
(Superseded to 235778-S)

$10.99

$

Usually ships in 2-5 days

0

9

Kohler X-5-1

Screw-HH
(Superseded to X-5-1-S)

$3.99

$

In Stock, only 1 left!

0

10

Toro 52_119_01

Lever-Speed Control

$

$

Currently unavailable

11

Kohler 234614

Stop-Govenor
(Superseded to 234614-S)

$

$

Not available

12

Kohler X-22-12

Washer-Lock
(Superseded to X-22-12-S)

$3.99

$

Usually ships in 2-5 days

0

13

Toro 52_078_04

Shaft-Govenor

$

$

Currently unavailable

14

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 10

0

15

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 4 left!

0

16

Kohler X-269-28

Retainer-Governor
(Superseded to X-269-28-S)

$3.99

$

Usually ships in 2-5 days

0

17

Kohler A-235743-S

Governor Gear

$78.99

$

Usually ships in 2-5 days

0

18

Kohler 231355

Pin-GovemorStop
(Superseded to 231355-S)

$10.99

$

Usually ships in 2-5 days

0

19

Kohler X-25-12

Washer
(Superseded to X-25-12-S)

$3.49

$

In Stock, only 2 left!

0
