30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) HYDRAULIC SCHEMATIC Parts Diagram

Groundsmaster Rear-Engine Riding Mower

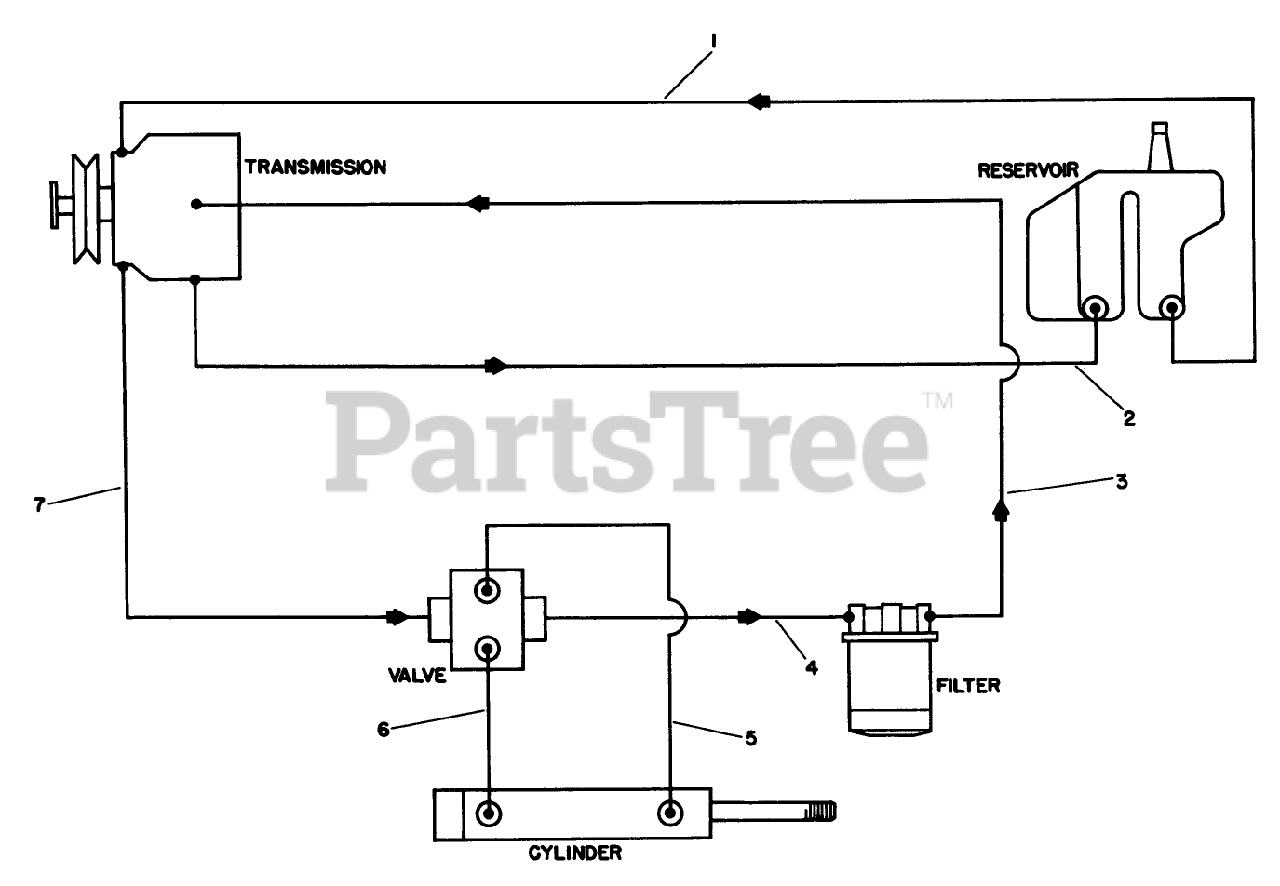

HYDRAULIC SCHEMATIC Parts Diagram

  • Title

1

Toro 54-2600

Hose Assembly-Reservoir to Transmission
(Superseded to 56-3390)

$272.99

$

Usually ships in 3-6 days

0

2

Toro 54-2310

TUBE ASM

$118.99

$

Usually ships in 3-6 days

0

3

Toro 54-2580

HOSE ASM

$

$

Not available

4

Toro 54-2570

HOSE ASM

$

$

Not available

5

Toro 54-2610

HOSE ASM

$98.99

$

Usually ships in 3-6 days

0

6

Toro 54-2620

HOSE ASM

$122.99

$

Usually ships in 3-6 days

0

7

Toro 54-2590

HOSE ASM

$

$

Not available
