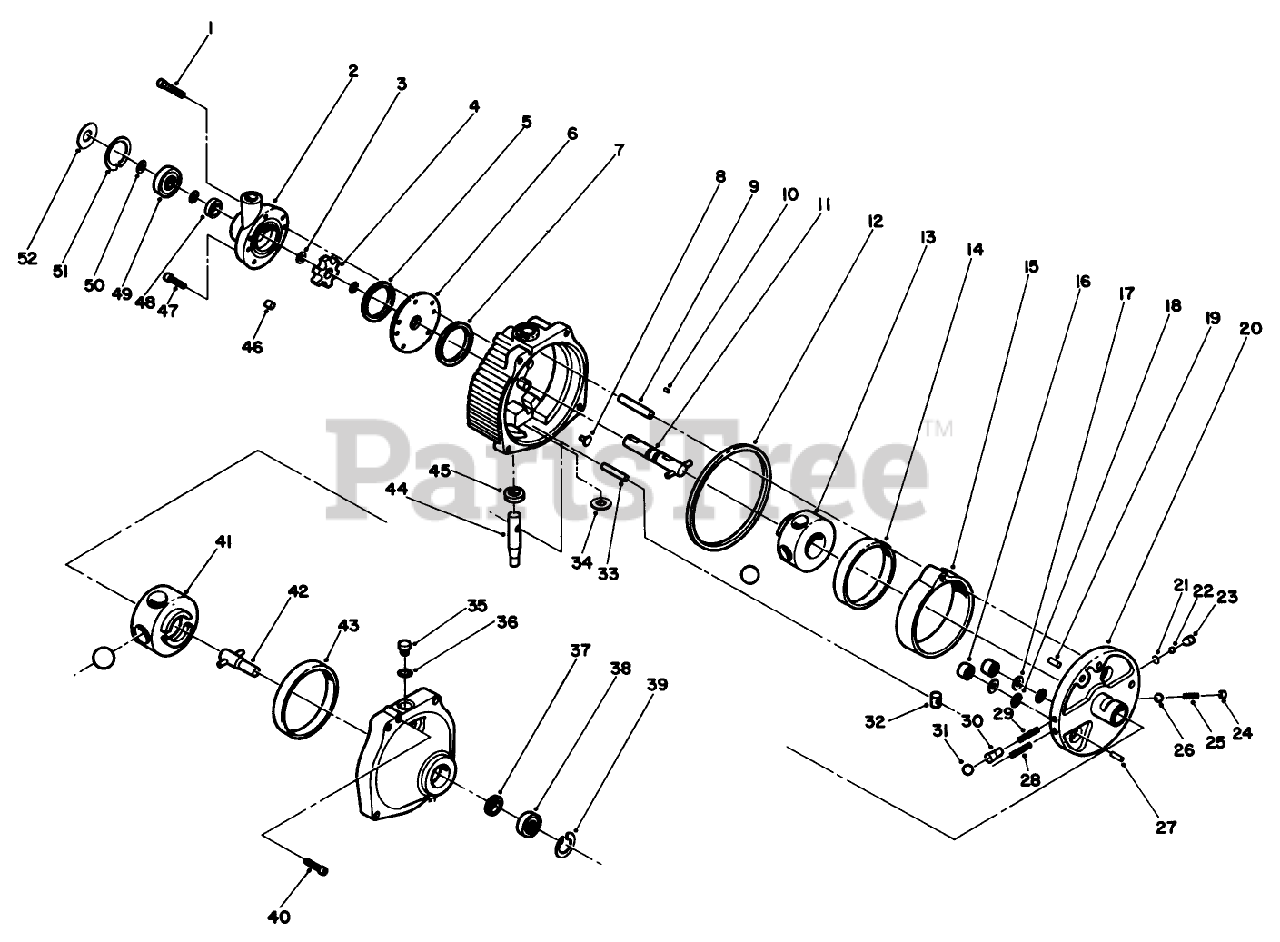

30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) HYDROSTATIC TRANSMISSION Parts Diagram

Groundsmaster Rear-Engine Riding Mower

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

1

Toro 56-2800

CAPSCREW

$

$

Not available

2

Toro 56-2830

Charge Pump (Incl. Ref. #48)

$

$

Not available

3

Toro 56-2840

Snap Ring

$

$

Currently unavailable

4

Toro 56-3120

CARRIER

$194.99

$

Usually ships in 3-6 days

0

5

Toro 56-2850

SEAL

$6.49

$

In Stock, Qty 7

0

6

Toro 56-2860

PLATE

$

$

Not available

7

Toro 56-2870

SEAL

$7.99

$

In Stock, only 2 left!

0

8

Toro 56-2880

BUTTON

$

$

Not available

9

Toro 56-2890

PIN

$

$

Not available

10

Toro 56-2900

PIN

$

$

Not available

11

Toro 56-2910

SHAFT

$

$

Not available

12

Toro 56-2920

SEAL

$

$

Not available

13

Toro 56-2930

ROTOR

$

$

Not available

14

Pump Race

$

$

Not available

15

Toro 56-2940

Cam Ring Assy. (Incl. Ref. #14)

$

$

Not available

16

Toro 56-2950

PISTON

$

$

Not available

17

Toro 56-2960

RING

$5.99

$

Usually ships in 3-6 days

0

18

Toro 56-2970

O-RING

$3.49

$

Usually ships in 3-6 days

0

19

Toro 56-2980

PIN

$

$

Not available

20

Toro 56-2990

Pintle Assembly (Incl. Ref. #16-19 & 21-31)

$3389.99

$

Usually ships in 3-6 days

0

21

Toro 56-3000

RING

$4.49

$

In Stock, only 2 left!

0

22

Toro 56-3010

BALL

$

$

Not available

23

Toro 56-3020

BODY

$

$

Not available

24

Toro 56-3050

PLUG

$

$

Not available

25

Toro 56-3040

SPRING

$

$

Not available

26

Toro 56-3030

BALL

$

$

Not available

27

Toro 56-3060

PIN

$

$

Not available

28

Toro 56-3190

Acc. Valve Spring (Lower)
(Superseded to 56-3180)

$

$

Not available

29

Toro 56-3180

SPRING

$

$

Not available

30

Toro 56-3200

BODY

$

$

Not available

31

Toro 56-3210

BALL

$

$

Not available

32

Toro 56-3170

INSERT

$

$

Not available

33

Toro 56-3160

Dowel

$

$

Currently unavailable

34

Toro 56-3150

Control Shaft Washer

$

$

Currently unavailable

35

Toro 56-3250

"O" Ring Plug Sub-Assembly (Incl. Ref. #36)

$

$

Not available

36

Toro 56-3260

O-RING

$

$

Not available

37

Toro 56-3270

Oil Seal
(Superseded to 56-2820)

$38.99

$

In Stock, only 3 left!

0

38

Toro 56-3280

Bearing
(Superseded to 112602)

$61.99

$

Usually ships in 3-6 days

0

39

Toro 56-3290

RING

$

$

Not available

40

Toro 56-3300

Socket Head Capscrew
(Superseded to 56-3100)

$8.99

$

Usually ships in 3-6 days

0

41

Toro 56-3220

ROTOR

$

$

Not available

42

Toro 56-3230

SHAFT

$

$

Not available

43

Toro 56-3240

RACE

$

$

Not available

44

Toro 56-3140

SHAFT KIT

$

$

Not available

45

Toro 56-3130

SEAL-OIL

$

$

Not available

46

Toro 56-3110

ROLL

$20.99

$

Usually ships in 3-6 days

0

47

Toro 56-3100

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

48

Toro 56-2820

SEAL-OIL

$38.99

$

In Stock, only 3 left!

0

49

Toro 56-2810

BEARING

$204.99

$

Usually ships in 3-6 days

0

50

Toro 56-3090

RING

$4.49

$

In Stock, only 2 left!

0

51

Toro 56-3080

RING
(Superseded to 112653)

$

$

Not available

52

Toro 56-3070

Grass Shield

$

$

Currently unavailable

Toro 56-3310

SEAL KIT

Note: Not illustrated

$98.99

$

Usually ships in 3-6 days

0
