30760 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 00000001 - 09999999) (1980) GAS TANK AND AIR CLEANER ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

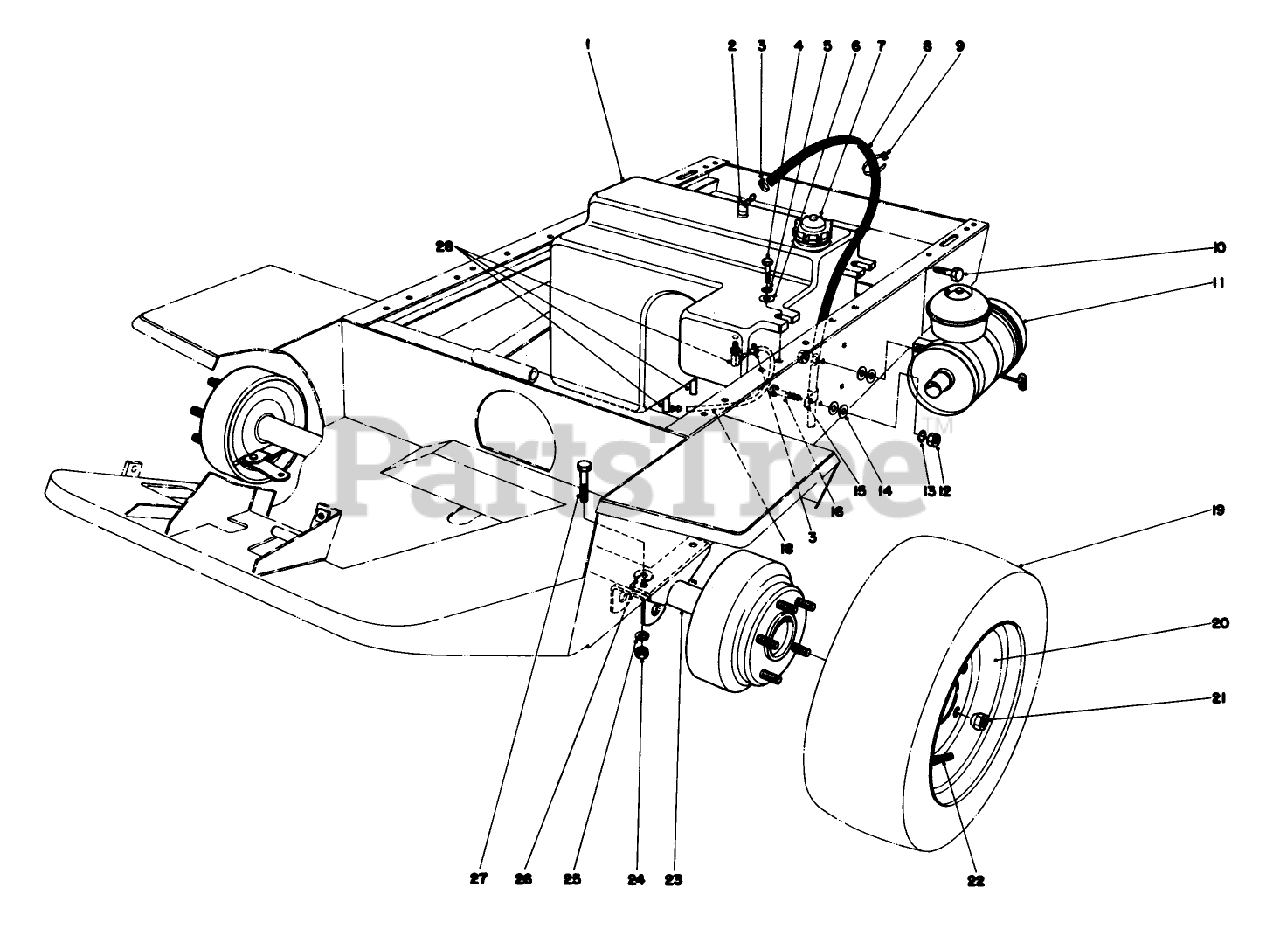

GAS TANK AND AIR CLEANER ASSEMBLY Parts Diagram

  • Title

1

Toro 37-9900

GAS TANK

$

$

Not available

2

Toro 353-705

ELBOW

$

$

Not available

3

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

4

Toro 323-19

SCREW-HH

$1.99

$

In Stock, Qty 11

0

5

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

6

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

7

Toro 37-9540

Gas Cap

$

$

Not available

8

Toro 37-9920

GAS TANK VENT HOSE
(Superseded to 109-0308)

$11.99

$

Usually ships in 3-6 days

0

9

Toro 3290-336

Strap
(Superseded to 3290-379)

$0.99

$

In Stock, only 3 left!

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 8-2329

AIR CLEANER ASM SERV

$

$

Currently unavailable

12

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 2412-41

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

16

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

18

Toro 27-5370

HOSE-FUEL
(Superseded to 110-4101)

$19.99

$

Usually ships in 3-6 days

0

19

Toro 231-87

Tire
(Superseded to 231-103)

$

$

Not available

20

Toro 217-107

WHEEL ASM

$

$

Not available

21

Toro 242-35

NUT-WHEEL

$9.49

$

Usually ships in 3-6 days

0

22

Toro 232-35

VALVE STEM AND CAP ASM
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

23

Toro 27-3580

Axle

$

$

Not available

24

Toro 3217-8

NUT-HEX

$2.49

$

Usually ships in 3-6 days

0

25

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 28-5640

SPECIAL WASHER

$

$

Not available

27

Toro 324-9

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

28

Toro 353-536

FITTING-ELBOW, 90 DEG

$

$

Not available
