31-16K804 (416-8) - Toro Garden Tractor (1988) FLYWHEEL Parts Diagram

Garden Tractor

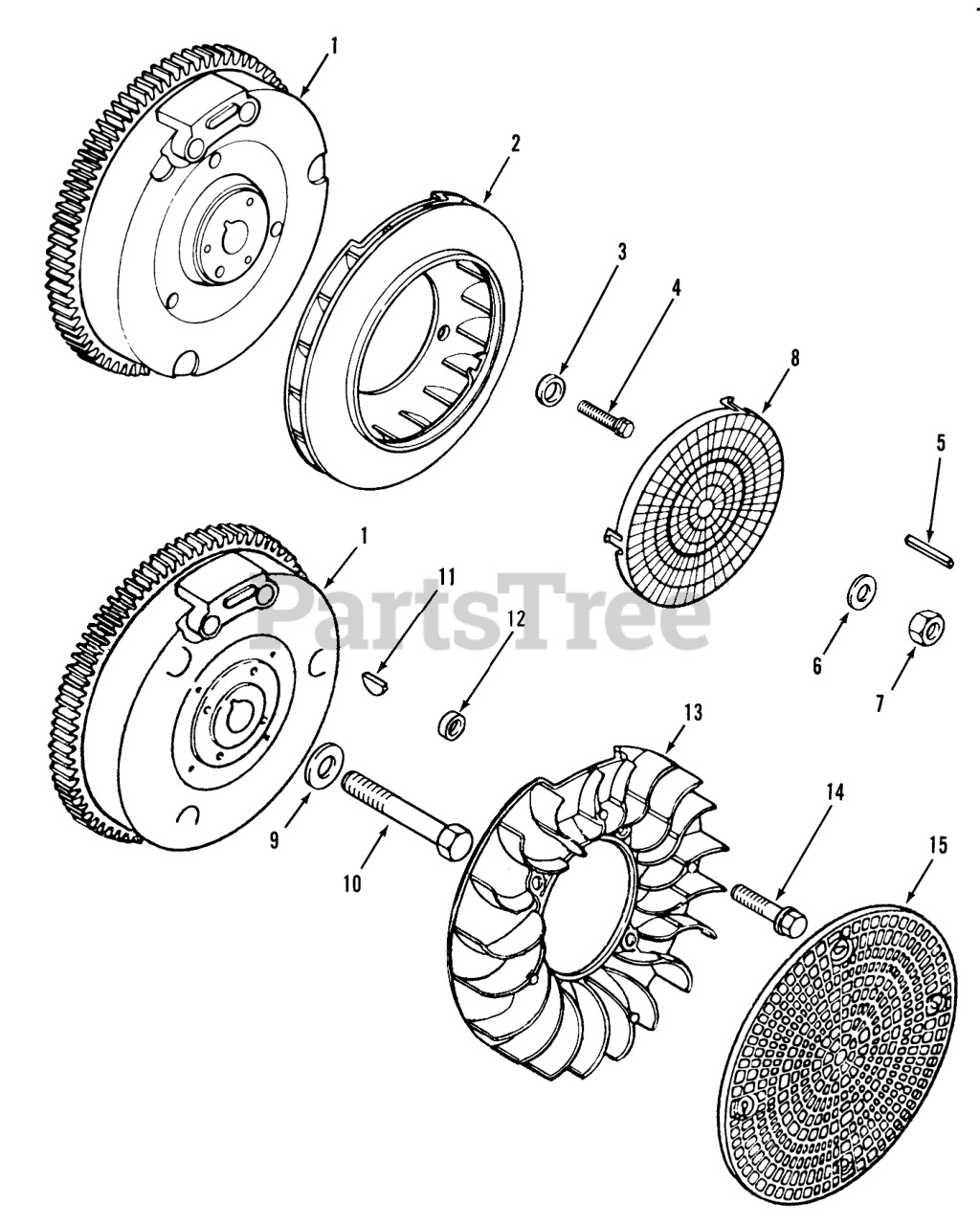

FLYWHEEL Parts Diagram

  • Title

1

Toro KH10160

Flywheel 308 Only

$

$

Not available

Toro KH10264

Flywheel 310

$

$

Not available

Toro KH10263

Flywheel

$

$

Not available

2

Toro KH10203

Fan 308 Only

$

$

Not available

3

Toro KH10133

Spacer 1/4 ID x 3/8 OD 308 Only

$

$

Not available

4

Toro KH10104

Hex Wash. Hd. Screw 1/4-20 x 1/2 308 Only

$

$

Not available

5

Toro KH10578

Sq. Key 3/16 x 1-3/8 308 Only

$

$

Not available

6

Toro KH10566

Plain Washer 5/8 308 Only

$

$

Not available

7

Toro KH10115

Hex Nut 5/8-18 308 Only

$

$

Not available

8

Toro KH10205

Grass Screen 308 Only

$

$

Not available

9

Toro KH10436

Plain Washer 13/32 ID, 1-3/8 OD

$

$

Not available

10

Toro KH10098

Hex. Mach. Screw 3/8-24 x 1-1/8

$

$

Not available

11

Toro KH10588

Key-Woodruff

$

$

Not available

12

Toro KH10112

Spacer

$

$

Not available

13

Toro KH10124

Fan

$

$

Not available

14

Toro KH10107

Screw-Hex. Hd.

$

$

Not available

15

Toro KH10126

Screen

$

$

Not available
