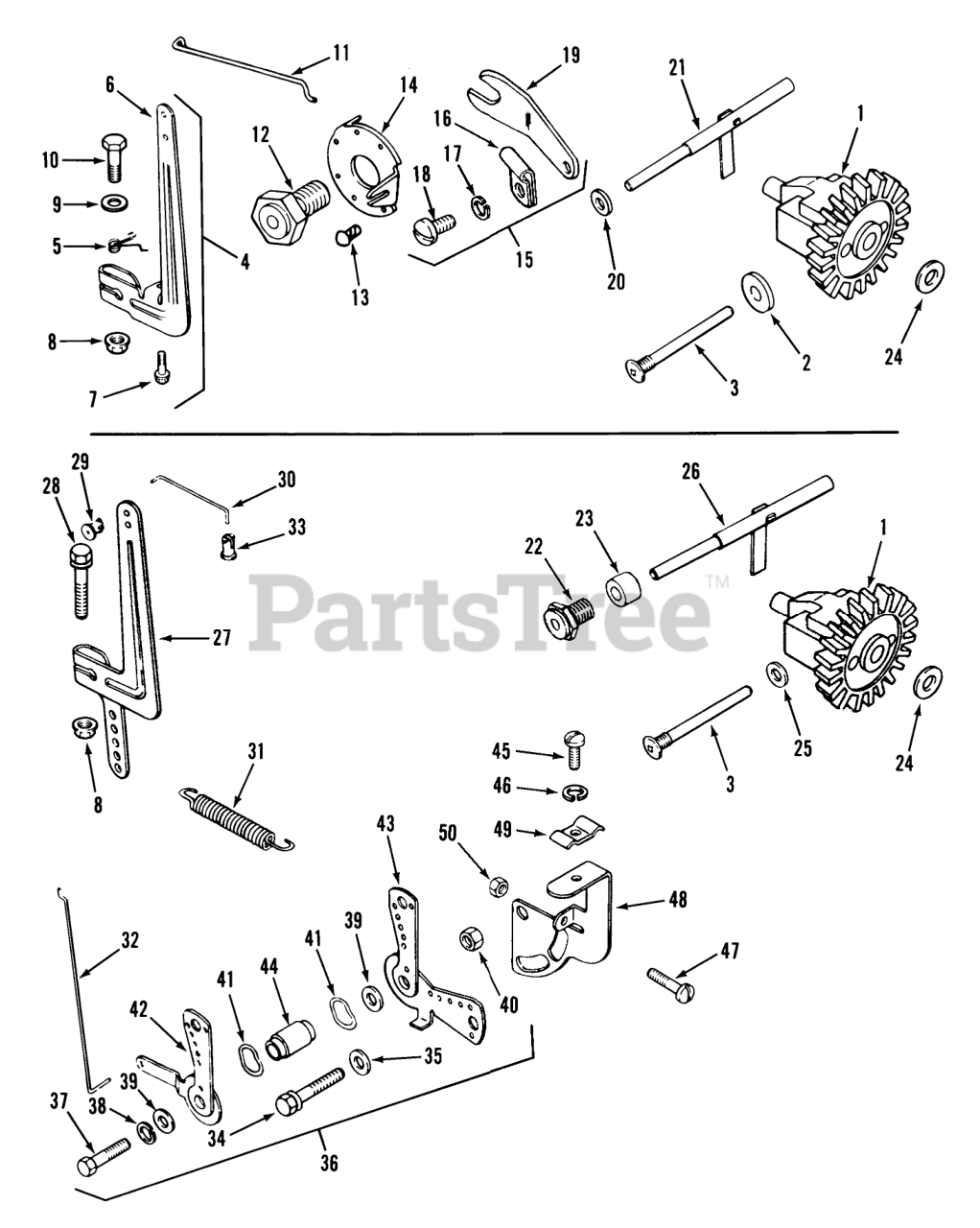

31-16K804 (416-8) - Toro Garden Tractor (1988) GOVERNOR LINKAGE Parts Diagram

Garden Tractor

GOVERNOR LINKAGE Parts Diagram

  • Title

1

Toro KH10660

Governor Gear Kit (includes 24)

$

$

Not available

2

Toro KH10565

Plain Washer 1/4 308 Only

$

$

Not available

3

Toro KH10035

Govenor Stop Pin

$

$

Not available

4

Toro KH10536

Governor Lever Assy 308 Only (includes items 5 thru 10)

$

$

Not available

5

Toro KH10043

Governor Spring 308 Only

$

$

Not available

6

Toro KH10042

Governor Lever 308 Only

$

$

Not available

7

Toro KH10603

Hex Wash. Hd. Screw 8-32 x 1/4 308 Only

$

$

Not available

8

Toro KH10629

Palnut

$

$

Not available

9

Toro KH10570

Washer

$

$

Not available

10

Toro KH10602

H.C. Screw 1/4-20 x 1 308 Only

$

$

Not available

11

Toro KH10656

Governor Linkage 308 Only

$

$

Not available

12

Toro KH10032

Governor Shaft Bushing 308 Only

$

$

Not available

13

Toro KH10604

Drive Screw #2 308 Only

$

$

Not available

14

Toro KH10013

Regulating Disc 308 Only

$

$

Not available

15

Toro KH10537

Speed Control Bracket Assembly 308 Only (includes 16 thru 19)

$

$

Not available

16

Toro KH10008

Cable Spring Clip 308 Only

$

$

Not available

17

Toro KH10554

Lockwasher #6 308 Only

$

$

Not available

18

Toro KH10592

Sltd. Pan Hd. Screw 8-32 x 3/8 308 Only

$

$

Not available

19

Toro KH10046

Speed Control Bracket 308 Only

$

$

Not available

20

Toro KH10568

Plain Washer 1/4

$

$

Not available

21

Toro KH10033

Governor Cross Shaft 308 Only

$

$

Not available

22

Toro KH10070

Bushing

$

$

Not available

23

Toro KH10585

Spacer

$

$

Not available

24

Toro KH10087

Washer

$

$

Not available

25

Toro KH10138

Washer

$

$

Not available

26

Toro KH10538

Governor Cross Shaft Kit

$

$

Not available

27

Toro KH10295

Governor Lever

$

$

Not available

28

Toro KH10626

Screw

$

$

Not available

29

Toro KH10307

White Bushing 310, 312, 414, 416

$

$

Not available

30

Toro KH10288

Linkage (Governor to Carb.)

$

$

Not available

31

Toro KH10296

Spring (Governor to Cab.)

$

$

Not available

32

Toro KH10287

Choke Linkage (Carb. to Choke Shaft)

$

$

Not available

33

Toro KH10125

Yellow Bushing 310, 312, 414, 416

$

$

Not available

34

Toro KH10545

Screw

$

$

Not available

35

Toro KH10570

Washer

$

$

Not available

36

Toro KH10291

Choke Lever Assy (includes items 37 thru 44) 310, 312, 414, 416

$

$

Not available

37

Toro KH10600

Screw

$

$

Not available

38

Toro KH10556

Washer-Lock

$

$

Not available

39

Toro KH10569

Washer

$

$

Not available

40

Toro KH10624

Nut

$

$

Not available

41

Toro KH10152

Washer

$

$

Not available

42

Toro KH10293

Choke Control Lever

$

$

Not available

43

Toro KH10294

Lever-Throttle Control

$

$

Not available

44

Toro KH10302

Space

$

$

Not available

45

Toro KH10551

F.H.M. Screw #10-24 x 1/2

$

$

Not available

46

Toro KH10555

Lockwasher #10

$

$

Not available

47

Toro KH10040

Screw

$

$

Not available

48

Toro KH10303

Bracket-Clutch Control

$

$

Not available

49

Toro KH10308

Clamp

$

$

Not available

50

Toro KH10619

Nut

$

$

Not available
