31501 - Toro Snow Pup Snow Thrower (SN: 001000001 - 001999999) (1971) CARBURETOR MODEL NO. 631394 Parts Diagram

Snow Pup Snow Thrower

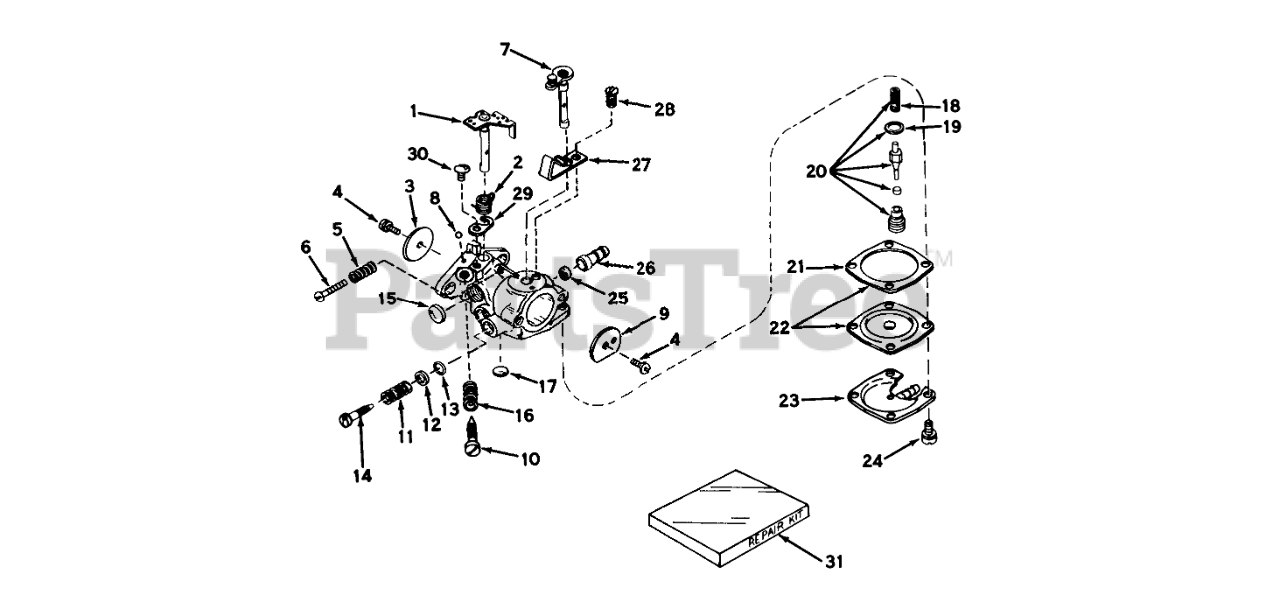

CARBURETOR MODEL NO. 631394 Parts Diagram

  • Title
1

Tecumseh 631385

Shaft & Lever Assy., Throttle

$

$

Currently unavailable

2

Tecumseh 631066

Spring Return

$

$

Not available

3

Tecumseh 630733

Shutter, Throttle
(Superseded to 631036)

$1.99

$

In Stock, only 1 left!

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 17

0

5

Tecumseh 630766

Spring-Tension

$1.99

$

Usually ships in 3-12 days

0

6

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, only 2 left!

0

7

Tecumseh 631130

Shaft & Lever Assy., Choke

$

$

Currently unavailable

8

Tecumseh 631335

Shot, Lead

$

$

Currently unavailable

9

Tecumseh 31837

Shutter-Choke

$1.99

$

In Stock, only 1 left!

0

10

Tecumseh 631387

Screw, Idle Adjustment

$

$

Currently unavailable

11

$1.99

$

In Stock, Qty 12

0

12

$1.99

$

In Stock, Qty 17

0

13

Tecumseh 630740

"O"Ring

Note: Indicates Items Included in Repair Kit part no. 631389.

$2.49

$

In Stock, Qty 16

0

14

Tecumseh 630898

Screw Main Adjustment

$2.49

$

In Stock, Qty 9

0

15

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Indicates Items Included in Repair Kit part no. 631389.

$1.99

$

In Stock, Qty 9

0

16

Tecumseh 631345

Spring, IdleAdjustm. Screw

$

$

Currently unavailable

17

Tecumseh 630746

Plug Welch
(Superseded to 632554)

Note: Indicates Items Included in Repair Kit part no. 631389.

$1.99

$

Usually ships in 3-12 days

0

18

Tecumseh 631049

Spring-Valve

$1.99

$

In Stock, only 1 left!

0

19

Tecumseh 630742

Gasket-Valve Seat

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 631388

Inlet Needle, Seat, Spring & Gasket Assy.(lncl.Nos.18 & 19)
(Superseded to 630932A)

Note: Indicates Items Included in Repair Kit part no. 631389.

$9.49

$

In Stock, Qty 16

0

21

Tecumseh 630750

Gasket-Diaphragm
(Superseded to 630750A)

$4.49

$

In Stock, only 3 left!

0

22

Tecumseh 630978

Diaphragm Assy. (Incl. No. 21)

Note: Indicates Items Included in Repair Kit part no. 631389.

$5.99

$

In Stock, Qty 18

0

23

Tecumseh 32185

63561/33165A O"HITC

$10.99

$

In Stock, only 1 left!

0

24

Tecumseh 650545

Screw, Diaphragm Cover

$1.99

$

Usually ships in 3-12 days

0

25

Tecumseh 631201

Valve Check

$21.99

$

Usually ships in 3-12 days

0

26

Tecumseh 31838

Fitting, Fuel inlet
(Superseded to 632164)

$3.99

$

In Stock, only 1 left!

0

27

Tecumseh 631048

Spring, Detent

$

$

Currently unavailable

28

Tecumseh 650569

Screw Detent spring

$1.49

$

Usually ships in 3-12 days

0

29

Tecumseh 630955

Retainer, Throttle Shaft

$

$

Not available

30

Tecumseh 650569

Screw Detent spring

$1.49

$

Usually ships in 3-12 days

0

31

Tecumseh 631389

Repair Kit
(Superseded to 631893A)

$23.99

$

In Stock, Qty 18

0

1

Tecumseh 610591

Dust Cover Spring

$

$

Currently unavailable

2

Tecumseh 610589

Dust Cover

$

$

Currently unavailable

3

Tecumseh 610590

Dust Cover Gasket

$

$

Currently unavailable

4

Tecumseh 610587

Hose-Primer 209543

$31.99

$

Usually ships in 3-12 days

0

5

Tecumseh 610657

Coil Assy.

$

$

Currently unavailable

6

Tecumseh 610585

Gasket 209542

$

$

Currently unavailable

7

Tecumseh 610593

Condenser Screw

$1.99

$

Usually ships in 3-12 days

0

8

Tecumseh 610588

Condenser Assy.

$16.99

$

Usually ships in 3-12 days

0

9

Tecumseh 610594

Sealing Washer

$

$

Currently unavailable

10

Tecumseh 610658

STRAP S
(Superseded to 30554)

$

$

Not available

11

Tecumseh 610660

RETAINER WASHER(SET OF 10)

$

$

Currently unavailable

12

Tecumseh 610249

Fuel Hose
(Superseded to 29181)

$

$

Not available

13

Tecumseh 610251

Fuel Tank

$

$

Currently unavailable

14

Tecumseh 610274

Flatwasher

$

$

Currently unavailable

15

$

$

Not available

16

$

$

Currently unavailable

17

Tecumseh 610592

Cam Felt

$

$

Currently unavailable
