32-10BE02 (210-H) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) TRANSMISSION ASSEMBLY (210-H & 212-H) Parts Diagram

Lawn Tractor

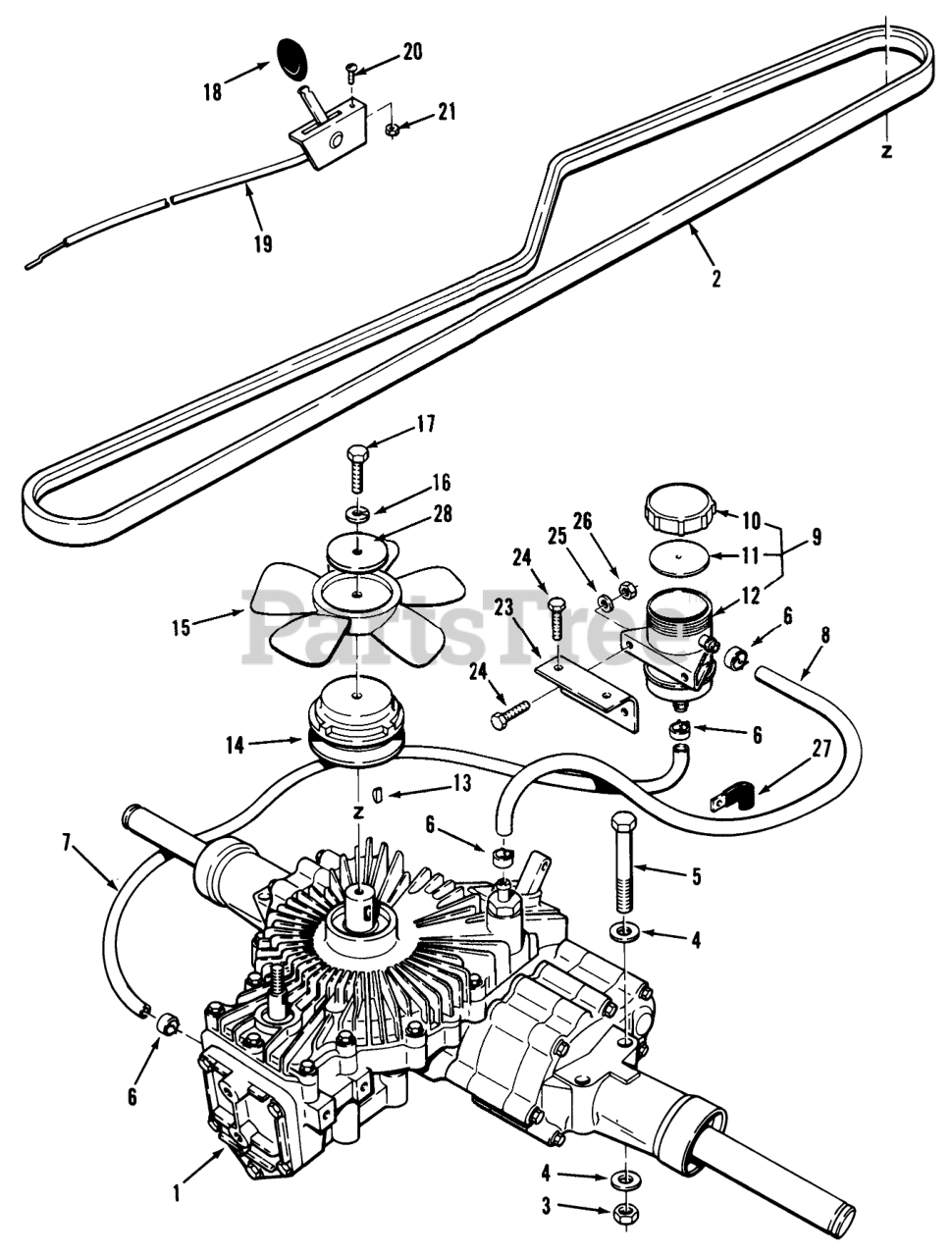

TRANSMISSION ASSEMBLY (210-H & 212-H) Parts Diagram

  • Title

1

Transmission Assembly (Eaton Model 750-032)

$

$

Not available

2

Toro 114433

BELT V

$46.99

$

Usually ships in 3-6 days

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 19

0

6

Toro 116180

CLAMP

$

$

Not available

7

Toro 114409

S/A 9" OF 114702

$

$

Not available

8

Toro 114693

S/A 27" OF 114702

$

$

Not available

9

Toro 79-1100

Reservoir Assembly (Incl. Ref. #10-12)

$

$

Not available

10

Toro 114562

Cover
(Superseded to 114028)

$25.05

$

In Stock, only 2 left!

0

11

Toro 114563

COVER GASKET

$20.99

$

In Stock, only 1 left!

0

12

Toro 114564

RESERVOIR

$

$

Not available

13

Toro 937222

HARD HI PRO KEY

$3.49

$

In Stock, Qty 20+

0

14

Toro 78-2870

PULLEY-HYDRO

$

$

Not available

15

Toro 114638

BLADE-FAN

$

$

Not available

16

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0

17

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

18

Toro 108917

KNOB-THROTTLE

$2.99

$

In Stock, only 2 left!

0

19

Toro 116126

CABLE-PUSH VALVE

$

$

Not available

20

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

21

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

23

Toro 114400

BRKT-RESERVOIR MT R

$

$

Not available

24

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

28

Toro 103995

WASHER

$9.49

$

In Stock, only 4 left!

0
