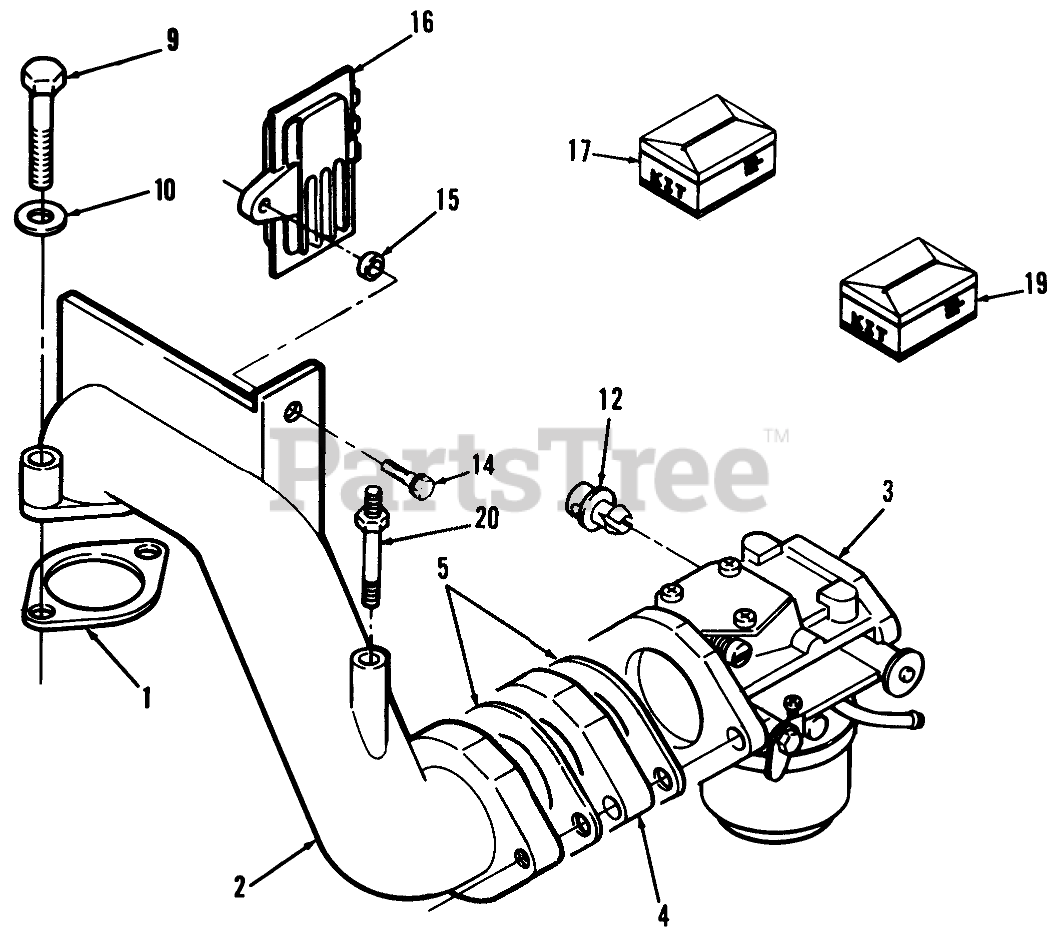

32-12OE02 (212-H) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) 12HP ENGINE CARBURETOR ASSEMBLY Parts Diagram

Lawn Tractor

12HP ENGINE CARBURETOR ASSEMBLY Parts Diagram

  • Title
1

Toro NN10666

Gasket
(Superseded to 93-9816)

$

$

Not available

2

Toro NN10818

Elbow-Intake
(Superseded to NN10667)

$

$

Not available

3

Toro NN10668

CARBURETOR

$501.99

$

Usually ships in 3-6 days

0

4

Toro NN10669

INSULATOR

$

$

Not available

5

Toro NN10670

Gasket
(Superseded to 93-9816)

$

$

Not available

9

Toro 79-5820

SCR-HHC (M8X50)

$

$

Not available

10

Toro 79-5830

WASHER-FLAT (M8)

$

$

Not available

12

Toro NN10674

Clip
(Superseded to 92-5920)

$

$

Not available

14

Toro NN10792

SCHWH 1/4-20X 7/8 SB

$

$

Not available

15

Toro NN10218

Bushing
(Superseded to 57-9120)

$8.49

$

Usually ships in 3-6 days

0

16

Toro NN10794

Regulator
(Superseded to 117-2742)

$256.99

$

In Stock, only 2 left!

0

17

Toro NN10906

FLOAT-KIT

$163.99

$

Usually ships in 3-6 days

0

19

Toro NN10907

CARB-REBUILD KIT

$

$

Not available

20

$

$

Not available
