32-12OE02 (212-H) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) 12HP ENGINE GOVERNOR LINKAGE & COVER ASSEMBLY Parts Diagram

Lawn Tractor

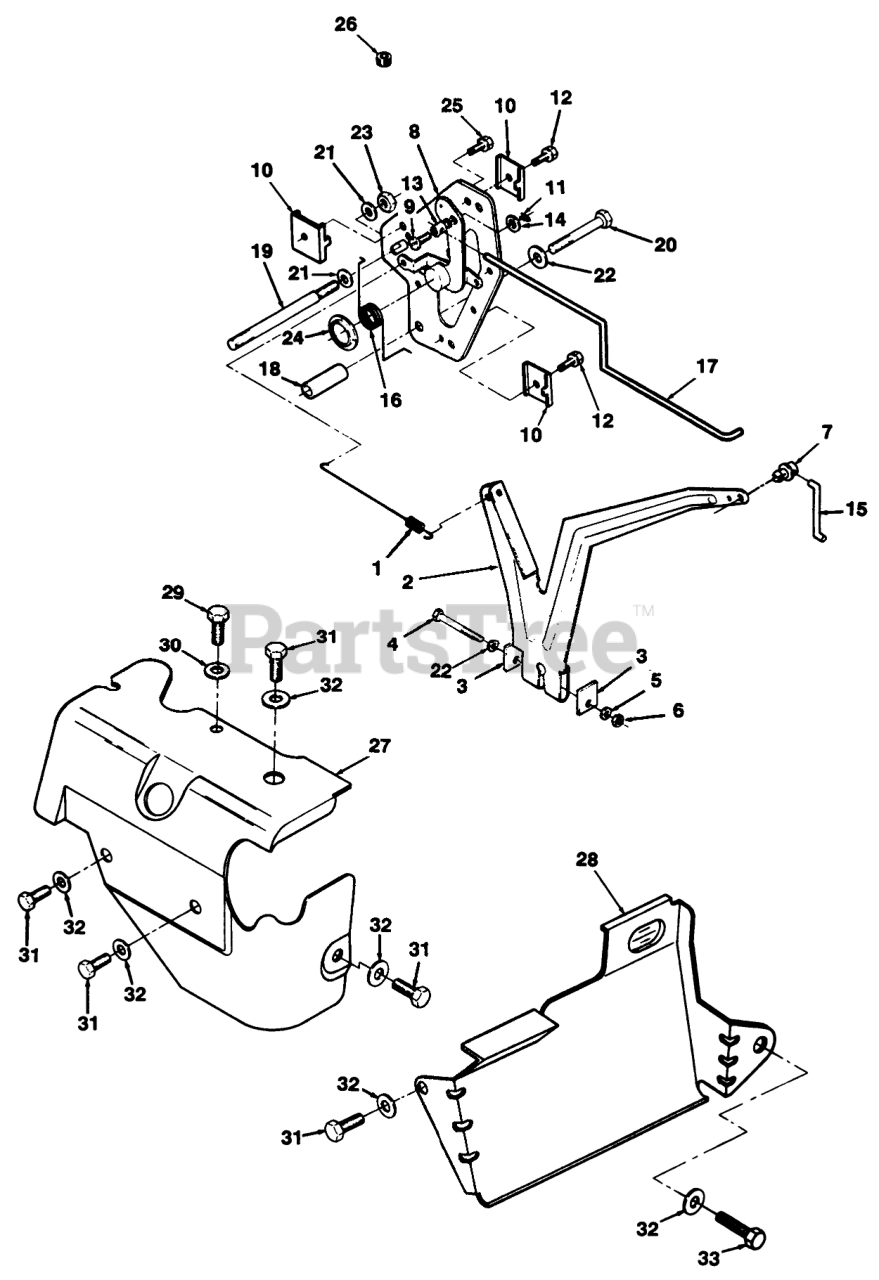

12HP ENGINE GOVERNOR LINKAGE & COVER ASSEMBLY Parts Diagram

  • Title

1

Toro NN10657

SPRING-GOVERNOR

$

$

Not available

2

Toro NN10647

LEVER-GOVERNOR

$

$

Not available

3

Toro NN10816

WASHER

$

$

Not available

4

Toro NN10648

HHCS-M8 X 35MM

$

$

Not available

5

Toro NN10740

WASHER

$

$

Not available

6

Toro NN10768

Nut
(Superseded to 92-5935)

$

$

Not available

7

Toro NN10674

Clip
(Superseded to 92-5920)

$

$

Not available

8

Toro NN10651

PLATE-ASS'Y THROTTLE

$

$

Not available

9

Toro NN10652

HHMS #8-32X3/8"

$

$

Not available

10

Toro NN10653

Plug-Pipe
(Superseded to NN10783)

$

$

Not available

11

Toro 59-0720

PIN-COTTER

$

$

Not available

12

Toro 72-3900

SCREW-TAPPING

$7.99

$

Usually ships in 3-6 days

0

13

Toro NN10656

SWIVEL-CHOKE LEVER

$

$

Not available

14

Toro 59-0850

Washer

$

$

Not available

15

Toro NN10658

LINK-THROTTLE

$

$

Not available

16

Toro NN10654

SPRING-CHOKE LINKAGE

$

$

Not available

17

Toro NN10659

LINK-CHOKE

$

$

Not available

18

Toro NN10660

SPACER

$

$

Not available

19

Toro NN10661

STUD

$

$

Not available

20

Toro NN10817

SCREW

$

$

Not available

21

Toro 82-1340

WASHER-FLAT

$4.99

$

Usually ships in 3-6 days

0

22

Toro 82-1350

WASHER-FLAT

$

$

Not available

23

Toro NN10663

NUT-HEX M6

$

$

Not available

24

Toro NN10344

Retaining Ring
(Superseded to 82-1200)

$

$

Not available

25

Toro NN10785

STFHWH 12-24 X 1"

$

$

Not available

26

Toro NN10683

Plug
(Superseded to NN10770)

$

$

Not available

27

Toro NN10722

HSG-CYL AIR

$

$

Not available

28

Toro NN10723

Air Deflector
(Superseded to NN10801)

$

$

Not available

29

Toro NN10725

HHCS-M6 X 10MM

$

$

Not available

30

Toro 82-1340

WASHER-FLAT

$4.99

$

Usually ships in 3-6 days

0

31

Toro NN10726

HHCS-M8 X 10MM

$

$

Not available

32

Toro 82-1350

WASHER-FLAT

$

$

Not available

33

Toro NN10727

HHCS-M8 X 16MM

$

$

Not available
