33-08X301 (108-R) - Toro Rear-Engine Riding Mower (1985) ELECTRICAL SYSTEM-RECOIL START Parts Diagram

Rear-Engine Riding Mower

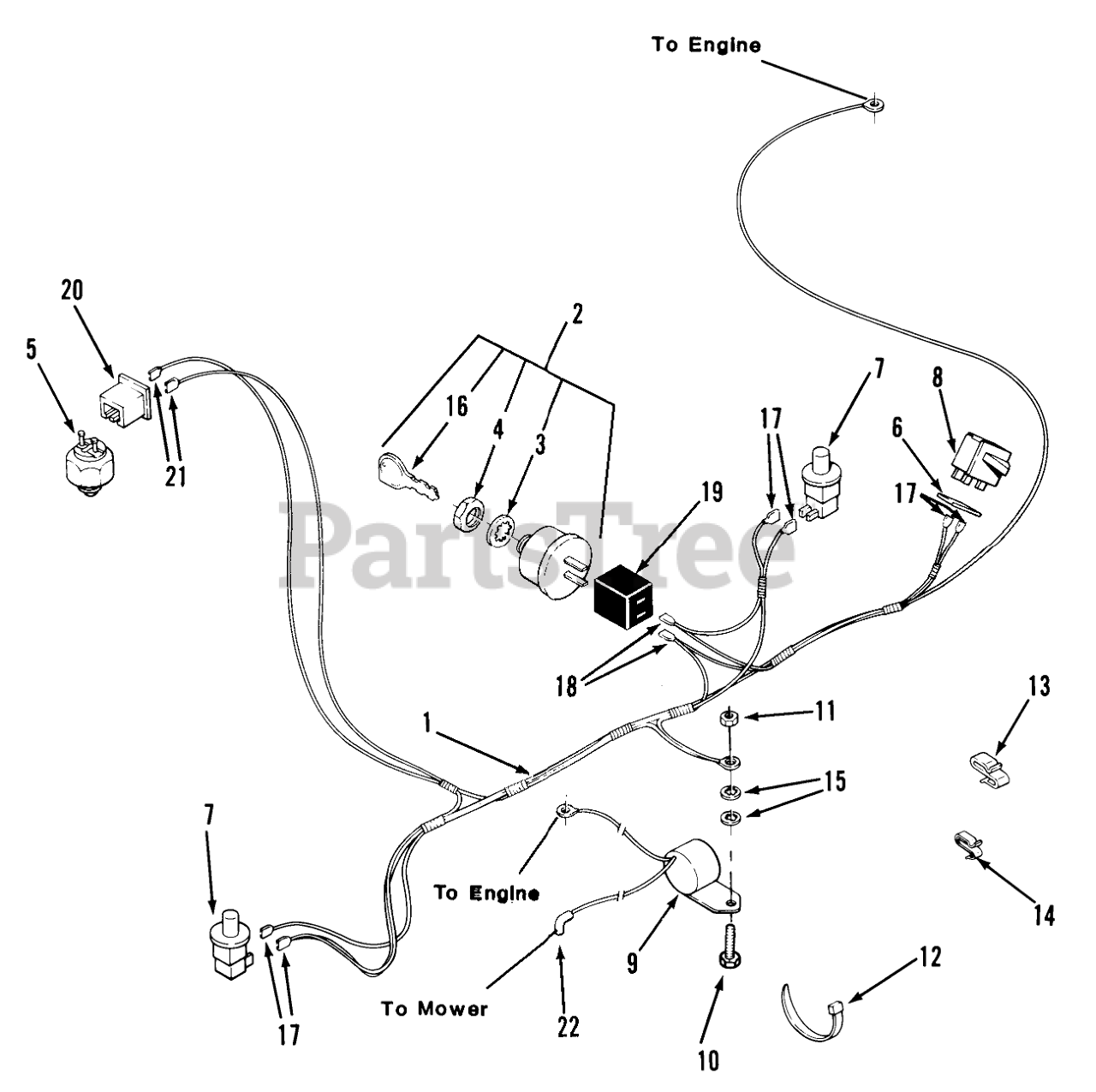

ELECTRICAL SYSTEM-RECOIL START Parts Diagram

  • Title

1

Toro 111132

WIRING HARNESS

$

$

Not available

2

Toro 108757

SWITCH-IGNITION

$

$

Not available

3

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 4 left!

0

4

Toro 101884

NUT

$7.49

$

In Stock, only 2 left!

0

5

Toro 105877

SWITCH-INTERLOK CLUT
(Superseded to 38-0430)

$61.99

$

Usually ships in 3-6 days

0

6

Toro 110502

SHIELD-DIRT SPST

$7.99

$

Usually ships in 3-6 days

0

7

Toro 109329

SWITCH (N.C.)

$

$

Not available

8

Toro 110873

SWITCH

$

$

Not available

9

Toro 110935

INTERLOCK MODULE

$

$

Not available

10

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

11

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

12

Toro 100571

PLASTIC TIE

$

$

Not available

13

Toro 519337

CLIP-CABLE

$1.99

$

Usually ships in 3-6 days

0

14

Toro 3023

SPEED CLIP

$

$

Not available

15

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available

16

Toro 7262

Key-EL
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 13

0

17

Toro 518077

Terminal

$

$

Currently unavailable

18

Toro 105306

TERMINAL-TAB RCPT

$3.49

$

Usually ships in 3-6 days

0

19

Toro 106039

Conn. Body-Part of 2

$

$

Not available

20

Toro 106035

Connector Housing M

$

$

Not available

21

Toro 102651

Terminal

$

$

Not available

22

Toro 518246

Terminal Part of 5

$

$

Not available
