33-08X301 (108-R) - Toro Rear-Engine Riding Mower (1985) FRONT AXLE AND STEERING Parts Diagram

Rear-Engine Riding Mower

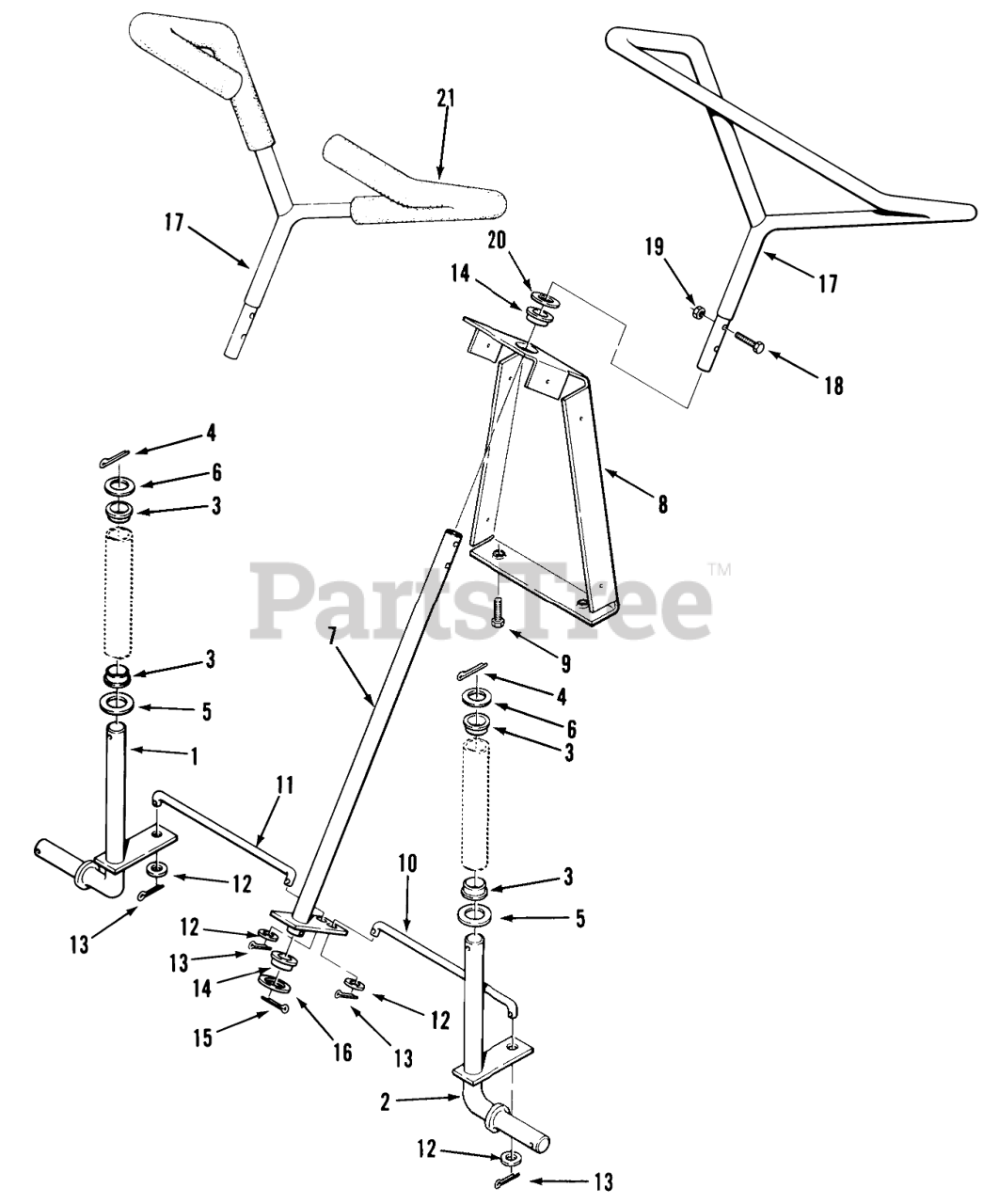

FRONT AXLE AND STEERING Parts Diagram

  • Title

1

Toro 110314

SPINDLE ASSY RH R

$169.99

$

Usually ships in 3-6 days

0

2

Toro 110313

SPINDLE ASSY LH R

$169.99

$

Usually ships in 3-6 days

0

3

Toro 111102

BUSHING

$3.49

$

Usually ships in 3-6 days

0

4

Toro 932018

Cotter Pin
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 20+

0

5

Toro 920015

Washer
(Superseded to 3256-28)

$3.49

$

In Stock, Qty 20+

0

6

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

7

Toro 110317

Steering Shaft Assy

$

$

Not available

8

Toro 110320

SUPPORT-STG UPPER B

$

$

Not available

Toro 110923

SUPT STRG UPPER B

$

$

Not available

Toro 110924

SUPT STRG UPPER B

$

$

Not available

9

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

In Stock, only 2 left!

0

10

Toro 110321

LH TIE ROD R

$

$

Not available

11

Toro 110322

RH TIE ROD R

$

$

Not available

12

Toro 920224

Washer-3/8

$

$

Currently unavailable

13

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

14

Toro 110324

BEARING

$

$

Not available

15

Toro 932018

Cotter Pin
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 20+

0

16

Toro 109262

WASHER-FLAT

$3.49

$

In Stock, only 2 left!

0

17

Toro 110384

Steering Wheel
(Superseded to 112303)

$

$

Not available

Toro 110889

STEERING WHEEL

$276.99

$

Usually ships in 3-6 days

0

18

Toro 908006

Bolt
(Superseded to 321-8)

$3.99

$

In Stock, Qty 20+

0

19

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

20

Toro 920215

Washer
(Superseded to 9202154)

$1.99

$

In Stock, only 2 left!

0

21

Toro 110892

Grips-Steering Wheel 112-6

$

$

Not available
