34-30BC01 - Toro Edger (1989) LAWN EDGER AND TRIMMER Parts Diagram

Edger

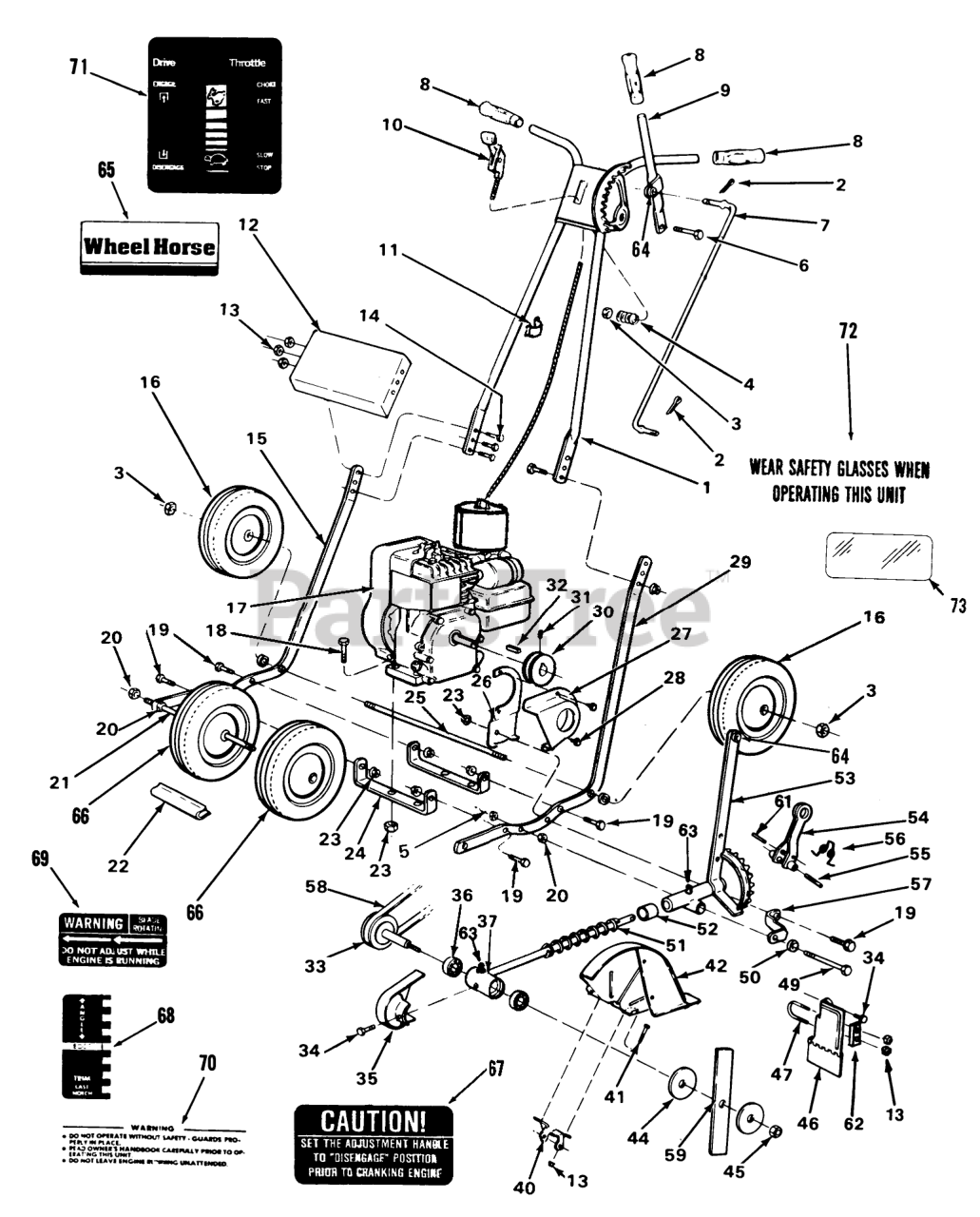

LAWN EDGER AND TRIMMER Parts Diagram

  • Title

1

Toro 112055

Handle

$

$

Not available

2

Toro 932015

Cotter Pin 1/8 x 1/2
(Superseded to 327-28)

$18.99

$

In Stock, only 3 left!

0

3

Toro 109996

NUT-JAM(7/16-14)

$

$

Not available

4

Toro 112056

SPRING

$

$

Not available

5

Toro 112050

Plastic Washer

$

$

Currently unavailable

6

Toro 908050

Hex Bolt 7/16-14 x 2

$

$

Currently unavailable

7

Toro 112057

Clutch and Depth Rod

$

$

Not available

8

Toro 111966

Grip

$

$

Not available

9

Toro 112058

Clutch and Depth Lever

$

$

Not available

10

Toro 111969

CONTROL THROTTLE

$

$

Not available

11

Toro 112059

CLIP THROTTLE CABLE

$4.99

$

Usually ships in 3-6 days

0

12

Toro 111971

Handle Cross Brace

$

$

Not available

13

Toro 112048

Hex Nut 1/4-28

$

$

Not available

14

Toro 112049

Hex Bolt 1/4-28 x 7/8

$

$

Not available

15

Toro 112060

Frame RH

$

$

Not available

16

Toro 112061

Rear Wheel Assembly (includes (1) 112284 Rim,(1) 112283 Tire, (1) 112282 Inside Bearing, (1) 112281 Outside Brg & (1) 112285 Hubcap)
(Superseded to 11-2280)

$

$

Not available

17

Toro 112286

Engine-B & S Model 80202 type 1765

$

$

Currently unavailable

Toro 114057

Engine-Kawasaki Model FA130 type AS17

$

$

Currently unavailable

18

Toro 960193

Hex Bolt 5/16-24 x 1-1/2

$

$

Currently unavailable

19

Toro 112096

Hex Bolt 5/16-24 x 7/8

$

$

Currently unavailable

20

Toro 915237

Hex Nut 7/16-14
(Superseded to 3218-4)

$0.99

$

Usually ships in 3-6 days

0

21

Toro 112062

Front Axle

$

$

Not available

22

Toro 112063

SPACER FRONT WHEEL

$

$

Not available

23

Toro 112097

Hex Nut 5/16-24

$

$

Currently unavailable

24

Toro 112064

Frame Crossmember

$

$

Not available

25

Toro 112065

Rear Axle

$

$

Not available

26

Toro 112066

Engine Pulley Guard Bracket

$

$

Not available

27

Toro 112067

GUARD ENGINE PULLEY

$

$

Not available

Toro 112090

Engine Pulley and Bracket Assembly (includes items 19, 23, 26, 27, 28 & 30)

$

$

Not available

28

Toro 112092

SCREW SPECIAL

$1.49

$

Usually ships in 3-6 days

0

29

Toro 112068

FRAME LH

$89.99

$

Usually ships in 3-6 days

0

30

Toro 112004

PULLEY ENGINE

$

$

Not available

31

Toro 112094

Set Screw 5/16-24 x 5/16

$

$

Currently unavailable

32

Toro MW10421

Key 3/16 x 3/16 x 5/8

$

$

Not available

33

Toro 112069

ASSY PULLEY & SHAFT

$

$

Not available

34

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

35

Toro 112070

Cutterhead Pulley Guard

$

$

Not available

36

Toro 112071

Cutterhead Bearing

$

$

Not available

37

Toro 112072

Head Mandrel

$

$

Not available

Toro 112091

Cutting Head Assembly (includes items 33, 36, 37, 51, 52, 53, 54, 55, 56, 61 & 63)

$

$

Not available

40

Toro 112073

CLAMP BLADE GUARD

$

$

Not available

41

Toro 112093

Hex Bolt 1/4-28 x 1 1/2

$

$

Not available

42

Toro 112074

GUARD BLADE

$

$

Not available

Toro 112088

Blade Guard Assembly (includes items 13, 40, 41 & 42)

$

$

Not available

44

Toro 112075

WASHER FRICTION

$

$

Not available

45

Toro 915004

NUT-6

$

$

Not available

46

Toro 112076

Debris Sweep Deflector

$

$

Not available

Toro 112089

Debris Guard Assembly (includes items 13, 46, 47 & 62)

$

$

Not available

47

Toro 112077

U-Clamp

$

$

Not available

49

Toro 908139

Pivot Bolt 7/16-14 x 3-1/4

$

$

Currently unavailable

50

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

51

Toro 112078

Head Recoil Spring

$

$

Not available

52

Toro 112079

CUP

$

$

Not available

53

Toro 112080

Cutterhead Body

$

$

Not available

54

Toro 112081

Angle Shifting Lever

$

$

Not available

55

Toro 933232

ROLL PIN 5/16 X 2

$

$

Not available

56

Toro 112082

Spring

$

$

Not available

57

Toro 112083

Cutterhead Brace

$

$

Not available

58

Toro 112084

BELT DRIVE

$

$

Not available

59

Toro 112085

Cutting Blade
(Superseded to 112086)

$

$

Not available

Toro 112086

CUTTING BLADE 3PAK

$

$

Not available

60

Toro 933229

SPIROL ROLL PIN

$

$

Not available

62

Toro 112087

U-Clamp Spacer

$

$

Not available

63

Toro MW1455

Grease Zerk
(Superseded to 302-26)

$6.49

$

In Stock, only 1 left!

0

64

Toro 111962

BEARING

$

$

Not available

65

Toro 111870

5-Speed Decal

$

$

Not available

66

Toro 112328

Front Wheel Assembly (includes (1) 112329 Rim, (1) 112283 Tire, (2) 112282 Wheel Bearings)

$

$

Not available

67

Toro 112321

DECAL CAUTION

$4.99

$

Usually ships in 3-6 days

0

68

Toro 112322

DECAL TRIM

$6.49

$

Usually ships in 3-6 days

0

69

Toro 112323

Decal-Blade Warning

$

$

Not available

70

Toro 112324

DECAL OPERATION

$3.99

$

Usually ships in 3-6 days

0

71

Toro 112325

Decal-Throttle

$

$

Not available

72

Toro 112327

DECAL SAFETY GLASSES

$

$

Not available

73

Toro 112430

PUSH SWITCH WO

$88.99

$

Usually ships in 3-6 days

0
