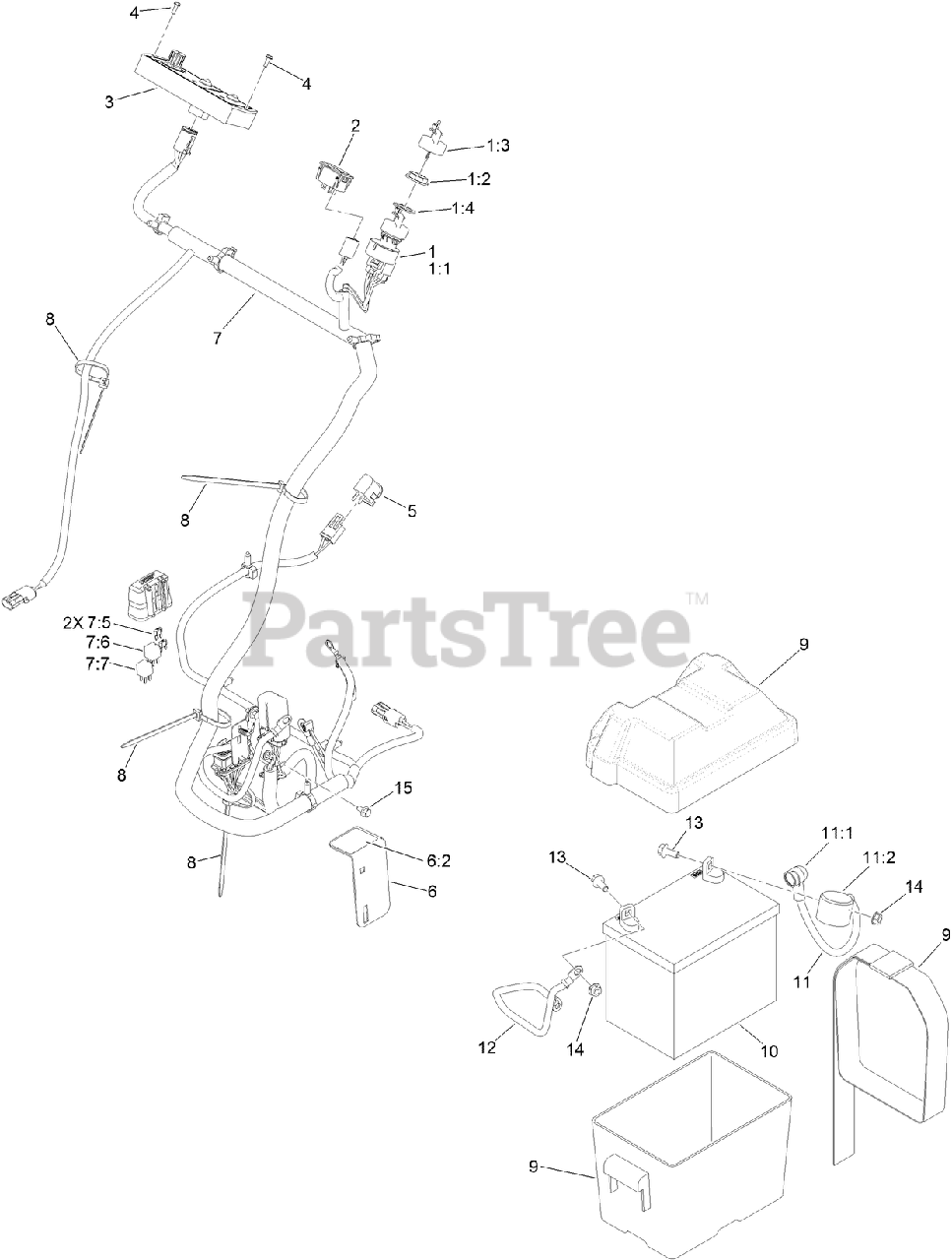

34225 - Toro Stand-On Spreader/Sprayer (SN: 400000000 - 999999999) Electrical Assembly Parts Diagram

Stand-On Spreader/Sprayer

Electrical Assembly Parts Diagram

  • Title

1

IGNITION SWITCH ASM

Note: Not serviced separately

$

$

Not available

1:1

Deck ASM

Note: Not serviced separately

$

$

Not available

1:2

Toro 108-8660

NUT-MOUNTING

$33.99

$

In Stock, only 4 left!

0

1:3

Toro 106-5270

IGNITION KEY SET

$21.99

$

Usually ships in 3-6 days

0

1:4

Toro 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 2 left!

0

2

Toro 126-3931

METER-HOUR

$64.99

$

Usually ships in 3-6 days

0

3

Toro 126-6622

CONTROLLER-DC

$844.99

$

Usually ships in 3-6 days

0

4

Toro 32144-87

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

5

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

6

Toro 135-4714

FUSE BRACKET ASM

$41.99

$

Usually ships in 3-6 days

0

6:2

Toro 135-6949

DECAL-PDM

$5.49

$

Usually ships in 3-6 days

0

7

Toro 135-4709

HARNESS-WIRING

$435.99

$

Usually ships in 3-6 days

0

7:5

Toro 121-8868

FUSE-MINI BLADE, 20 AMP

$5.99

$

Usually ships in 3-6 days

0

7:6

Toro 126-3991

RELAY-MICRO

$39.99

$

In Stock, only 3 left!

0

7:7

Toro 135-5221

RELAY-COIL, NC, MP280

$85.99

$

Usually ships in 3-6 days

0

8

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

9

Toro 126-1424

BATTERY BOX

$46.99

$

Usually ships in 3-6 days

0

10

BATTERY

Note: Not serviced separately

$

$

Not available

11

Toro 135-4669

POSITIVE BATTERY CABLE ASM

$13.99

$

Usually ships in 3-6 days

0

11:1

Toro 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 3 left!

0

11:2

Toro 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, Qty 5

0

12

Toro 114-9715

CABLE-BATTERY, NEGATIVE

$25.99

$

Usually ships in 3-6 days

0

13

Toro 126-2712

SCREW-HHF

$5.49

$

In Stock, Qty 11

0

14

Toro 135-2881

NUT-HF

$1.99

$

In Stock, only 3 left!

0

15

Toro 68-9410

SCREW-HHF

$9.49

$

Usually ships in 3-6 days

0
