34686 (8122) - Gravely Lawn Tractor, 12hp, Without Hydraulic Lift ELECTRICAL SYSTEM Parts Diagram

Lawn Tractor, 12hp, Without Hydraulic Lift

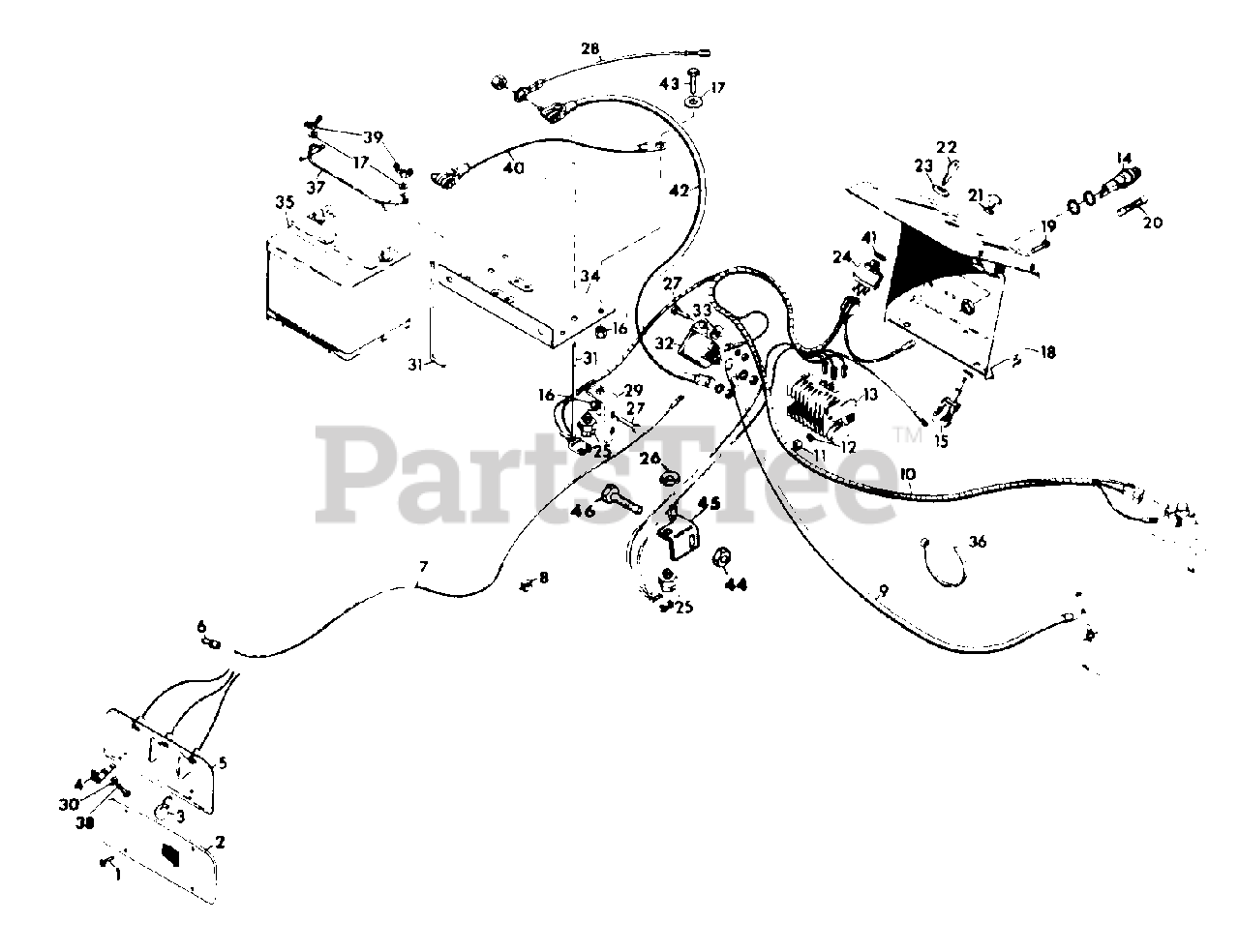

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 159920

SCREW, MACH, 10-24X.50 PAN HD C-RECESS
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

2

Gravely 011289

PANEL, FRONT LIGHT
(Superseded to 20070600)

$108.99

$

Usually ships in 4-12 days

0

3

Gravely 454646

LAMP, NO. 1073
(Superseded to 21072400)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 011030

CLIP, LIGHT MTG.
(Superseded to 20063500)

$

$

Not available

5

Gravely 011334

ASSEMBLY, LAMP REFLECTOR
(Superseded to 20072600)

$

$

Not available

6

Gravely 011763

NUT, WIRE
(Superseded to 07016700)

$

$

Not available

7

Gravely 019534

WIRE, HEADLIGHT
(Superseded to 20281200)

$

$

Not available

8

Gravely 011286

CLIP, WIRE
(Superseded to 20070500)

$

$

Not available

9

Gravely 011031

CABLE, STARTER
(Superseded to 20063600)

$

$

Not available

10

Gravely 034812

HARNESS, WIRING 12 HP KOHLER
(Superseded to 20611000)

$

$

Not available

11

Gravely 120375

NUT, HEX, 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

12

Gravely 120380

WASHER, LOCK 1/4 SP
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

13

Gravely 018009

REGULATOR, RECTIFIER
(Superseded to 08505600)

$143.99

$

Usually ships in 4-12 days

0

14

Gravely 021416

FUSE, PANEL
(Superseded to 08902600)

$35.99

$

Usually ships in 4-12 days

0

15

Gravely 011337

SWITCH, LIGHT
(Superseded to 03490700)

$21.99

$

Usually ships in 4-12 days

0

16

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

17

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

18

Gravely 024448

PANEL INSTRUMENT
(Superseded to 58702200)

$

$

Not available

19

Gravely 160541

SCREW, MACHINE 1/4-20 PAN HD
(Superseded to 06113500)

$1.99

$

In Stock, only 3 left!

0

20

Gravely 014893

FUSE, 30 AMP ACC-30
(Superseded to 20176100)

$

$

Not available

21

Gravely 018587

NUT, SPECIAL, LIGHT SWITCH
(Superseded to 06520800)

$

$

Not available

22

Gravely 018570

KEY, IGNITION SWITCH
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

23

Gravely 019666

NUT, JAM 9/16-24
(Superseded to 20287700)

$3.99

$

In Stock, only 1 left!

0

24

Gravely 019223

SWITCH, IGNITION
(Superseded to 59211800)

$68.99

$

In Stock, Qty 5

0

25

Gravely 020916

SWITCH, INTERLOCK
(Superseded to 02913100)

$45.99

$

In Stock, only 1 left!

0

26

Gravely 107354

NUT, STAMPED, 9/16-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 180018

BOLT, HEX, 1/4-20X.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

28

Gravely 021425

WIRE, INSTRUMENT PANEL
(Superseded to 08801600)

$

$

Not available

29

Gravely 020660

BRACKET, SWITCH
(Superseded to 08720300)

$

$

Not available

30

Gravely 120385

WASHER, FLAT .188X.562X.049
(Superseded to 06409200)

$

$

Not available

31

Gravely 012386

HOOK, BATTERY
(Superseded to 21370500)

$32.99

$

Usually ships in 4-12 days

0

32

Gravely 007277

SWITCH, MAG.
(Superseded to 20031900)

$51.99

$

In Stock, only 3 left!

0

33

Gravely 011676

NUT, SPEED, 1/4-20
(Superseded to 07016800)

$

$

Not available

34

Gravely 018573

TRAY, BATTERY
(Superseded to 20260300)

$

$

Not available

35

Gravely 007274

BATTERY, 12V

$

$

Not available

36

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

37

Gravely 011027

BRACKET, BATTERY HOLD DOWN
(Superseded to 20063400)

$

$

Not available

38

Gravely 159947

SCREW, MACH. 10-24X.75 PAN HD C-RECESS
(Superseded to 06111200)

$2.49

$

Usually ships in 4-12 days

0

39

Gravely 010413

NUT, WING, 1/4-20 WASHER INSERT
(Superseded to 06537500)

$4.99

$

In Stock, Qty 9

0

40

Gravely 006980

CABLE, NEGATIVE BATTERY
(Superseded to 21327300)

$17.99

$

Usually ships in 4-12 days

0

41

Gravely 019667

WASHER, LOCK 9/16 INT. TOOTH
(Superseded to 06310900)

$2.49

$

In Stock, only 4 left!

0

42

Gravely 012375

CABLE, BATTERY TO MAGNETIC SWITCH
(Superseded to 20095200)

$

$

Not available

43

Gravely 180021

BOLT, HEX 1/4-20X.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

44

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

45

Gravely 034724

BRACKET, INTERLOCK SWITCH
(Superseded to 21238700)

$

$

Not available

46

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

NS

Gravely 033847

BOOT, BATTERY CABLE
(Superseded to 03384700)

$

$

Not available

NS

Gravely 121753

WASHER, LOCK 1/4 EXT TOOTH TYPE A
(Superseded to 21051100)

$

$

Not available
