38073 (724) - Toro 24" Snow Thrower (SN: 089000001 - 089999999) (1998) HANDLE ASSEMBLY RIGHT SIDE Parts Diagram

24" Snow Thrower

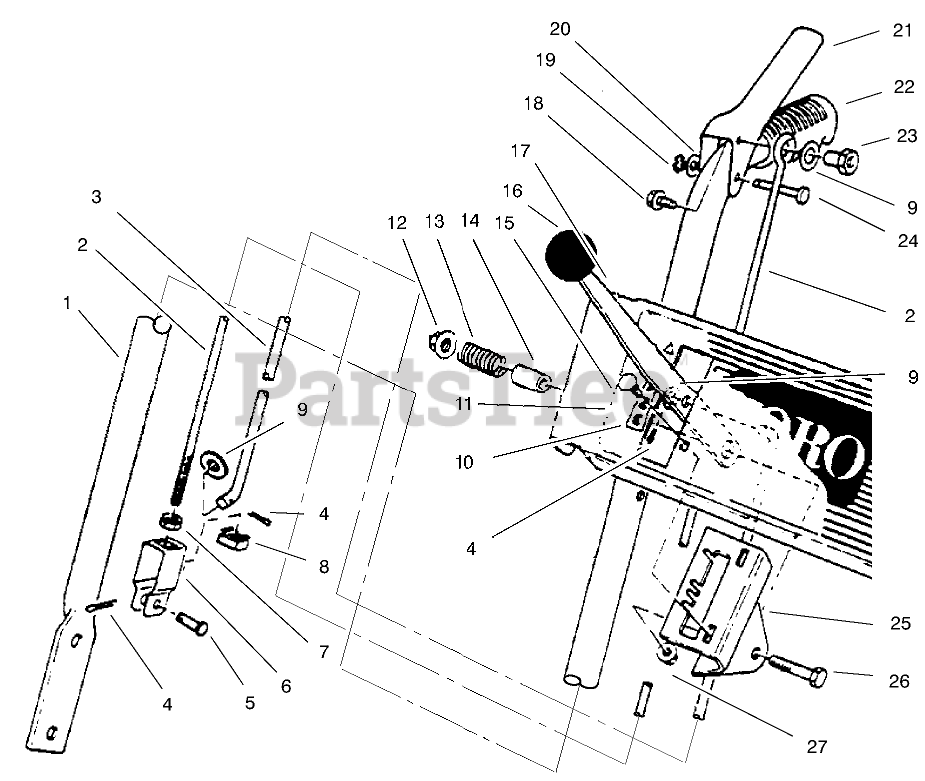

HANDLE ASSEMBLY RIGHT SIDE Parts Diagram

  • Title

1

Toro 52-5561

Handle-Right
(Superseded to 52-5561-03)

$75.99

$

Usually ships in 3-6 days

0

Toro 52-5560

RIGHT HANDLE

Note: Not illustrated

$

$

Not available

2

Toro 52-5590

LINK-UPPER

$19.99

$

Usually ships in 3-6 days

0

3

Toro 74-1490

ROD-SELECTOR, SPEED

$

$

Not available

4

Toro 3272-4

PIN-COTTER

$0.99

$

In Stock, Qty 6

0

5

Toro 283-3

PIN-CLEVIS

$0.99

$

In Stock, only 1 left!

0

6

Toro 39-3080

CLEVIS

$14.99

$

Usually ships in 3-6 days

0

7

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

8

Toro 32115-5

NUT-RETAINED

$6.49

$

Usually ships in 3-6 days

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 43-7360

ESCUTCHEON PLT B

$

$

Not available

11

Toro 94-9876

DECAL - ESCUTCHEON
(Superseded to 100-3437)

$43.99

$

Usually ships in 3-6 days

0

12

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

13

Toro 37-9150

SPRING

$9.49

$

In Stock, only 1 left!

0

14

Toro 40-8130

SPACER

$9.49

$

In Stock, only 1 left!

0

15

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 233-21

KNOB

$13.99

$

In Stock, only 1 left!

0

17

Toro 37-8821

Selector-Speed
(Superseded to 37-8821-03)

$

$

Not available

18

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

19

Toro 32151-73

RING-CLIP

$2.99

$

In Stock, Qty 6

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 63-3640

HANDLE-CONTROL
(Superseded to 94-8887-03)

$

$

Not available

22

Toro 74-1360

GRIP-HANDLE

$

$

Not available

23

Toro 47-4990

POST-MOUNTING, LINKAGE

$23.99

$

Usually ships in 3-6 days

0

24

Toro 52-5600

PIN-LEVER, CONTROL

$9.49

$

Usually ships in 3-6 days

0

25

Toro 39-1280

Mount-Speed Selector
(Superseded to 39-1280-03)

$

$

Not available

26

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 14

0
