38100 (S-140) - Toro Snow Thrower (SN: 000500000 - 000999999) (1980) CARBURETOR NO. 632141 ENGINE MODEL NO. AH520, TYPE 1601 (USED ON UNITS WITH SERIAL NO. 0510158 & UP) Parts Diagram

Snow Thrower

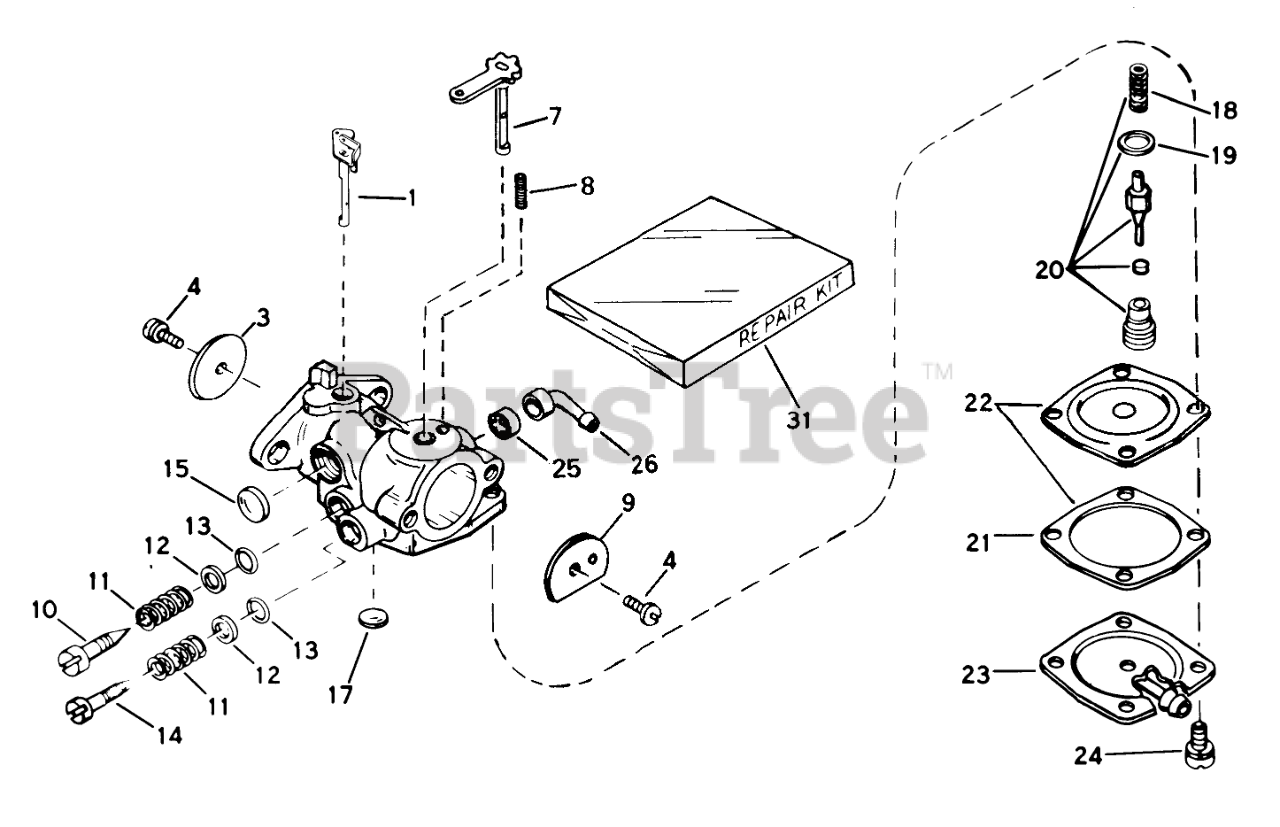

CARBURETOR NO. 632141 ENGINE MODEL NO. AH520, TYPE 1601 (USED ON UNITS WITH SERIAL NO. 0510158 & UP) Parts Diagram

  • Title

1

Tecumseh 632126

Shaft & Lever Assy., Throttle

$

$

Currently unavailable

3

Tecumseh 631036

Shutter-Throttle

$1.99

$

In Stock, only 1 left!

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 17

0

7

Tecumseh 632036

Shaft & Lever Assy., Choke

$

$

Not available

8

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 31837

Shutter-Choke

$1.99

$

In Stock, only 1 left!

0

10

Tecumseh 631562

Screw-Idle Adjustment

$5.49

$

In Stock, Qty 13

0

11

Tecumseh 630738

Spring

$1.99

$

In Stock, Qty 12

0

12

Tecumseh 630739

Washer

$1.99

$

In Stock, Qty 16

0

13

Tecumseh 630740

"O"Ring

Note: Indicates items included in repair kit, part no. 631893.

$2.49

$

In Stock, Qty 15

0

14

Tecumseh 630898

Screw Main Adjustment

$2.49

$

In Stock, Qty 9

0

15

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Indicates items included in repair kit, part no. 631893.

$1.99

$

In Stock, Qty 8

0

17

Tecumseh 630746

Plug Welch
(Superseded to 632554)

Note: Indicates items included in repair kit, part no. 631893.

$1.99

$

In Stock, only 1 left!

0

18

Tecumseh 631049

Spring-Valve

$1.99

$

In Stock, only 1 left!

0

19

Tecumseh 630742

Gasket-Valve Seat

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 630932A

Inlet Needle, Seat, Spring & Gasket Assembly (Incl. Ref. #18 & 19)

Note: Indicates items included in repair kit, part no. 631893.

$9.49

$

In Stock, Qty 15

0

21

Tecumseh 630750

Gasket-Diaphragm
(Superseded to 630750A)

$4.49

$

In Stock, only 3 left!

0

22

Tecumseh 630978

Diaphragm Assembly (Incl. Ref. #21)

Note: Indicates items included in repair kit, part no. 631893.

$5.99

$

In Stock, Qty 17

0

23

Tecumseh 631653

Cover, Diaphragm

$10.99

$

In Stock, only 1 left!

0

24

Tecumseh 650817

Screw

$

$

Not available

25

Tecumseh 631201

Valve Check

$21.99

$

Usually ships in 3-12 days

0

26

Tecumseh 631808

Fitting-Inlet, Fuel

$13.99

$

Usually ships in 3-12 days

0

31

Tecumseh 631893

Kit-Repair
(Superseded to 631893A)

$23.99

$

In Stock, Qty 18

0
