38181 (CCR 2000) - Toro Snow Thrower (SN: 010000001 - 019999999) (1991) FLYWHEEL & MAGNETO ASSEMBLY (ENGINE MODEL NO. 47PL0-4, 47PK9-4, 47PH7-4) Parts Diagram

Snow Thrower

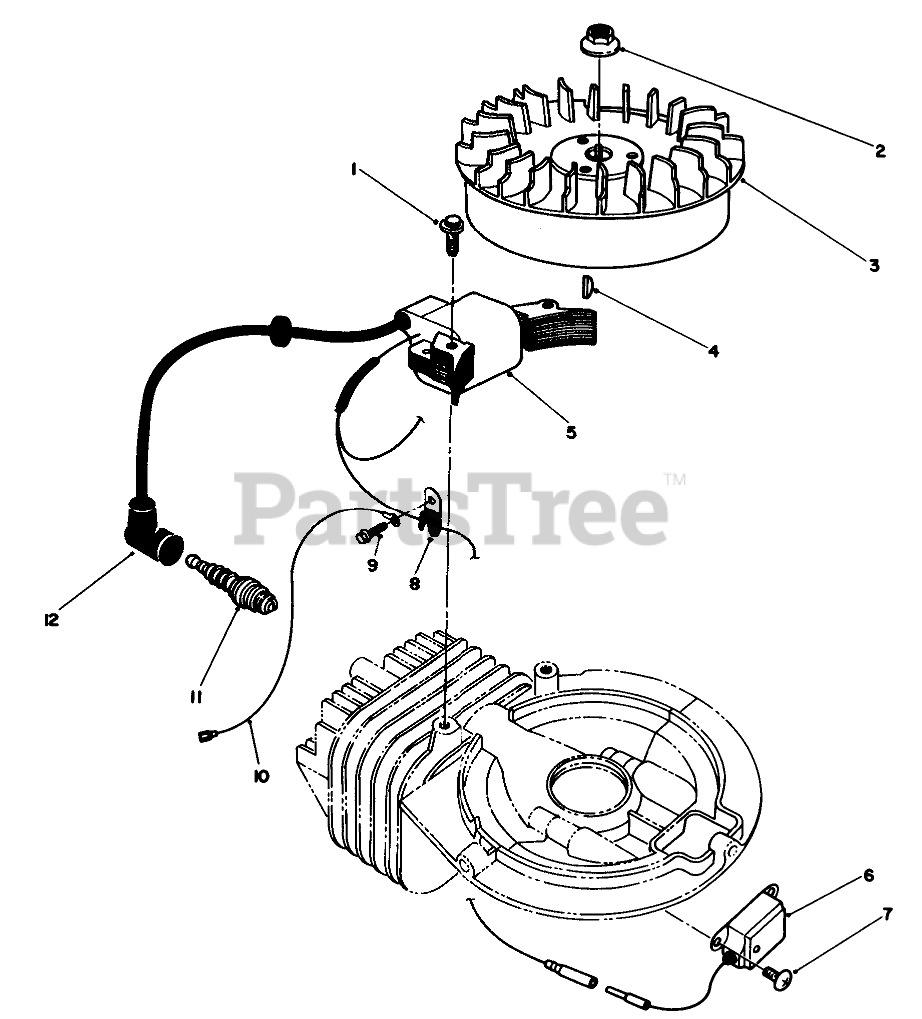

FLYWHEEL & MAGNETO ASSEMBLY (ENGINE MODEL NO. 47PL0-4, 47PK9-4, 47PH7-4) Parts Diagram

  • Title

1

Toro 81-5710

SCREW

$

$

Not available

2

Toro 81-1330

NUT

$9.99

$

Usually ships in 3-6 days

0

3

Toro 81-0320

FLYWHEEL

$

$

Not available

4

Toro 81-2370

KEY

$6.99

$

In Stock, only 1 left!

0

5

Toro 81-0330

MAGNETO COIL

$249.99

$

In Stock, only 1 left!

0

6

Toro 81-0340

MAGNETO MODULE

$

$

Not available

7

Toro 81-0380

SCREW

$

$

Not available

8

Toro 81-1480

CLAMP

$4.99

$

Usually ships in 3-6 days

0

9

Toro 53-1340

BOLT

$

$

Not available

10

Toro 81-2860

WIRE

$

$

Not available

11

Toro 81-0181

Sparkplug
(Superseded to 50-1170)

$3.49

$

In Stock, Qty 20+

0

12

Toro 81-1500

CAP-SPARKPLUG

$32.99

$

In Stock, only 2 left!

0

Toro 41-7650

PULLER-FLYWHEEL

$149.99

$

Usually ships in 3-6 days

0
