38186 (CCR 2000) - Toro Snow Thrower (SN: 039000001 - 039999999) (1993) CARBURETOR ASSEMBLY (ENGINE MODEL NO. 47PM1-5) Parts Diagram

Snow Thrower

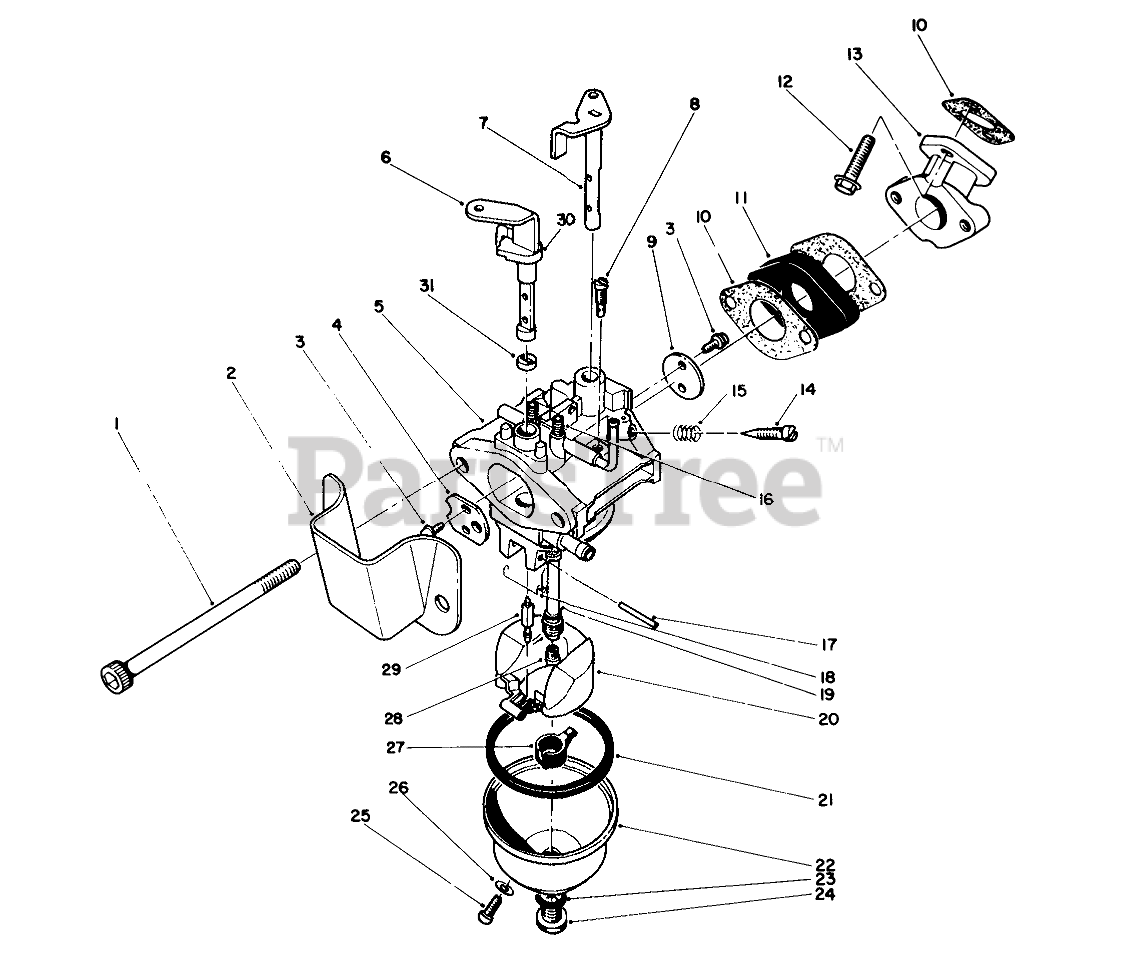

CARBURETOR ASSEMBLY (ENGINE MODEL NO. 47PM1-5) Parts Diagram

  • Title

1

Toro 81-0450

BOLT

$

$

Not available

2

Toro 81-2700

SPIT CUP

$18.99

$

Usually ships in 3-6 days

0

3

Toro 81-2710

Screw
(Superseded to 81-2160)

$3.99

$

Usually ships in 3-6 days

0

4

Toro 81-2720

VALVE

$38.99

$

Usually ships in 3-6 days

0

5

Body-Carburetor

$

$

Not available

6

Toro 81-5510

Shaft-Choke (Incl. Ref. #30 & 31)
(Superseded to 81-4270)

$

$

Not available

7

Toro 81-2920

SHAFT

$

$

Not available

8

Toro 81-2930

JET

$22.99

$

Usually ships in 3-6 days

0

9

Toro 81-2940

VALVE

$37.99

$

Usually ships in 3-6 days

0

10

Toro 81-2570

Gasket-Carburetor
(Superseded to 81-0780)

$5.49

$

In Stock, Qty 11

0

11

Toro 81-0460

CARB INSULATOR

$24.99

$

Usually ships in 3-6 days

0

12

Toro 50-6350

BOLT

$

$

Not available

13

Toro 81-0470

MANIFOLD

$58.99

$

Usually ships in 3-6 days

0

14

Toro 50-2360

ADJUSTER

$16.99

$

Usually ships in 3-6 days

0

15

Toro 81-2580

SPRING-PILOT SCREW

$9.99

$

Usually ships in 3-6 days

0

16

Toro 81-2590

SPRING

$

$

Not available

17

Toro 81-2600

PIN-HINGE

$6.99

$

Usually ships in 3-6 days

0

18

Toro 81-2610

TORSION SPRING

$

$

Not available

19

Toro 81-2740

MAIN NOZZLE

$

$

Not available

20

Toro 81-4920

FLOAT

$43.99

$

Usually ships in 3-6 days

0

21

Toro 81-2630

FLOAT BOWL GASKET

$10.99

$

In Stock, only 4 left!

0

22

Toro 81-2640

BOWL

$88.99

$

Usually ships in 3-6 days

0

23

Toro 81-2650

GASKET

$5.49

$

Usually ships in 3-6 days

0

24

Toro 81-2660

SCREW

$23.99

$

In Stock, only 2 left!

0

25

Toro 81-2670

SCREW

$9.99

$

Usually ships in 3-6 days

0

26

Toro 81-2680

GASKET

$4.99

$

In Stock, Qty 6

0

27

Toro 81-4930

SPACER

$7.49

$

Usually ships in 3-6 days

0

28

Toro 81-1040

MAIN JET

$23.99

$

Usually ships in 3-6 days

0

Toro 81-1940

MAIN JET (76.3)

Note: Not illustrated

$

$

Not available

29

Toro 81-4700

NEEDLE
(Superseded to 81-5820)

$36.99

$

In Stock, only 1 left!

0

30

Toro 81-5520

UPPER CHOKE RING

$12.99

$

Usually ships in 3-6 days

0

31

Toro 81-5530

LOWER CHOKE RING

$12.99

$

Usually ships in 3-6 days

0

Toro 81-4690

ASM - CARBURETOR
(Superseded to 95-7935)

Note: Not illustrated

$

$

Not available

Toro 81-2910

Choke Shaft Assembly (Incl. Ref. #6, 30 & 31)

Note: Not illustrated

$

$

Not available
