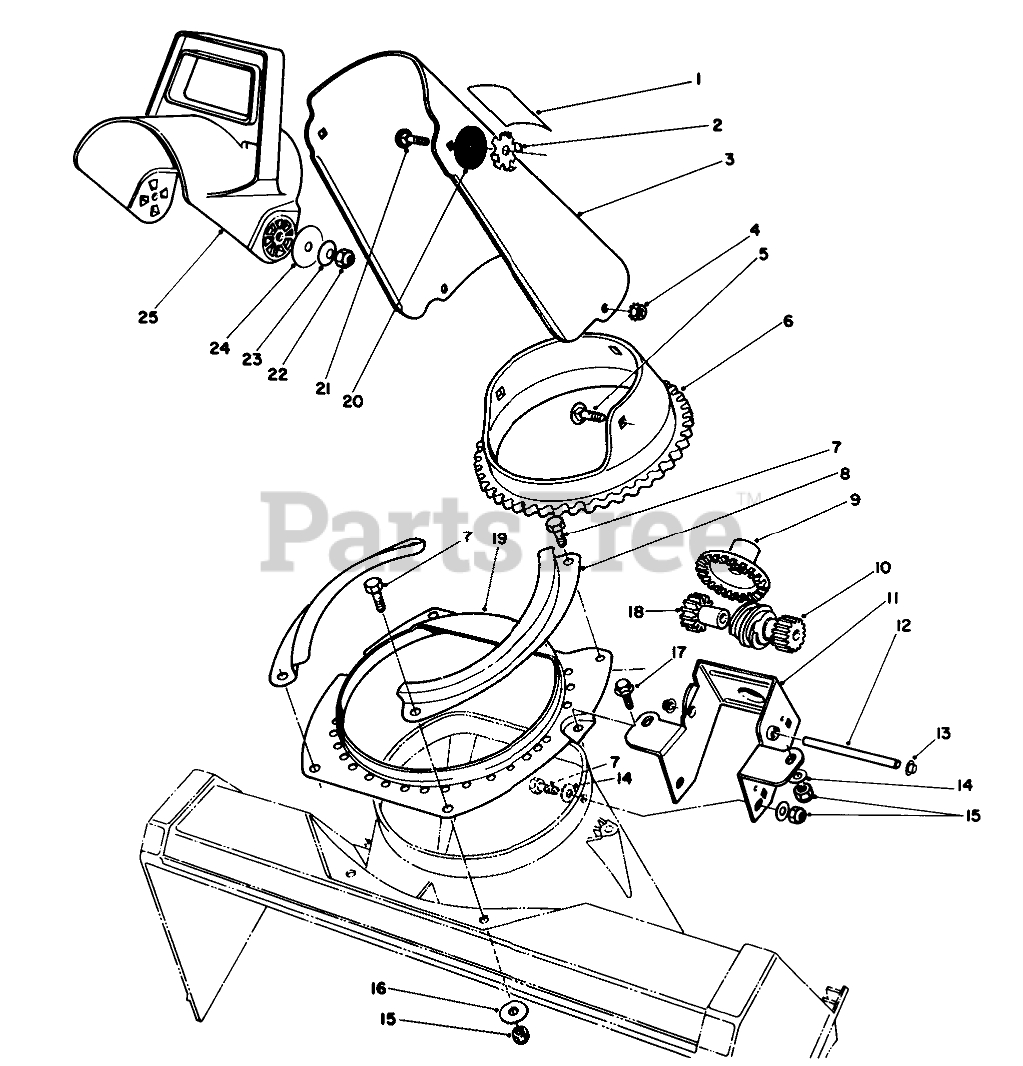

38186 (CCR 2000) - Toro Snow Thrower (SN: 039000001 - 039999999) (1993) DISCHARGE CHUTE ASSEMBLY Parts Diagram

Snow Thrower

DISCHARGE CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 63-3740

Decal-Danger
(Superseded to 94-8079)

$10.99

$

Usually ships in 3-6 days

0

Toro 63-3760

DECAL-DANGER DISCH.
(Superseded to 94-2558)

Note: Not illustrated

$42.99

$

In Stock, only 1 left!

0

2

Toro 55-8950

PLATE-FRICTION

$8.49

$

In Stock, only 2 left!

0

3

Toro 12-8749

Chute-Discharge (Incl. Ref. #1:63-3760)
(Superseded to 94-2791)

$

$

Not available

4

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

5

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 19

0

6

Toro 55-8720

RING-GEAR, CHUTE

$

$

Not available

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 55-8910

Retainer-Chute Ring
(Superseded to 55-8910-03)

$18.99

$

In Stock, Qty 5

0

9

Toro 55-8740

GEAR-FACE

$26.99

$

Usually ships in 3-6 days

0

10

Toro 55-8730

GEAR-SPUR/WORM
(Superseded to 105-3512)

$34.99

$

Usually ships in 3-6 days

0

11

Toro 84-5650

Bracket-Chute Gear
(Superseded to 105-3513)

$35.99

$

Usually ships in 3-6 days

0

12

Toro 55-9150

SHAFT-GEAR, WORM

$26.99

$

Usually ships in 3-6 days

0

13

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, Qty 16

0

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 13

0

18

Toro 55-8750

GEAR-SPUR, SPACER

$15.99

$

Usually ships in 3-6 days

0

19

Toro 55-8921

Ring-Chute Support
(Superseded to 55-8921-03)

$24.99

$

In Stock, Qty 9

0

20

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 10

0

21

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 10

0

24

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0

25

Toro 56-2680

CHUTE-DEFLECTOR

$22.99

$

In Stock, only 1 left!

0
