38350 - Toro Power Shovel Snow Thrower (SN: 004000001 - 004999999) (1984) CARBURETOR ASSEMBLY NO. 45-2360 Parts Diagram

Power Shovel Snow Thrower

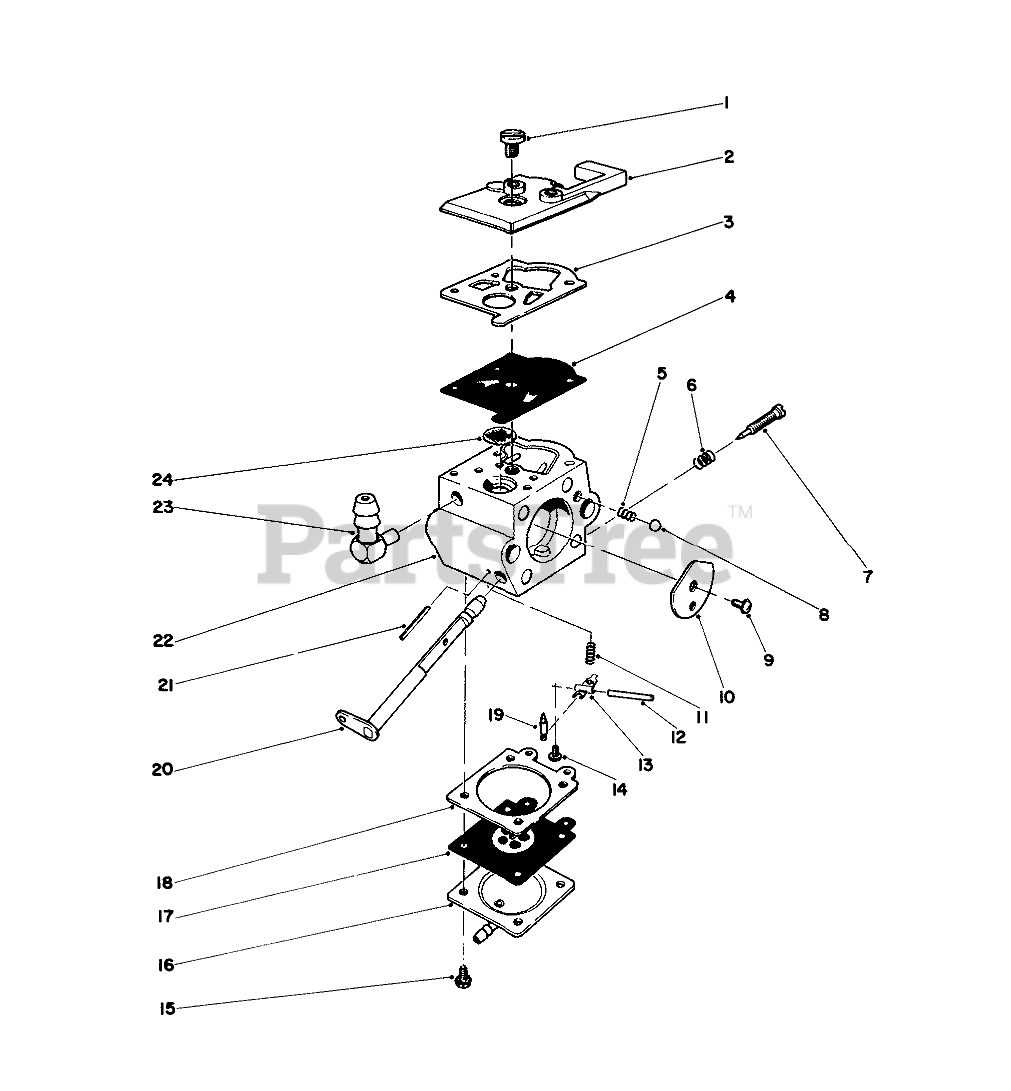

CARBURETOR ASSEMBLY NO. 45-2360 Parts Diagram

  • Title

1

Toro 45-2650

PUMP COVER SCREW

$

$

Not available

2

Toro 45-2660

Pump Cover

$

$

Not available

3

Toro 45-2670

PUMP GASKET

$

$

Not available

4

Toro 45-2680

PUMP DIAPHRAGM

$24.99

$

Usually ships in 3-6 days

0

5

Toro 45-2740

CHOKE SPRING

$

$

Not available

6

Toro 45-2770

Spring-Needle (Hi)

$

$

Not available

7

Toro 45-2760

HIGH SPEED NEEDLE

$

$

Not available

8

Toro 45-2750

CHOKE BALL

$

$

Not available

9

Toro 45-2780

VALVE SCREW

$

$

Not available

10

Toro 45-2790

Choke Valve

$

$

Not available

11

Toro 45-2800

Metering Lever Spring
(Superseded to 41-0870)

$

$

Not available

12

Toro 41-1020

Metering Lever Pin

$

$

Not available

13

Toro 41-0880

Lever Metering

$

$

Not available

14

Toro 41-1030

Screw-Metering Pin

$

$

Not available

15

Toro 41-1070

Screw

$

$

Not available

16

Toro 45-2730

Metering Diaphragm Cover

$

$

Not available

17

Toro 41-1050

METERING DIAPHRAGM

$

$

Not available

18

Toro 45-2720

Gasket-Metering Diaphragm

$

$

Not available

19

Toro 45-2810

NEEDLE VALVE

$

$

Not available

20

Toro 45-2710

CHOKE SHAFT ASM

$

$

Not available

21

Roll Pin

Note: Not available, order complete carburetor assembly 45-2360.

$

$

Not available

22

Carburetor Body (Incl. Ref. #21)

Note: Not available, order complete carburetor assembly 45-2360.

$

$

Not available

23

Toro 45-2690

FUEL FITTING

$

$

Not available

24

Toro 464720

Inlet Screen

$

$

Currently unavailable

Toro 45-3030

Carburetor Repair Kit (Incl. Ref. #3-9, 11-14, 17-19 & 24)

Note: Not Illustrated.

$

$

Not available
