38445 (CCR 3650) - Toro Snow Thrower (SN: 200012328 - 200999999) (2000) ENGINE AND FRAME ASSEMBLY Parts Diagram

Snow Thrower

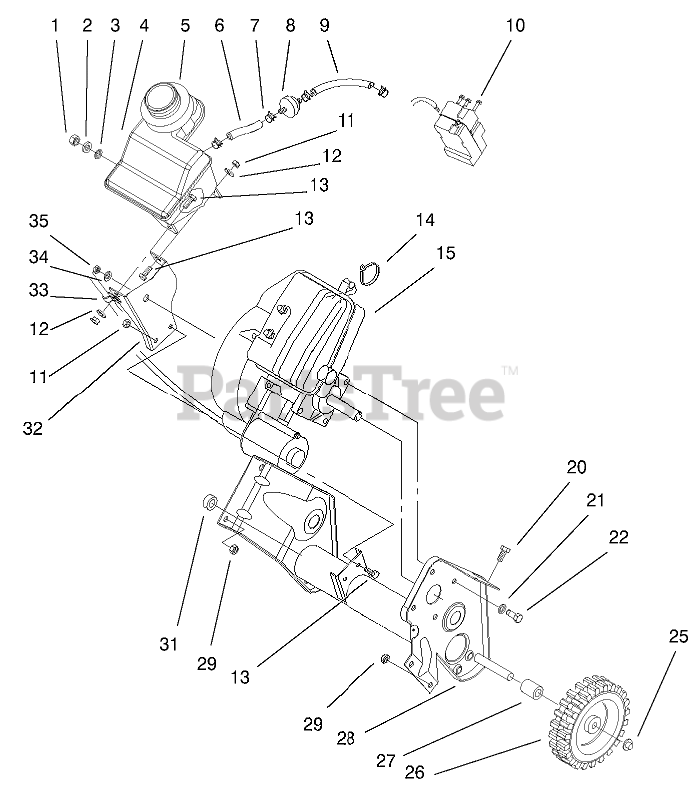

ENGINE AND FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 32152-8

NUT-LOCK, CONE

$2.99

$

In Stock, only 1 left!

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

Usually ships in 3-6 days

0

3

Toro 237-89

GROMMET-RUBBER

$3.49

$

In Stock, Qty 5

0

4

Toro 94-9920

Tank-Gas
(Superseded to 105-8952)

$79.99

$

In Stock, only 2 left!

0

5

Toro 55-9310

SEAL-FOAM

$

$

Not available

6

Toro 49-2482

LINE-FUEL

$14.99

$

In Stock, Qty 5

0

7

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

8

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

9

Toro 94-9932

HOSE-FUEL
(Superseded to 109-0304)

$2.49

$

In Stock, Qty 16

0

10

Toro 32144-27

Screw-Plastite (only on: 38439, 38445)

$6.49

$

In Stock, only 3 left!

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 250-4

TIE-CABLE

$0.99

$

Usually ships in 3-6 days

0

15

Engine-Briggs and Straton, 084232-0121-E1 (only on: 38440)

Note: Not serviced separately

$

$

Not available

15

Engine-Briggs and Straton, 084232-0121-E1 (only on: 38440)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

15

Engine-Briggs and Straton, 084233-0198-E1 (only on: 38439, 38445)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

15

Engine-Briggs and Straton, 084233-0198-E1 (only on: 38439, 38445)

Note: Not serviced separately

$

$

Not available

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 10

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 32112-14

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0

26

Toro 66-6510

WHEEL

$24.99

$

In Stock, Qty 10

0

27

Toro 66-6501

SPACER-WHEEL

$3.99

$

In Stock, Qty 20+

0

28

Toro 95-1892-03

FRAME

$

$

Not available

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 66-6500

SPACER-WHEEL

$2.99

$

In Stock, only 2 left!

0

32

Toro 94-9918-03

SUPPORT-RECOIL

$18.99

$

Usually ships in 3-6 days

0

33

Toro 2412-91

Clamp R (only on: 38439, 38445)

$3.99

$

In Stock, only 2 left!

0

34

Toro 71-5320

WASHER-SUPPORT, ENGINE

$13.99

$

Usually ships in 3-6 days

0

35

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

Toro 28-9170

Cord (only on: 38439, 38445)
(Superseded to 106-4741)

$

$

Not available
