38516 (CCR 2450) - Toro 24" GTS Snow Thrower (SN: 240000001 - 240999999) (2004) UPPER SHROUD AND CONTROL PANEL ASSEMBLY Parts Diagram

24" GTS Snow Thrower

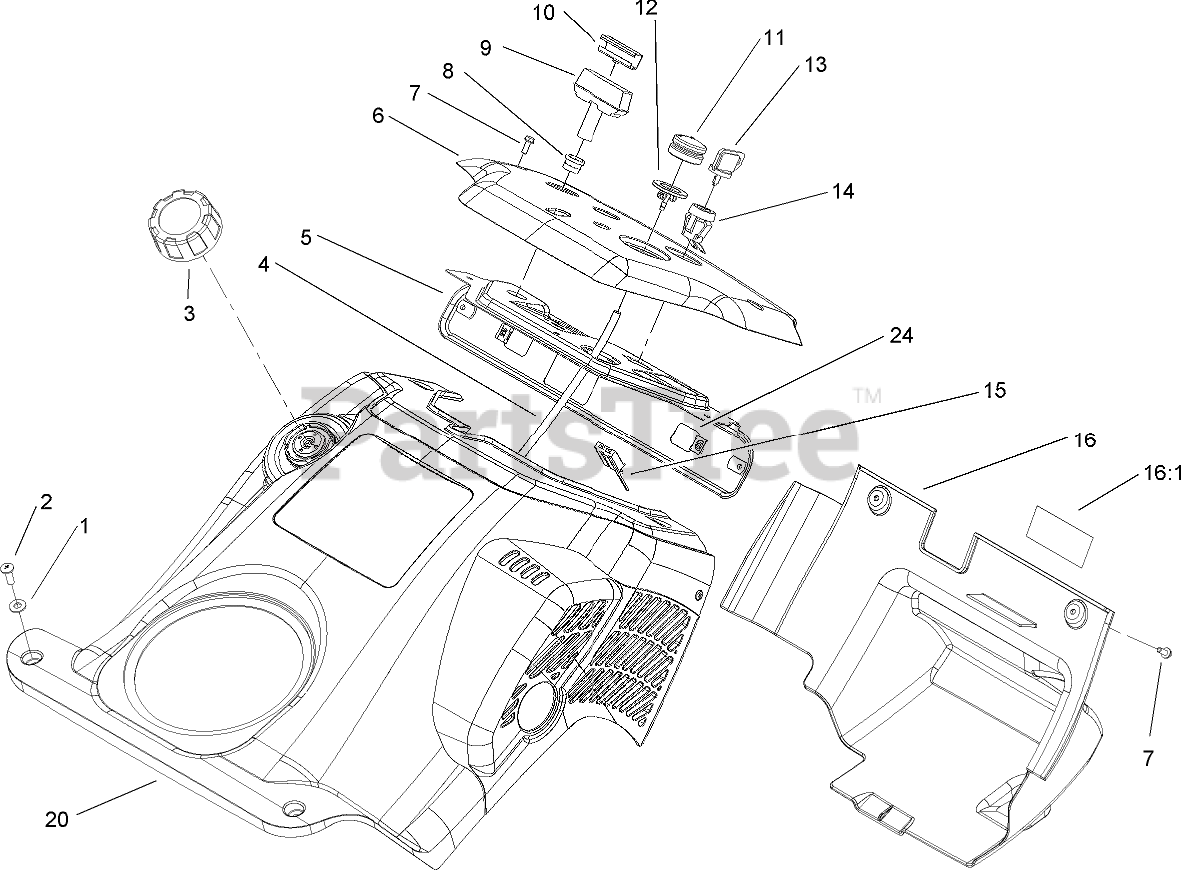

UPPER SHROUD AND CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

3

Toro 104-4133

GAS CAP ASM

$14.99

$

In Stock, only 1 left!

0

4

Toro 98-1372

HOSE-PRIMER

$4.99

$

In Stock, Qty 20+

0

5

Toro 105-1999-03

PANEL-SUPPORT, CONTROL

$46.99

$

Usually ships in 3-6 days

0

6

Toro 105-3523

PANEL-CONTROL

$

$

Not available

7

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

8

Toro 55-9410

GUIDE-ROPE, STARTER

$9.49

$

Usually ships in 3-6 days

0

9

Toro 612825

HANDLE-START
(Superseded to 81-1630)

$18.99

$

In Stock, Qty 6

0

10

Toro 612824

CLIP-STARTER

$3.99

$

In Stock, Qty 13

0

11

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

12

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

13

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

14

Toro 40-5940

SWITCH

$15.99

$

In Stock, Qty 11

0

15

Toro 218-532

CONNECTOR-BODY

$13.99

$

Usually ships in 3-6 days

0

16

Toro 105-1995

SHROUD-LOWER W/DECAL
(Superseded to 108-7338)

$

$

Not available

16:1

Toro 61-4790

DECAL

$11.99

$

Usually ships in 3-6 days

0

20

Toro 106-4732

UPPER SHROUD ASM
(Superseded to 110-3400)

$

$

Not available

24

Toro 100-9889

NUT-SPEED

$6.49

$

In Stock, only 2 left!

0
