38520 (724) - Toro 24" Power Shift Snow Thrower (SN: 008000001 - 008999999) (1988) FUEL SYSTEM & MUFFLER ASSEMBLIES Parts Diagram

24" Power Shift Snow Thrower

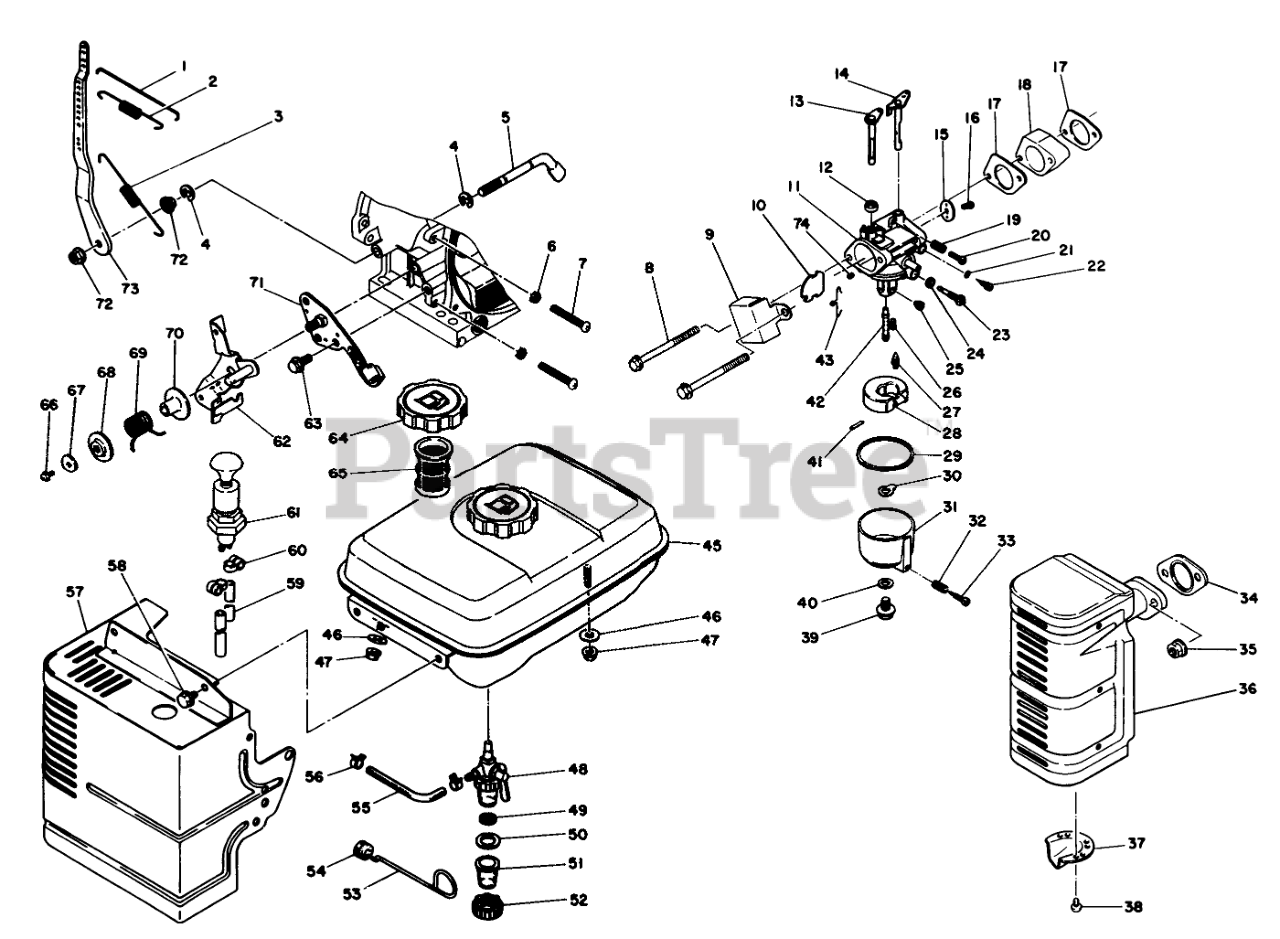

FUEL SYSTEM & MUFFLER ASSEMBLIES Parts Diagram

  • Title

1

Toro 65-0870

GOV.ROD

$

$

Not available

2

Toro 65-0880

SPRING-ROD

$

$

Not available

3

Toro 65-0900

GOV.SPRING

$

$

Not available

4

Toro 65-0860

SNAP RING

$

$

Not available

5

Toro 65-0850

GOV SHAFT

$

$

Not available

6

Toro 65-1001

Nut

$

$

Currently unavailable

7

Toro 65-1020

SCREW

$

$

Not available

8

Toro 65-1370

BOLT

$

$

Not available

9

Cover

$

$

Not available

10

Toro 65-1270

CHOKE VALVE

$

$

Not available

11

Toro 65-2210

Carburetor Assembly (Incl. Ref . #10-16 & 19-43)

$

$

Not available

12

Toro 65-1250

CAP

$

$

Not available

13

Toro 65-1240

CHOKE SHAFT

$

$

Not available

14

Toro 65-2220

THROTTLE SHAFT

$

$

Not available

15

Toro 65-2230

THROTTLE VALVE

$

$

Not available

16

Toro 65-1130

SCREW

$

$

Not available

17

Toro 65-1080

CARB GASKET

$

$

Not available

18

Toro 65-1090

INSULATOR

$

$

Not available

19

Toro 65-1140

SPRING

$

$

Not available

20

Toro 65-1150

SCREW

$

$

Not available

21

Toro 65-2250

Seal-O-Ring
(Superseded to 65-1170)

$

$

Not available

22

Toro 65-2240

Valve-Needle (Incl. Ref. #21)

$

$

Not available

23

Toro 65-2260

SLOW JET

$

$

Not available

24

Toro 65-2270

Gasket
(Superseded to 65-1190)

$

$

Not available

25

Toro 65-2280

MAIN JET

$

$

Not available

26

Toro 65-1210

SCREW

$

$

Not available

27

Toro 65-1290

VALVE

$

$

Not available

28

Toro 65-1300

FLOAT

$

$

Not available

29

Toro 65-2300

GASKET

$

$

Not available

30

Toro 65-1330

GASKET

$

$

Not available

31

Toro 65-1340

Bowl-Float (Incl. Ref. #32 & 38)

$

$

Not available

32

Toro 65-1220

SPRING

$

$

Not available

33

Toro 65-1230

SCREW

$

$

Not available

34

Toro 65-2330

GASKET

$

$

Not available

35

Toro 54-4670

NUT

$

$

Not available

36

Toro 65-1500

Muffler Assembly (Incl. Ref. #37 & 38)

$

$

Not available

37

Toro 65-1510

TAIL PIPE

$

$

Not available

38

Toro 65-1520

SCREW

$

$

Not available

39

Toro 65-2310

PLUG

$

$

Not available

40

Toro 65-1350

GASKET

$1.99

$

Usually ships in 3-6 days

0

41

Toro 65-1310

FLOAT PIN

$

$

Not available

42

Toro 65-2290

MAIN NOZZLE

$

$

Not available

43

Toro 65-1260

CLIP

$

$

Not available

45

Toro 65-2340

Fuel Tank Assembly (Incl. Ref. #64 & 65)

$

$

Not available

46

Toro 65-1700

GASKET

$

$

Not available

47

Toro 65-1450

Nut-Flange
(Superseded to 65-1710)

$

$

Not available

48

Toro 65-1760

Petcock-Fuel (Incl. Ref. #49-52)

$

$

Not available

49

Toro 65-1770

SCREEN

$

$

Not available

50

Toro 65-1780

GASKET

$

$

Not available

51

Toro 65-1790

CUP

$

$

Not available

52

Toro 65-1800

NUT

$

$

Not available

53

Toro 65-1420

CHOKE ROD

$

$

Not available

54

Toro 65-1430

GROMMET

$

$

Not available

55

Toro 65-1730

TUBE

$

$

Not available

56

Toro 65-1720

CLIP

$

$

Not available

57

Toro 65-1820

Cover-Engine

$

$

Not available

58

Toro 65-0050

BOLT

$

$

Not available

59

Toro 65-1860

HOSE

$

$

Not available

60

Toro 65-1850

CLAMP

$

$

Not available

61

Toro 65-1840

Fuel Pump Assembly

$

$

Not available

62

Toro 65-0980

CONTROL LEVER

$

$

Not available

63

Toro 65-0990

BOLT

$

$

Not available

64

Toro 65-1680

FUEL TANK CAP

$

$

Not available

65

Toro 65-1690

FUEL FILTER

$

$

Not available

66

Toro 65-0950

SCREW & WASHER

$

$

Not available

67

Toro 65-0940

WASHER

$

$

Not available

68

Toro 65-1030

SHIM

$

$

Not available

Toro 65-1040

SHIM

$

$

Not available

Toro 65-1050

SHIM

$

$

Not available

Toro 65-1060

SHIM

$

$

Not available

Toro 65-1070

SHIM

$

$

Not available

69

Toro 65-0930

SPRING

$

$

Not available

70

Toro 65-0920

PIPE

$

$

Not available

71

Toro 65-1000

CONTROL PANEL

$

$

Not available

72

Toro 65-0890

NUT

$

$

Not available

73

Toro 65-0910

GOV.LEVER

$

$

Not available

74

Toro 65-2320

BREATHER

$

$

Not available
