38520 (724) - Toro 24" Power Shift Snow Thrower (SN: 008000001 - 008999999) (1988) TRACTION LINKAGE ASSEMBLY Parts Diagram

24" Power Shift Snow Thrower

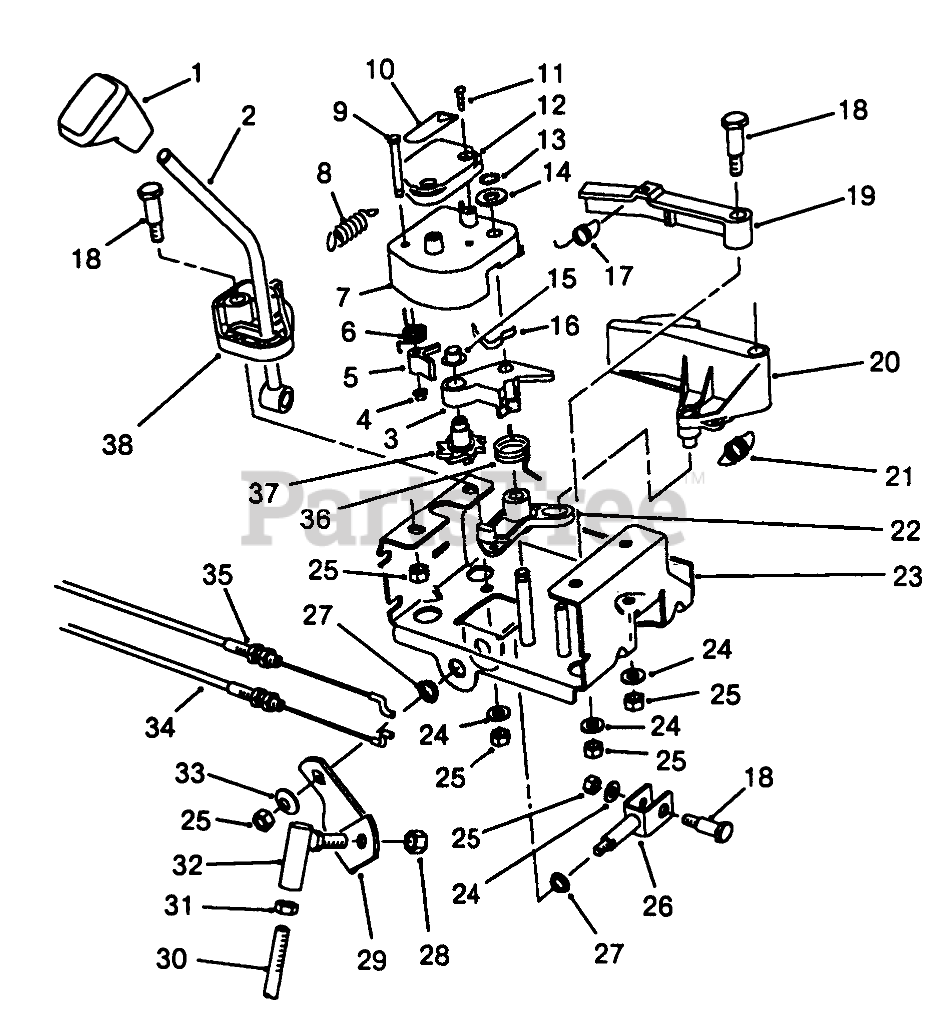

TRACTION LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 62-1290

KNOB-SHIFT

$28.99

$

Usually ships in 3-6 days

0

2

Toro 62-1580

SHIFT ROD WA

$

$

Not available

3

Toro 62-1110

LEVER-WHEEL, INDEX

$12.99

$

Usually ships in 3-6 days

0

4

Toro 3290-422

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0

5

Toro 62-0180

TANG-INDEX

$4.99

$

Usually ships in 3-6 days

0

6

Toro 62-1650

SPRING-TORSION

$8.99

$

Usually ships in 3-6 days

0

7

Toro 62-1100

LATCH-LEVER

$36.99

$

Usually ships in 3-6 days

0

8

Toro 63-2220

SPRING-EXTENSION

$9.99

$

In Stock, only 2 left!

0

9

Toro 63-2610

PIN-TANG

$1.99

$

Usually ships in 3-6 days

0

10

Toro 63-2480

DECAL

$

$

Not available

11

Toro 32104-118

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

12

Toro 62-1140

COVER-LATCH

$13.99

$

Usually ships in 3-6 days

0

13

Toro 32120-46

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

14

Toro 257-9

WASHER-THRUST

$4.49

$

Usually ships in 3-6 days

0

15

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

16

Toro 62-1710

SPRING-FLAT

$

$

Not available

17

Toro 63-2240

SPRING-EXTENSION

$6.99

$

In Stock, only 1 left!

0

18

Toro 63-2650

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

19

Toro 62-1700

LEVER-LOCKOUT

$23.99

$

Usually ships in 3-6 days

0

20

Toro 62-1130

LEVER-REVERSE

$40.99

$

In Stock, only 2 left!

0

21

Toro 63-2230

SPRING-EXTENSION

$7.49

$

Usually ships in 3-6 days

0

22

Toro 62-1120

LEVER-REVERSE, SWITCH

$37.99

$

Usually ships in 3-6 days

0

23

Toro 63-2150

Frame-Control
(Superseded to 63-2150-03)

$124.99

$

Usually ships in 3-6 days

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 62-1610

CLEVIS WA

$

$

Not available

27

Toro 256-296

BUSHING

$6.49

$

In Stock, Qty 5

0

28

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

29

Toro 63-2620

LOWER SHIFT ROD

$

$

Not available

30

Toro 63-2830

ROD-BENT SHIFT, LOWER

$19.99

$

Usually ships in 3-6 days

0

31

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

32

Toro 63-2640

JOINT-BALL

$

$

Not available

33

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 10

0

34

Toro 63-2210

CABLE-GEARBOX

$58.99

$

Usually ships in 3-6 days

0

35

Toro 63-2200

CABLE-ARM, LATCH

$58.99

$

Usually ships in 3-6 days

0

36

Toro 63-2270

SPRING-TORSION

$15.99

$

Usually ships in 3-6 days

0

37

Toro 62-0170

WHEEL-INDEX

$11.99

$

In Stock, only 1 left!

0

38

Toro 62-1470

BASE-LOCKOUT

$

$

Not available
