38570 (828) - Toro 28" Power Shift Snow Thrower (SN: 039000001 - 039999999) (1993) ENGINE BRIGGS & STRATTON MODEL 190406 TYPE 3104-01 Parts Diagram

28" Power Shift Snow Thrower

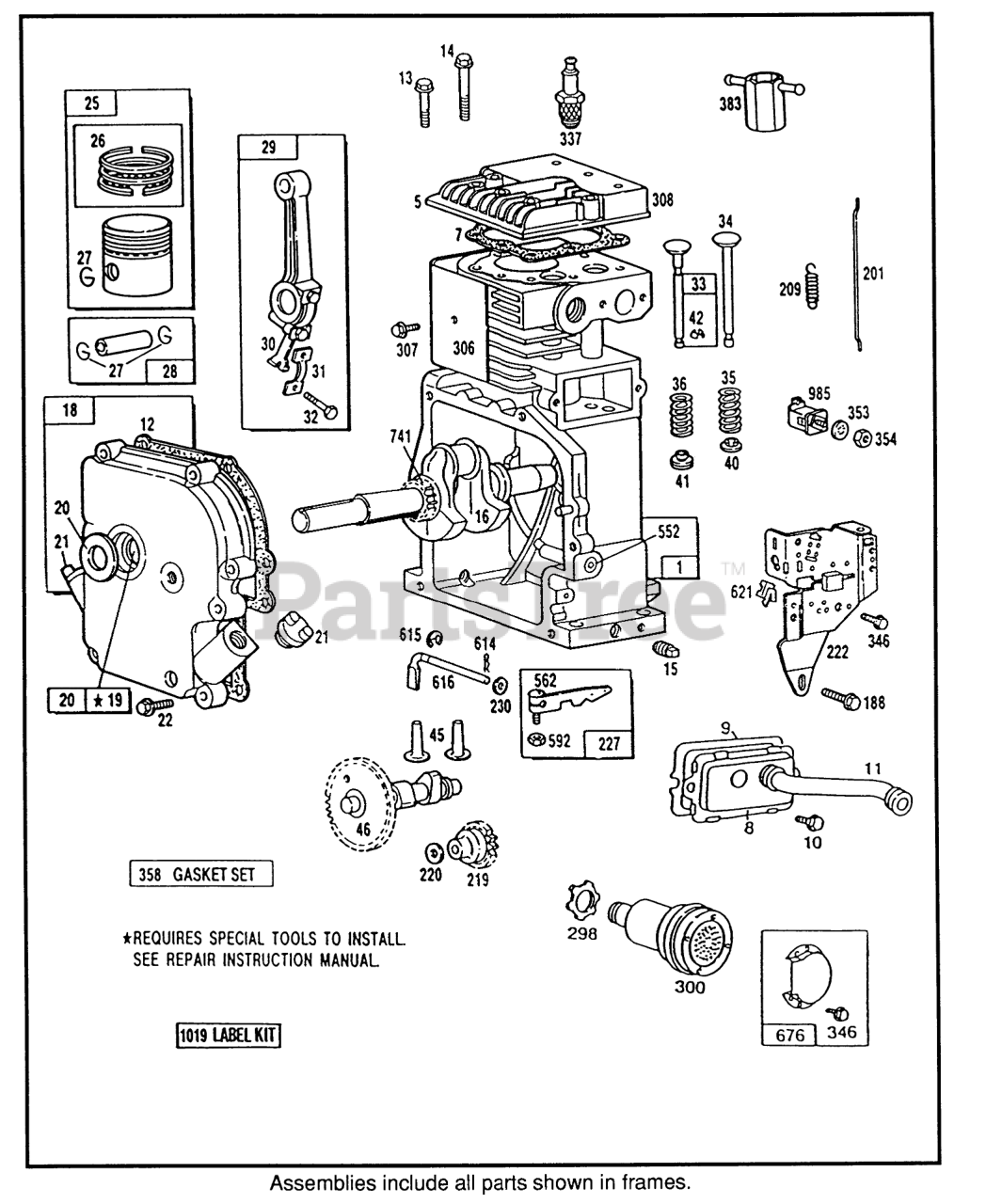

ENGINE BRIGGS & STRATTON MODEL 190406 TYPE 3104-01 Parts Diagram

  • Title

1

Briggs & Stratton 396178

Cylinder Assembly

$425.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 212918

Head-Cylinder

$51.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272163

Gasket-Cylinder Hd.
(Superseded to 272163S)

Note: Included in Gasket Set Num 299577.

$7.99

$

In Stock, Qty 16

0

8

Briggs & Stratton 390321

Breather Assembly
(Superseded to 495724)

$122.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set Num 299577.

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280733

Tube-Breather

$13.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 27750

Gasket-Crankcase Cover 1/64" Thick
(Superseded to 692221)

Note: Included in Gasket Set Num 299577.

$8.99

$

In Stock, Qty 11

0

Briggs & Stratton 27876

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set Num 299577.

$8.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 27876

Gasket-Crankcase (.005" Thick)

Note: Not illustrated

$8.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 27877

33154A,55A,60A W/FO

Note: Not illustrated

$10.99

$

In Stock, only 3 left!

0

Briggs & Stratton 27877

33154A,55A,60A W/FO

Note: Included in Gasket Set Num 299577.

$10.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 93211

Screw-Cylinder Head
(Superseded to 592244)

$3.49

$

In Stock, Qty 16

0

14

Briggs & Stratton 93113

Screw-Cylinder Head
(Superseded to 690912)

$3.99

$

In Stock, Qty 16

0

15

Briggs & Stratton 91084

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 17

0

Briggs & Stratton 93418

Plug
(Superseded to 691680)

Note: Not illustrated

$5.99

$

In Stock, only 4 left!

0

16

Briggs & Stratton 492456

Crankshaft

$

$

Not available

18

Briggs & Stratton 392818

Cover-Crankcase

$

$

Not available

19

Briggs & Stratton 295964

Bushing

$35.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

21

Briggs & Stratton 66768

Plug-Oil
(Superseded to 281658S)

$4.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, Qty 7

0

25

Briggs & Stratton 391673

Piston Assy.-Std.
(Superseded to 499907)

$78.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391674

Piston Assy.-.010" OS.

Note: Not illustrated

$

$

Not available

Briggs & Stratton 391675

Piston Assy.-.020" OS.
(Superseded to 499909)

Note: Not illustrated

$149.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391676

Piston Assembly

Note: Not illustrated

$

$

Not available

26

Briggs & Stratton 391669

Ring & Piston-Std.
(Superseded to 499921)

$47.99

$

In Stock, only 1 left!

0

Briggs & Stratton 391670

Ring Set (.010" O.S.)

Note: Not illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391671

Ring Set (.020" O.S.)
(Superseded to 690019)

Note: Not illustrated

$59.99

$

In Stock, only 1 left!

0

Briggs & Stratton 391672

Ring Set (.030" O.S.)

Note: Not illustrated

$

$

Not available

27

Briggs & Stratton 68546

Lock-Piston Pin
(Superseded to 691073)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295840

Assembly-Piston-Std
(Superseded to 499302)

$15.99

$

In Stock, only 1 left!

0

Briggs & Stratton 295841

Pin-Piston (.005" O.S.)

Note: Not illustrated

$6.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390401

Rod Assy.-Connecting

$39.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 222113

Dipper-Conn. Rod
(Superseded to 691728)

$8.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222114

Lock-Conn. Rod Screw

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92659

Screw Conn. Rod
(Superseded to 690352)

$6.99

$

In Stock, only 4 left!

0

33

Briggs & Stratton 390419

Valve-Exhaust
(Superseded to 691794)

$

$

Not available

34

Briggs & Stratton 261055

VaIve-Intake
(Superseded to 261055S)

$32.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 65906

Spring-Valve
(Superseded to 691605)

$6.99

$

In Stock, Qty 8

0

36

Briggs & Stratton 26828

Spring-Valve
(Superseded to 691597)

$10.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 221596

Retainer-Valve
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Retainer-Valve
(Superseded to 691939)

$27.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 93630

Retainer-Rotocoil
(Superseded to 494553)

$7.99

$

In Stock, only 1 left!

0

45

Briggs & Stratton 260933

Tappet-Valve
(Superseded to 691793)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 211689

Gear-Cam
(Superseded to 691167)

$36.99

$

Usually ships in 2-12 days

0

53A

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

201

Briggs & Stratton 260872

Link-Governor

$

$

Not available

209

Briggs & Stratton 261126

Spring-Gov.
(Superseded to 796261)

$6.49

$

In Stock, only 4 left!

0

219

Briggs & Stratton 391737

Gear Governor

$38.99

$

In Stock, only 4 left!

0

220

Briggs & Stratton 221551

Washer-Thrust
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

222

Briggs & Stratton 399156

Plate-Governor Control

$45.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 391965

Lever Assy.-Governor
(Superseded to 692356)

$1.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

298

Briggs & Stratton 261409

Locknut-Mufler
(Superseded to 690453)

$4.49

$

In Stock, Qty 10

0

300

Briggs & Stratton 393010

Muffler-Exhaust
(Superseded to 393010S)

$22.99

$

In Stock, only 2 left!

0

306

Briggs & Stratton 223374

Shield-Cylinder
(Superseded to 496797)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93163

Screw
(Superseded to 691003)

$3.49

$

In Stock, only 2 left!

0

308

Briggs & Stratton 221901

Cover-Cylinder Head

$9.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

353

Briggs & Stratton 92791

Washer-Lock
(Superseded to 691077)

$3.49

$

Usually ships in 2-12 days

0

354

Briggs & Stratton 90576

Nut
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

358

Briggs & Stratton 299577

Gasket Set

$35.99

$

In Stock, only 4 left!

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

474

Briggs & Stratton 391595

Stator-Alternator

$98.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 491893

Bushing-Gov. Crank

$107.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt

$

$

Not available

592

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 11

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 4 left!

0

616

Briggs & Stratton 231057

Ring-Retainer
(Superseded to 692015)

$16.99

$

In Stock, only 2 left!

0

621

Briggs & Stratton 396847

Switch
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

676

Briggs & Stratton 393757

Deflector-Exhaust
(Superseded to 796956)

$10.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 262479

Gear-Timing
(Superseded to 691288)

$21.99

$

Usually ships in 2-12 days

0

985

Briggs & Stratton 398525

Insulator
(Superseded to 691972)

$8.49

$

In Stock, Qty 6

0

1019

Briggs & Stratton 491181

Decal Kit

$40.99

$

Usually ships in 2-12 days
