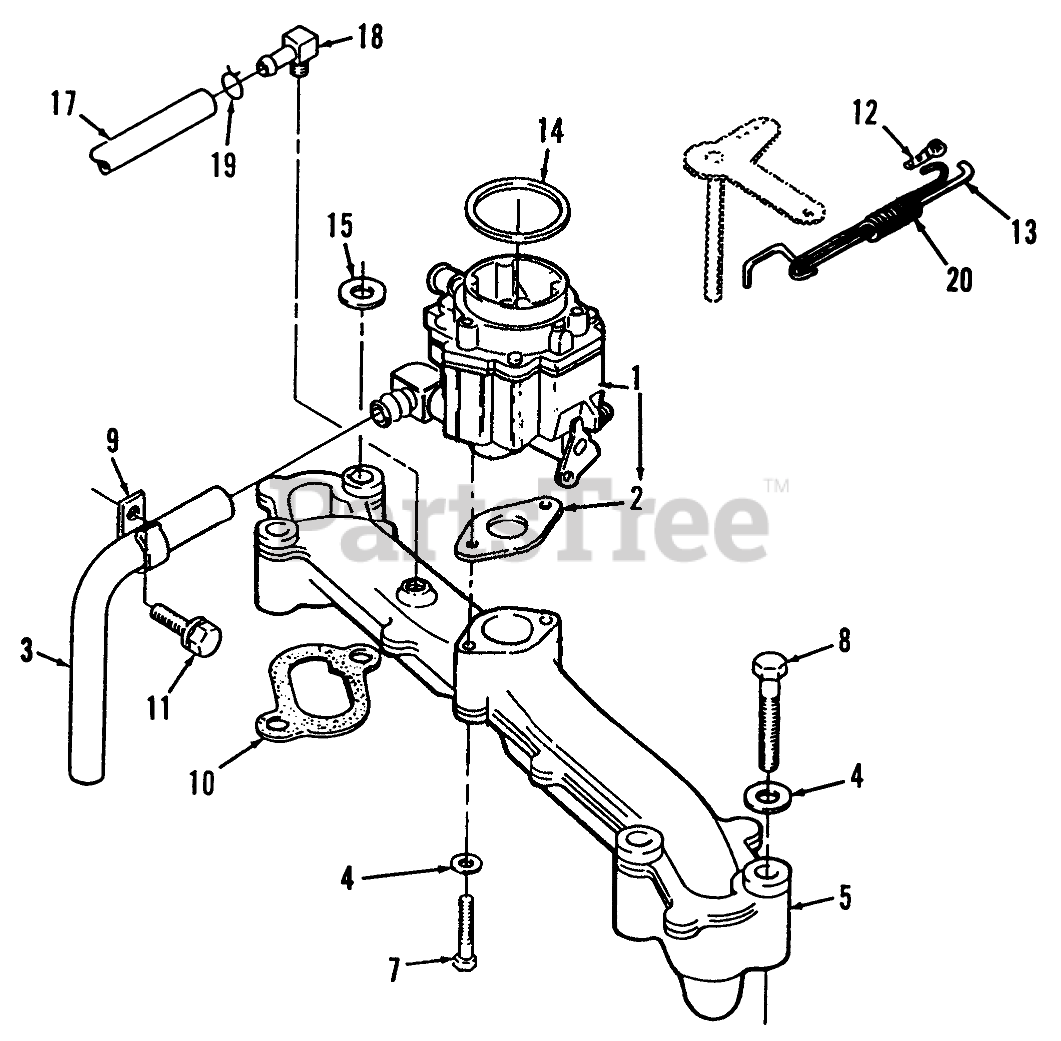

41-20OE02 (520-H) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) TORO POWER PLUS INTAKE MANIFOLD Parts Diagram

Garden Tractor

TORO POWER PLUS INTAKE MANIFOLD Parts Diagram

  • Title

1

Toro NN10855

Carburetor, Complete (Includes Mounting Gasket, Elbow and O-Ring)(See Separate Page for Components)
(Superseded to NN10204)

$

$

Not available

2

Toro 57-9200

Gasket
(Superseded to 82-0850)

$11.99

$

In Stock, only 1 left!

0

4

Toro 82-1350

WASHER-FLAT

$

$

Not available

5

Toro 92-0918

MANIFOLD

$

$

Not available

6

Toro 82-1350

WASHER-FLAT

$

$

Not available

7

Toro 82-1410

Bolt
(Superseded to NN10545)

$

$

Not available

8

Toro NN10375

HHCS

$

$

Not available

9

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

10

Toro 71-5980

GASKET

$14.99

$

In Stock, Qty 5

0

11

Toro 82-1540

SCREW-HWH

$

$

Not available

12

Toro NN10342

Retaining Clip
(Superseded to 57-9700)

$5.49

$

In Stock, only 1 left!

0

13

Toro NN10897

Governor Control Rod
(Superseded to 57-9160)

$

$

Not available

14

Toro 57-9620

SEAL

$6.99

$

Usually ships in 3-6 days

0

15

Toro NN10362

FLAT WASHER

$

$

Not available

Toro NN10856

HOSE

$

$

Not available

Toro NN10857

HOSE

$19.99

$

Usually ships in 3-6 days

0

16

Hose, Fuel

$

$

Not available

17

Toro 82-1120

HOSE-RUBBER, BREATHER

$

$

Not available

18

Toro 82-1070

FITTING-BARB

$

$

Not available

19

Toro 82-1080

CLAMP-HOSE

$7.49

$

In Stock, only 4 left!

0

Toro 82-1090

CLAMP-HOSE, BREATHER

$

$

Not available

20

Toro NN10877

Spring-Governor Rod
(Superseded to NN10928)

$

$

Not available
