42-16BE01 (246-H) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) ENGINE TORO POWER PLUS Parts Diagram

Yard Tractor

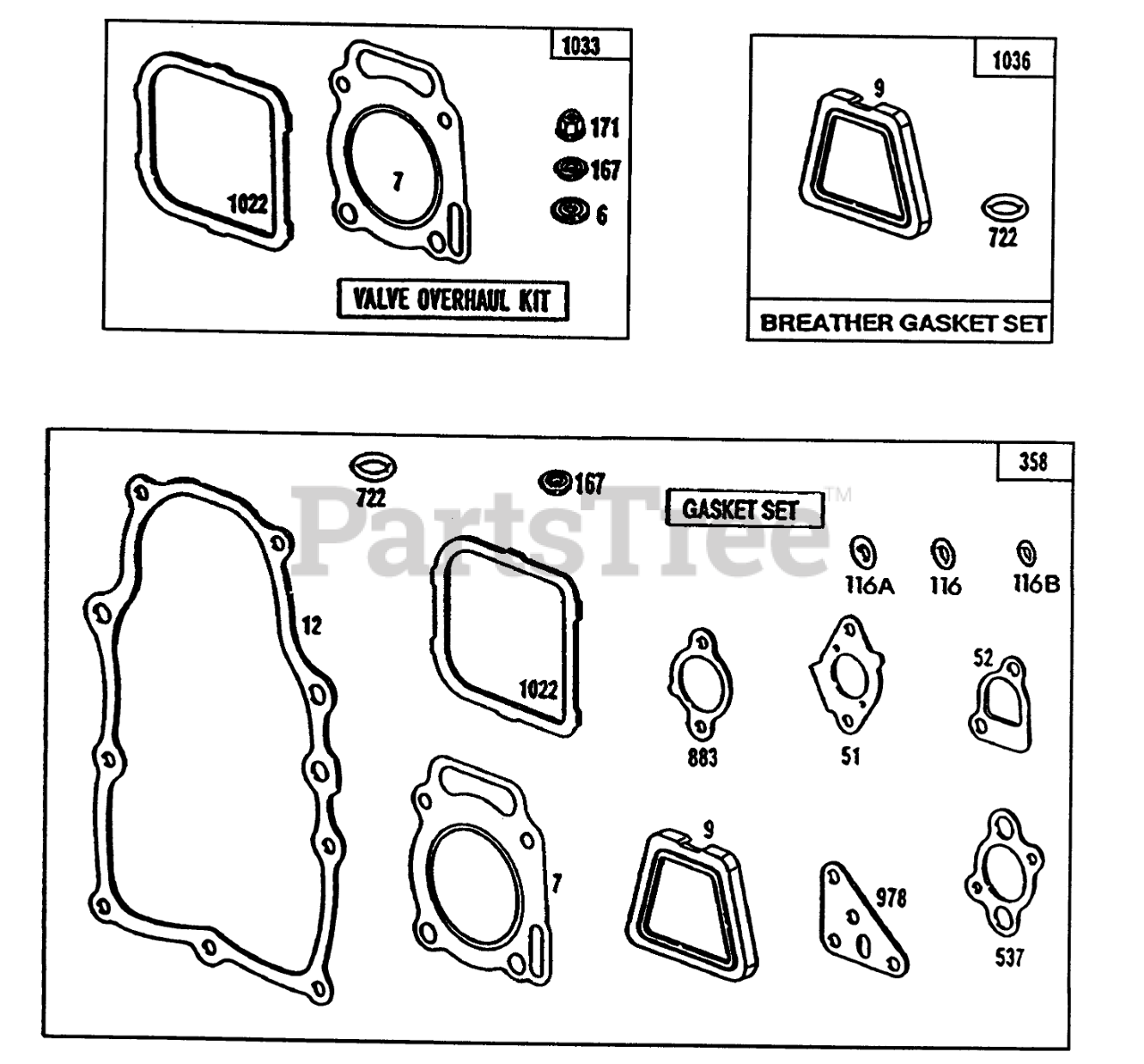

ENGINE TORO POWER PLUS Parts Diagram

  • Title

6

Toro 78-3460

Washer

Note: Included In Valve Overhaul Kit Part No. 92-0542

$

$

Not available

7

Toro 92-3670

ANGLE-BOOM MOUNT, RH

Note: Included in Gasket Set No. 92-0540

$80.99

$

Usually ships in 3-6 days

0

9

Toro 78-3490

Gasket

Note: Included In Valve Overhaul Kit Part No. 92-0542

$

$

Not available

12

Toro 78-4230

Screen

$

$

Not available

51

Toro 78-3770

Gasket

Note: Included In Valve Overhaul Kit Part No. 92-0542

$

$

Not available

52

Toro 78-3780

Gasket-Intake Manifold

Note: Included In Valve Overhaul Kit Part No. 92-0542

$

$

Not available

116

Toro 78-3910

"O"Ring

Note: Included In Valve Overhaul Kit Part No. 92-0542

$

$

Not available

116A

Toro 78-3920

"O"Ring

Note: Included In Valve Overhaul Kit Part No. 92-0542

$

$

Not available

116B

Kit-Gasket Sealing

Note: Included in Gasket Set No. 92-0540

$

$

Not available

167

Toro 78-4080

Washer

Note: Included In Valve Overhaul Kit Part No. 92-0542

$

$

Not available

171

Toro 78-4090

Nut

Note: Included In Valve Overhaul Kit Part No. 92-0542

$

$

Not available

265

Toro 77-8280

CLAMP - CASING
(Superseded to 2210-249)

$3.49

$

Usually ships in 3-6 days

0

358

Toro 92-0540

Set-Gasket

$

$

Not available

537

Toro 92-0531

Gasket-Air Cleaner

Note: Included In Valve Overhaul Kit Part No. 92-0542

$

$

Not available

722

Toro 92-0541

Seal-Breather Screw

Note: Included In Valve Overhaul Kit Part No. 92-0542

$

$

Not available

883

Toro 78-5040

GSKT-EXHST MANIFOLD

Note: Included In Valve Overhaul Kit Part No. 92-0542

$

$

Not available

978

Toro 78-5160

Gasket

Note: Included In Valve Overhaul Kit Part No. 92-0542

$

$

Not available

1022

Toro 78-5240

Gasket

Note: Included In Valve Overhaul Kit Part No. 92-0542

$

$

Not available

1033

Toro 92-0542

Kit-Valve Overhaul

$

$

Not available

1036

Toro 92-0543

Set-Breather Gasket

$

$

Not available
