47316 - Gravely Pro-Master Series Grass Bagger GRASS CATCHER Parts Diagram

Pro-Master Series Grass Bagger

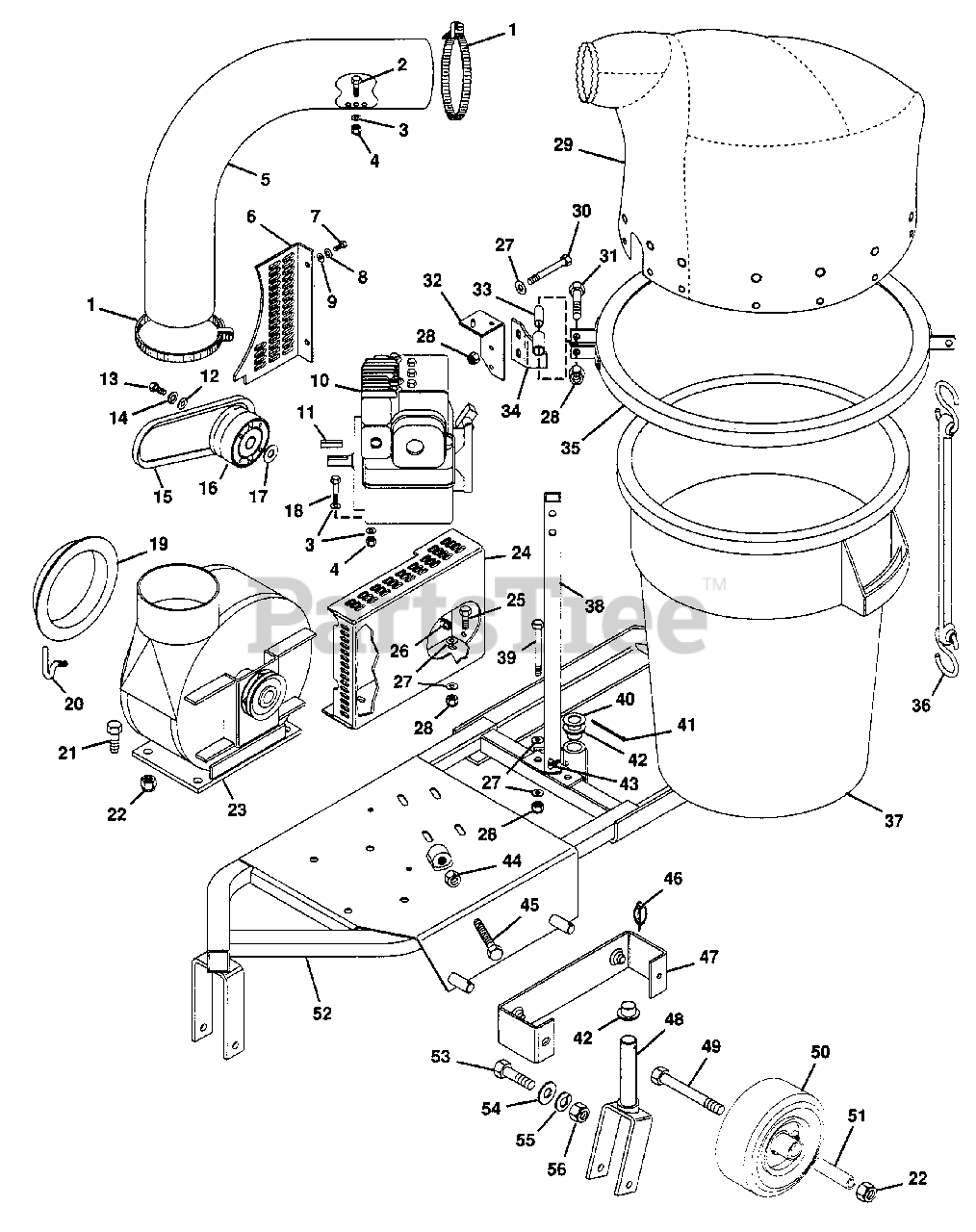

GRASS CATCHER Parts Diagram

  • Title

1

Gravely 036996

Clamp
(Superseded to 03022400)

$17.99

$

Usually ships in 4-12 days

0

2

Gravely 180079

Bolt, Hex 5/16-18x1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

3

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

4

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

5

Gravely 048917

Tube, Catcher
(Superseded to 59209400)

$

$

Not available

6

Gravely 042217

Cover, Guard
(Superseded to 08941700)

$39.99

$

Usually ships in 4-12 days

0

7

Gravely 180020

Bolt, Hex 1/4-20x.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

8

Gravely 120380

Washer, Lock 1/4 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

9

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

10

Gravely 042214

Engine, 5.2 HP Kawasaki

$

$

Not available

11

Gravely 012672

Key, Hub .187x1.500
(Superseded to 06609600)

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 446354

Washer, Flat .313x.875x.065
(Superseded to 06430700)

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 181595

Bolt, Hex 5/16-24x.75
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 120214

Washer, Lock 5/16 Reg.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 042233

V-Belt
(Superseded to 07221100)

$

$

Not available

16

Gravely 042215

Clutch
(Superseded to 08941500)

$362.99

$

Usually ships in 4-12 days

0

17

Gravely 006742

Race, Bearing Thrust .060
(Superseded to 06431900)

$9.49

$

Usually ships in 4-12 days

0

18

Gravely 180085

Bolt, Hex 5/16-18x1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

19

Gravely 038585

Adaptor, Hose
(Superseded to 03053700)

$11.99

$

Usually ships in 4-12 days

0

20

Gravely 042543

Handle, Locking
(Superseded to 03444800)

$51.99

$

Usually ships in 4-12 days

0

21

Gravely 180175

Bolt, Hex 1/2-13x1.25
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 049635

Assembly, Blower Housing

$

$

Not available

24

Gravely 045569

Guard
(Superseded to 08970200)

$

$

Not available

25

Gravely 180121

Bolt, Hex 3/8-16x.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

26

Gravely 032369

Nut, Retainer
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

29

Gravely 043002

Cover, Grass Catcher
(Superseded to 08944900)

$

$

Not available

30

Gravely 180134

Bolt, Hex 3/8-16x2.50
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

31

Gravely 180130

Bolt, Hex 3/8-16x2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 13

0

32

Gravely 042232

Bracket, Tube
(Superseded to 08942700)

$

$

Not available

33

Gravely 019263

Bushing, .385x.625x1.00
(Superseded to 08559600)

$5.99

$

Usually ships in 4-12 days

0

34

Gravely 042998

Weldment, Pivot Bracket
(Superseded to 08944600)

$

$

Not available

35

Gravely 042995

Weldment, Ring
(Superseded to 08944300)

$

$

Not available

36

Gravely 043001

Strap, Hold Down
(Superseded to 07528100)

$

$

Not available

37

Gravely 038085

Can, Grass
(Superseded to 08707400)

$

$

Not available

38

Gravely 050437

Weldment, Ring Support
(Superseded to 08995200)

$

$

Not available

39

Gravely 126705

Bolt, 3/8-16x3
(Superseded to 21052400)

$

$

Not available

40

Gravely 019340

Race, Bearing Thrust
(Superseded to 06435300)

$4.99

$

In Stock, only 4 left!

0

41

Gravely 137204

Pin, Cotter .125x1.500
(Superseded to 06714300)

$1.99

$

In Stock, only 1 left!

0

42

Gravely 022098

Bearing, Flanged
(Superseded to 05422400)

$14.99

$

Usually ships in 4-12 days

0

43

Gravely 411032

Fitting, Lube 90 Degree
(Superseded to 07012800)

$4.99

$

In Stock, Qty 5

0

44

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

45

Gravely 014718

Bolt, Hex Spec. 3/8-16x3.00
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

46

Gravely 023468

Pin, Klik
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

47

Gravely 047323

Weldment, Catcher Mount
(Superseded to 08981700)

$

$

Not available

48

Gravely 031865

Weldment, Caster
(Superseded to 08730400)

$

$

Not available

49

Gravely 445608

Bolt, Hex 1/2-13x5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

50

Gravely 031870

Wheel, Wing Gauge
(Superseded to 07128500)

$

$

Not available

51

Gravely 031871

Bushing, Axle
(Superseded to 08821900)

$

$

Not available

52

Gravely 047324

Weldment, Catcher
(Superseded to 08981800)

$

$

Not available

53

Gravely 428697

Bolt, Hex 5/8-11x2.50
(Superseded to 05969300)

$4.99

$

In Stock, only 2 left!

0

54

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

55

Gravely 121574

Washer, Lock 5/8 SP
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

56

Gravely 418692

Nut, Lock 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, Qty 14

0

NS

Gravely 049717

Bar, Reinforcing
(Superseded to 08991500)

$

$

Not available
