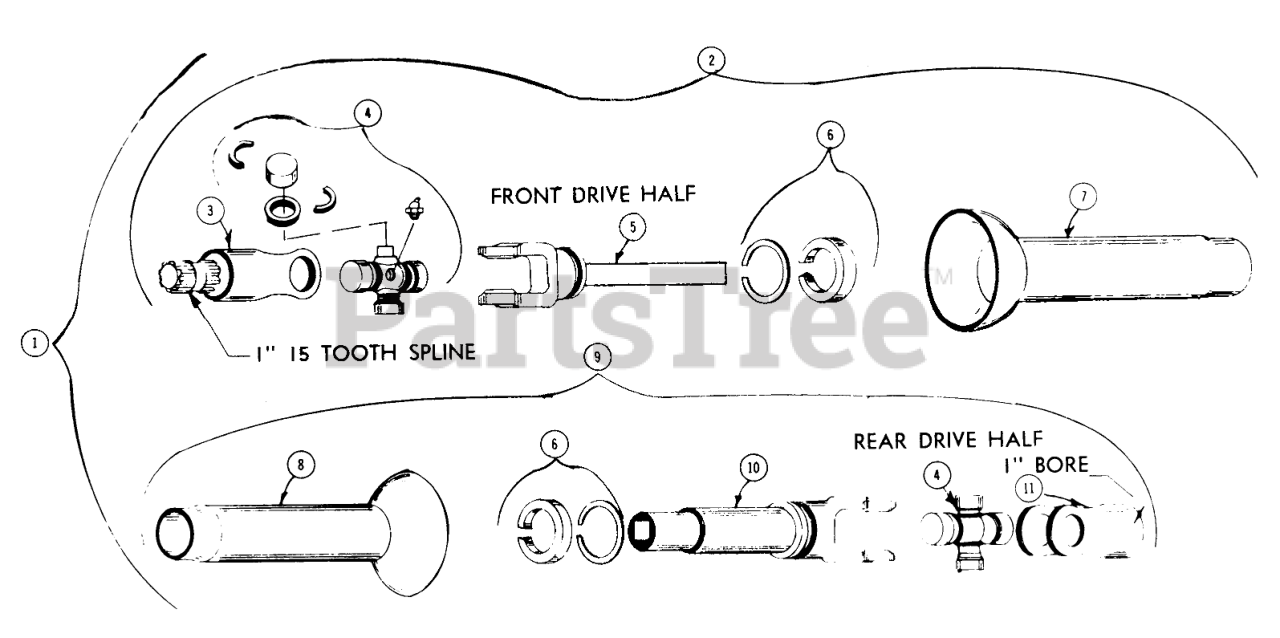

5-0900 - Toro 60" Rear Mount Mower Deck (1974) DRIVE COMPLETE WITH SHIELDING Parts Diagram

60" Rear Mount Mower Deck

DRIVE COMPLETE WITH SHIELDING Parts Diagram

  • Title

1

Toro 103284

Bottom Pivot Lever

$

$

Not available

2

Toro 103286

Right Hand Pivot Lever, Top

$

$

Not available

3

Toro 103287

1 " Spline Male Yoke

$

$

Not available

4

Toro 103288

Cross Kit Complete (Individual Parts Not Sold Separately)

$

$

Not available

5

Toro 103289

Back Bar

$

$

Not available

6

Toro 103290

Back Bar Plate

$

$

Not available

7

Toro 103291

Outer U Jt. Shield 8" Long

$

$

Not available

8

Toro 103292

Inner U Jt. Shield 8 3/4 Long

$

$

Not available

9

Toro 103285

Left Hand Pivot Lever, Top

$

$

Not available

10

Toro 103293

9 1/2 Long Tubular Shaft & Weld Weld Yoke

$

$

Not available

11

Toro 103294

1" Straight Bore Yoke

$

$

Currently unavailable
