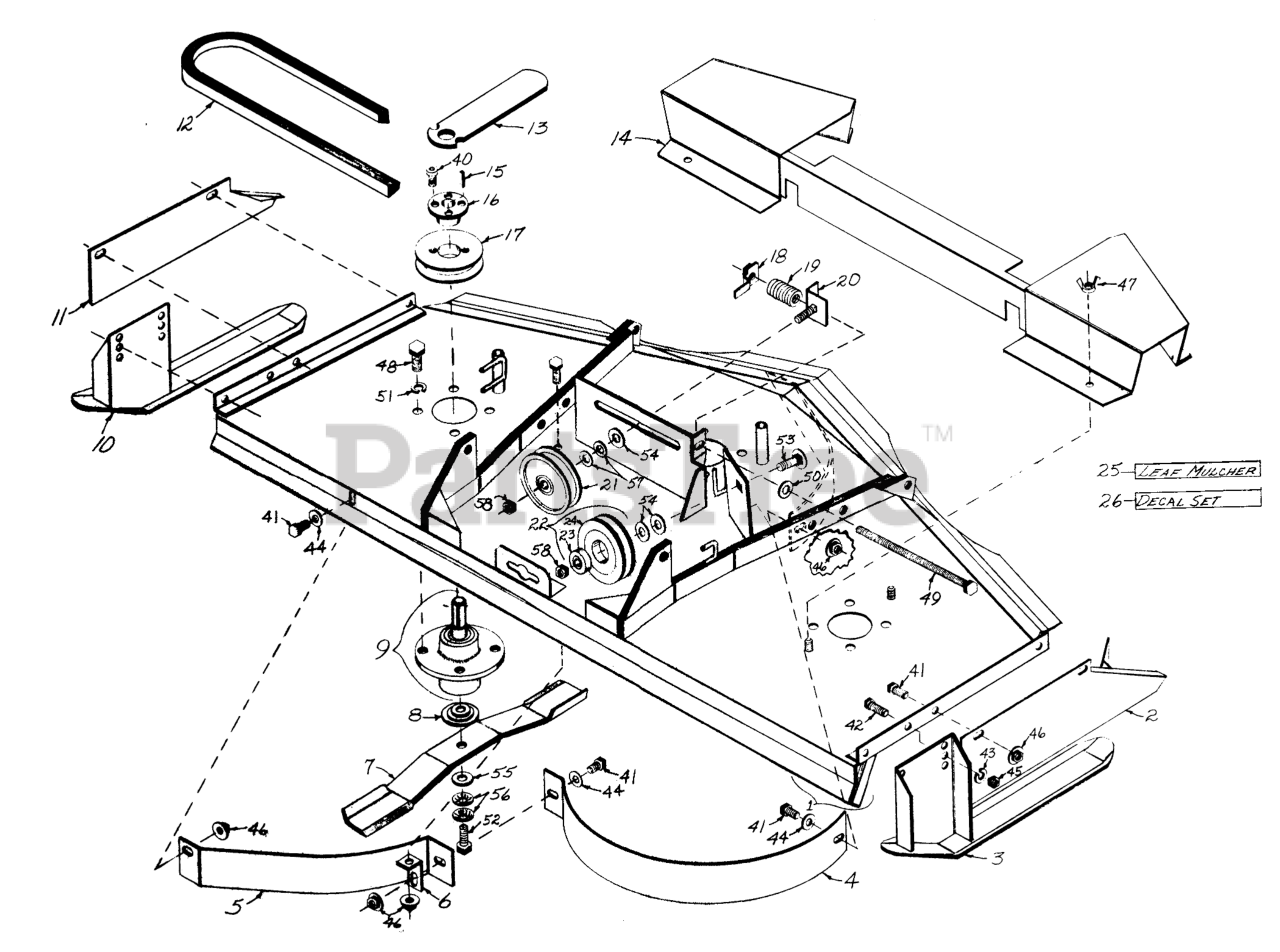

5-0901 - Toro 60" Rear Mount Mower Deck (1975) MAIN FRAME PARTS LIST Parts Diagram

60" Rear Mount Mower Deck

MAIN FRAME PARTS LIST Parts Diagram

  • Title

1

Toro 103229

Frame Only

$

$

Currently unavailable

2

Toro 103258

Left Side Shield

$

$

Not available

3

Toro 103230

Blade Bar

$

$

Not available

4

Toro 103297

Center Front Baffle

$

$

Not available

5

Toro 103296

Right Front Baffle

$

$

Not available

6

Toro 103295

Baffle Mounting Lug

$

$

Not available

7

Toro 103231

Blade
(Superseded to 101682)

$

$

Not available

8

Toro 103232

Twill Guard

$

$

Currently unavailable

9

Blade Spindle Assembly (See Page 9)

$

$

Not available

10

Toro 103235

Right Side Skid

$

$

Not available

11

Toro 103257

Right Side Shield

$

$

Not available

12

Toro 103236

V BELT

$356.99

$

Usually ships in 3-6 days

0

13

Toro 103237

Spindle Lock Wrench

$

$

Not available

14

Toro 103248

Tire 4.00 x 8

$

$

Currently unavailable

15

Toro 103238

Attaching Bracket

$

$

Not available

16

Toro 103239

Push Rod

$

$

Not available

17

Toro 103240

Sheave 3.9 PD

$

$

Not available

18

Toro 103244

Right Hand Grass Deflector

$

$

Currently unavailable

19

Toro 103243

Ledger Plate

$

$

Currently unavailable

20

Toro 103242

Idler Takeup Bolt and Clip

$

$

Currently unavailable

21

Toro 103241

4 7/16 OD Flat Idler Pulley

$

$

Not available

22

Toro 103245

Spring

$

$

Not available

23

Toro 103246

U Bolt

$

$

Not available

24

Toro 103247

4 1/2 OD V-ldler Sheave Less Bearing

$

$

Not available

25

Leaf Mulcher (See Page 11)

$

$

Not available

26

Toro 103308

DECAL SET

$

$

Not available

40

Toro 911039-4

1/4 NC x 3/4 Socket Head Cap Screw

$

$

Currently unavailable

41

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

42

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

43

Toro 920083-4

Lockwasher

$

$

Currently unavailable

44

Toro 920009-4

Washer

$

$

Currently unavailable

45

Toro 915113-4

Nut

$

$

Currently unavailable

46

Toro 915974-4

Nut, Jam, 3/8-24 Thd

$

$

Currently unavailable

47

Toro 915586-4

3/8 NC Wing Nut

$

$

Currently unavailable

48

Toro 908206-4

1/2 NF x 1 Hex Head Cap Screw

$

$

Currently unavailable

49

Toro 103249

Tube 5.00 x 8

$

$

Currently unavailable

50

Toro 920011-4

Washer

$

$

Currently unavailable

51

Toro 920085-4

Lockwasher

$

$

Currently unavailable

52

Toro 103298

Safety Pin

$

$

Not available

53

Toro 900147-4

5/8 NC x 2 Carriage Bolt

$

$

Currently unavailable

54

Toro 920013-4

Washer, 5/8

$

$

Currently unavailable

55

Toro 920043-4

5/8 Standard Flat Washer

$

$

Currently unavailable

56

Toro 103299

5/8 Cup Washer

$

$

Not available

57

Toro 103300

Shovel Support, Straight

$

$

Currently unavailable

58

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable
