5-1780 - Toro 36" Side-Discharge Mower Deck (1975) A-65 PARTS MANUAL E21.000 36" MOWING UNIT FACTORY ORDER NUMBER 5-1780 Parts Diagram

36" Side-Discharge Mower Deck

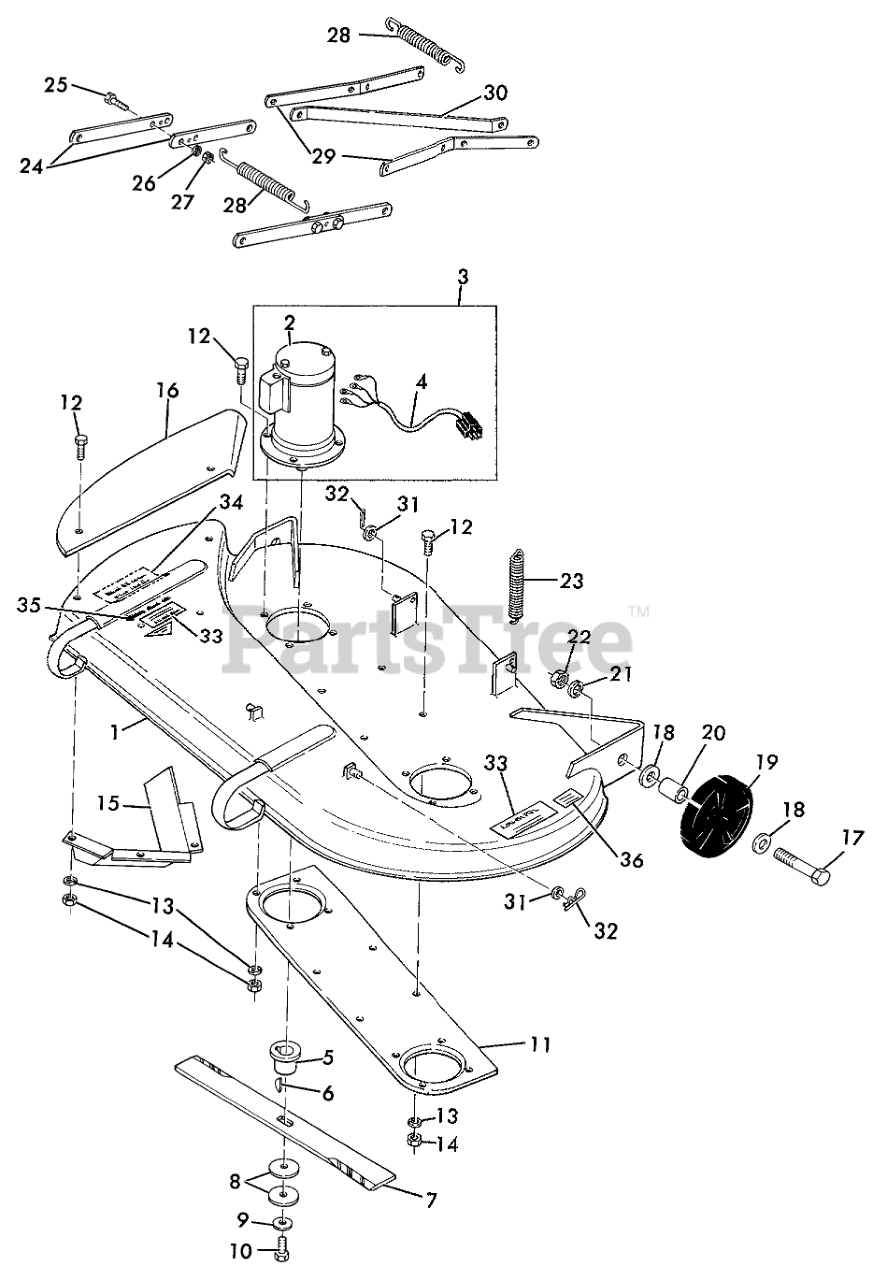

A-65 PARTS MANUAL E21.000 36" MOWING UNIT FACTORY ORDER NUMBER 5-1780 Parts Diagram

  • Title

1

Toro 523068

Housing Assembly

$

$

Currently unavailable

2

Toro 521106

Motor & Wiring Harness Assembly

$

$

Not available

3

Toro 515761

Motor

$

$

Currently unavailable

4

Toro 517304

Wiring Harness

$

$

Not available

5

Toro 518121

Clutch, Mower Blade

$

$

Not available

6

Toro 517792

Key, Woodruff

$

$

Not available

7

Toro 517133

Blade, Mower
(Superseded to 200866)

$

$

Not available

8

Toro 518117

Fiber Washer

$

$

Not available

9

Toro 518132

Washer, Clutch

$

$

Not available

10

Toro 520390

Cap Screw, Self Locking 3/8-24 x 1 1/4

$

$

Not available

11

Toro 515839

Stiffener Plate

$

$

Not available

12

Toro 513315

Bolt, 1/4-20 x 5/8
(Superseded to 321-3)

$1.49

$

In Stock, Qty 15

0

13

Toro 513511

Lockwasher, 1/4

$

$

Currently unavailable

14

Toro 513292

Nut, 1/4-20
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

15

Toro 515677

Baffle

$

$

Not available

16

Toro 520457

Chute Extension

$

$

Not available

17

Toro 513366

Bolt, Hex 3/8-16 x 2 3/4
(Superseded to 323-13)

$1.99

$

In Stock, Qty 20+

0

18

Toro 513469

Washer-3/8
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

19

Toro 517274

Wheel

$

$

Not available

20

Toro 518070

Bushing

$

$

Not available

21

Toro 513517

Lockwasher 3/8
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

22

Toro 513278

Nut, Hex 3/8-16

$

$

Currently unavailable

23

Toro 519552

Spring, Lift

$

$

Not available

24

Toro 520909

Mower Arm, Front

$

$

Not available

25

Toro 513624

Carriage Bolt, 5/16-18 x 1
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 12

0

26

Toro 513515

Lockwasher-5/16
(Superseded to 325-34)

$3.99

$

In Stock, Qty 6

0

27

Toro 513295

Cotter Pin
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

28

Toro 520966

Spring, Mower Arm

$

$

Not available

29

Toro 520860

Mower Arm, Rear

$

$

Not available

30

Toro 520981

Stabilizer Bar

$

$

Currently unavailable

31

Toro 513459

Washer, 1/2
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

32

Toro 513558

Cotter Pin 1/8 x 1
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

33

Toro 523071

Decal-Caution

$

$

Not available

34

Toro 104356

Decal-Caution
(Superseded to 66-1340)

$10.99

$

In Stock, only 4 left!

0

35

Toro 104903

Decal-Edge of Cut

$

$

Not available

36

Toro 520176

Decal, Mower Height Adj.

$

$

Currently unavailable
