51170 - Toro 20" Walk-Behind Mower, Electric (SN: 001000001 - 001999999) (1981) SPOOL AND DRUM ASSEMBLY Parts Diagram

20" Walk-Behind Mower, Electric

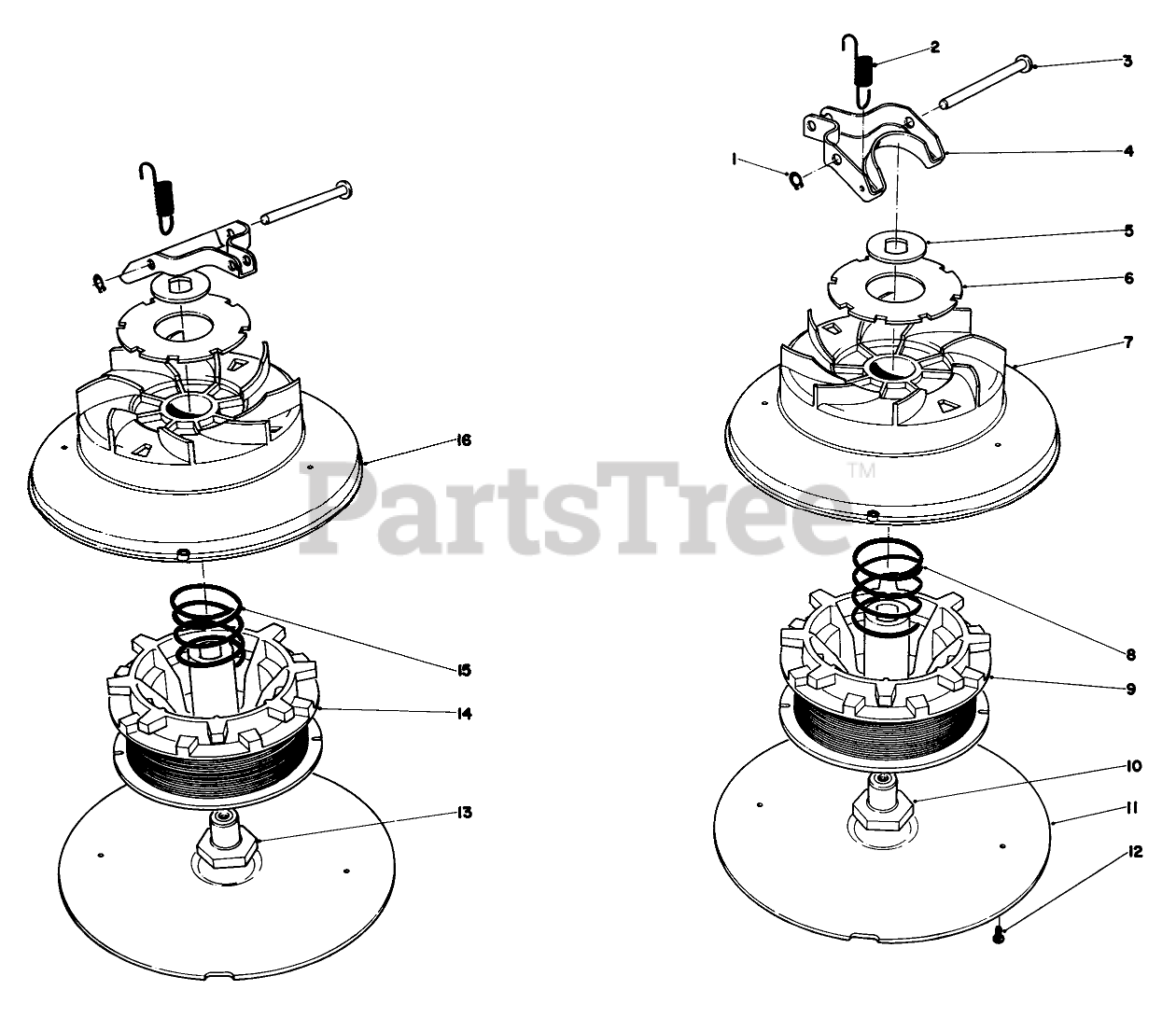

SPOOL AND DRUM ASSEMBLY Parts Diagram

  • Title

1

Toro 32151-64

Retaining Ring

$

$

Not available

2

Toro 34-1000

Spring-Fork

$

$

Not available

3

Toro 34-1010

Pivot Pin

$

$

Not available

4

Toro 34-0490

Indexing Fork

$

$

Not available

5

Toro 40-9650

WASHER

$

$

Not available

7

Toro 43-5730

Drum L.H. (Incl. Ref. #6)

$223.99

$

Usually ships in 3-6 days

0

8

Toro 34-0420

COMP SPRING

$

$

Not available

9

Spool Assy. L.H.

$

$

Not available

10

Toro 41-9640

NUT LH

$

$

Not available

11

Toro 41-9560

DRUM COVER

$

$

Not available

12

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

13

Toro 41-9630

NUT RH

$

$

Not available

14

Spool Assy. R.H.

$

$

Not available

15

Toro 34-0210

Spring R.H.

$

$

Not available

16

Toro 43-5740

Drum R.H. (Incl. Ref. #6)

$

$

Not available

Toro 88070

Spool Package (Incl. Ref. #9 & 14)

Note: Not illustrated

$

$

Not available
