51561 (710) - Toro String Trimmer, Electric (SN: 010000001 - 019999999) (1991) UPPER CASE ASSEMBLY Parts Diagram

String Trimmer, Electric

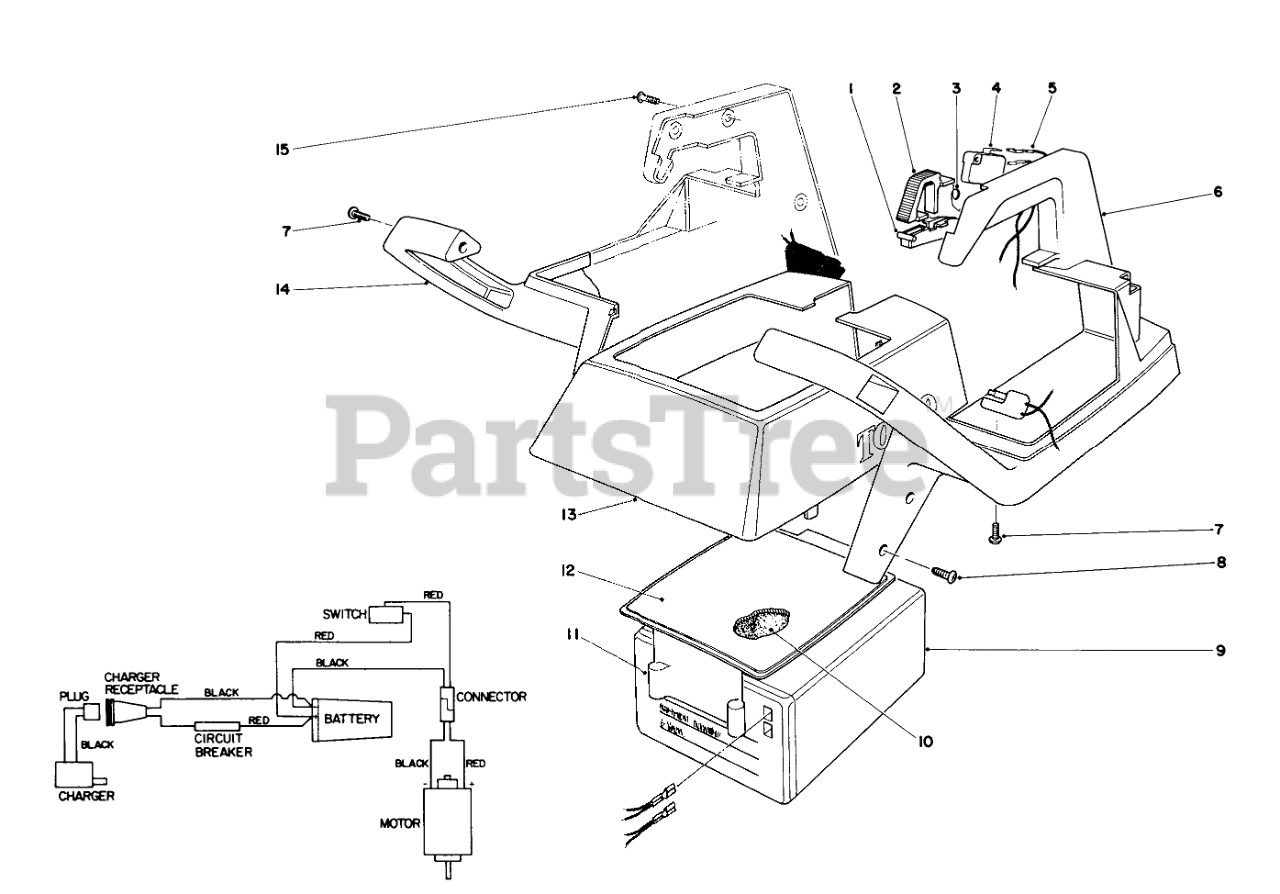

UPPER CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 33-6630

TRIGGER

$

$

Not available

2

Toro 33-6620

TRIGGER LOCK

$

$

Not available

3

Toro 33-6670

SPRING

$

$

Not available

4

Toro 33-6610

Switch

$

$

Not available

5

Toro 33-9660

Wiring Harness

$

$

Not available

6

Toro 34-5840

LH BATTERY CASE/HNDL

$

$

Not available

7

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

8

Toro 32144-30

10-16 X .31 SCREW

$2.49

$

Usually ships in 3-6 days

0

9

Toro 33-6651

Battery

$

$

Currently unavailable

Toro 73-4370

Label-Battery

$

$

Not available

10

Toro 33-6830

FOAM PAD

$

$

Not available

11

Toro 33-6541

CONTROL PANEL, CL-710

$

$

Not available

12

Toro 55-7140

DECAL, FRONT PANEL, CSA

$

$

Not available

13

Toro 33-9792

COVER,CL710,HOTSTAMPED

$

$

Not available

14

Toro 34-5830

RH BATTERY CASE/HNDL

$

$

Not available

15

Toro 32104-118

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

Toro 33-6730

BATTERY CHARGER

$94.99

$

In Stock, only 1 left!

0

Toro 34-1160

Loose Parts-(Incl. Ref. #8)

$

$

Not available
