51620 - Toro 31cc Curved Shaft Trimmer (SN: 049000001 - 049999999) (1994) ENGINE ASSEMBLY MODEL NO. 51638 & 51653 Parts Diagram

31cc Curved Shaft Trimmer

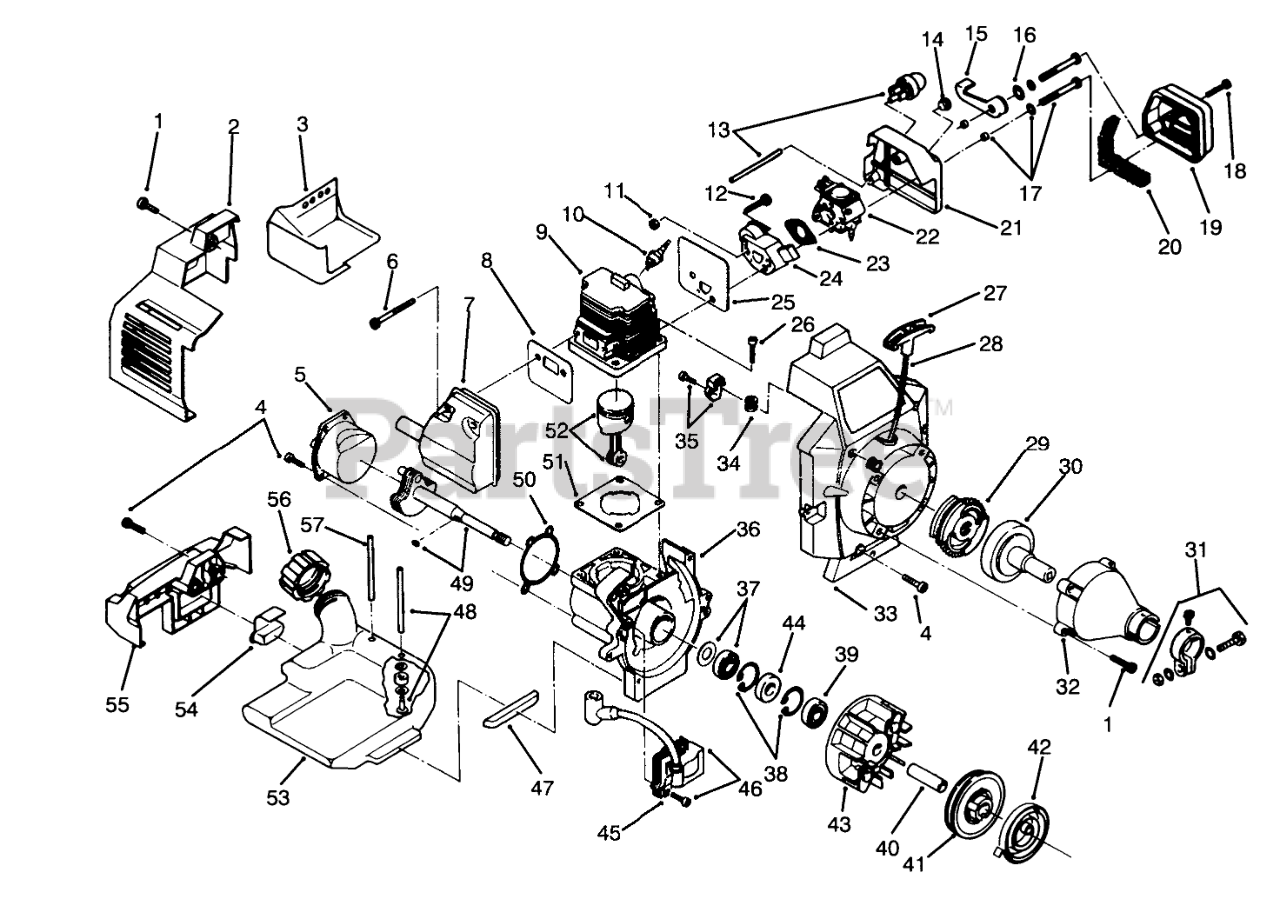

ENGINE ASSEMBLY MODEL NO. 51638 & 51653 Parts Diagram

  • Title

1

Toro 145888

CLUTCH COVER SCREW ASM

$

$

Not available

2

Toro 92-3273

REAR COVER

$

$

Not available

3

Toro 180211

HEAT SHIELD

$

$

Not available

4

Toro 180212

MOUNTING SCREW SET

$

$

Not available

5

Toro 180213

Cap-Crankcase (Incl. Ref. No. 4)

$

$

Not available

6

Toro 180214

MUFFLER MOUNTING SCREWS

$12.99

$

Usually ships in 3-6 days

0

7

Toro 180215

Assembly-Muffler (Incl. Ref. No. 8)

$

$

Not available

8

Toro 180216

MUFFLER GASKET

$

$

Not available

9

Toro 180235

Cylinder (Incl. Ref. No. 51)

$

$

Not available

10

Toro 92-3210

SPARK PLUG

$

$

Not available

11

Toro 180217

SPACER NUT SET

$

$

Not available

12

Toro 180218

SPACER SCREW SET

$

$

Not available

13

Toro 683974

PRIMER & HOSE ASM

$

$

Not available

14

Toro 92-3281

SWITCH PLUG

$

$

Not available

15

Toro 180225

CHOKE LEVER

$

$

Not available

16

Toro 180226

WAVEY WASHER

$

$

Not available

17

Toro 180533

CARB MOUNTING ASM

$

$

Not available

18

Toro 180230

Screw
(Superseded to 68-3070)

$

$

Not available

19

Toro 180229

AIR CLEANER COVER

$

$

Not available

20

Toro 180228

FOAM AIR FILTER ELEMENT

$

$

Not available

21

Toro 180223

Air Cleaner Base Asm.

$

$

Not available

22

Toro 180529

Assembly-Carburetor (Incl. Ref. No. 23)
(Superseded to 181526)

$

$

Not available

23

Toro 612113

CARB.GASKET(PK.10=1)

$

$

Not available

24

Toro 180532

Assembly-Spacer,Carb. (Incl. Ref. No. 11 & 12)

$

$

Not available

25

Toro 180220

CYL/CARB SPACER GASKET

$

$

Not available

26

Toro 180221

SCREW

$

$

Not available

27

Toro 610300

Handle-Pull
(Superseded to 181079)

$14.99

$

Usually ships in 3-6 days

0

28

Toro 613103

ROPE

$

$

Not available

29

Toro 153591

Clutch Rotor Asm.
(Superseded to 181598)

$

$

Not available

30

Toro 180232

CLUTCH DRUM ASM

$

$

Not available

31

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

32

Toro 180231

Assembly-Housing, Clutch (Incl. Ref. No. 1)

$

$

Not available

33

Toro 92-3274

Assembly-Housing (Incl. Ref. No. 4)

$

$

Not available

34

Toro 611061

ROPE GUIDE

$

$

Not available

35

Toro 153644

PULLEY RETAINER ASM

$

$

Not available

36

Toro 180249

Assembly-Crankcase (Incl. Ref. No. 5, 37-39, 44, 49-50)

$

$

Not available

37

Toro 682041

INNER BEARING ASM

$

$

Not available

38

Toro 682040

Snap ring

$

$

Not available

39

Toro 610308

OUTER BEARING

$

$

Not available

40

Toro 145918

SPACER

$

$

Not available

41

Toro 180535

RECOIL PULLEY

$

$

Not available

42

Toro 613102

RECOIL SPRING

$20.99

$

Usually ships in 3-6 days

0

43

Toro 153624

Assembly-Flvwheel
(Superseded to 180929)

$

$

Not available

44

Toro 610309

SEAL

$

$

Not available

45

Toro 92-3223

GROUND TAB

$

$

Not available

46

Toro 180238

MODULE ASM

$

$

Not available

47

Toro 180239

FRONT FUEL TANK PAD

$

$

Not available

48

Toro 180244

FUEL LINE ASM

$

$

Not available

49

Toro 180245

POWER SHAFT ASM

$

$

Not available

50

Toro 180246

CRANKCASE CAP GASKET

$

$

Not available

51

Toro 180236

CYLINDER GASKET

$

$

Not available

52

Toro 180534

PISTON & ROD ASM

$

$

Not available

53

Toro 180240

FUEL TANK ASM

$

$

Not available

54

Toro 180241

REAR FUEL TANK PAD

$

$

Not available

55

Toro 180536

FUEL TANK BRACKET

$

$

Not available

56

Toro 180000

FUEL TANK CAP

$

$

Not available

57

Toro 180243

FUEL RETURN LINE

$

$

Not available

Toro 180247

ENGINE GASKET KIT

Note: Not illustrated

$

$

Not available

Toro 153308

Kit-Carb. Repair, Walbro
(Superseded to 180602)

Note: Not illustrated

$

$

Not available

Toro 153309

Kit-Diaphragm, Walbro
(Superseded to 181069)

Note: Not illustrated

$

$

Not available

Toro 180537

PISTON RING SET

Note: Not illustrated

$

$

Not available

Toro 180248

Assembly-Short Block (Incl. Ref. No. 5, 9, 10, 26, 36-39, 44, 49-52)

Note: Not illustrated

$

$

Not available

Toro 610676

FLYWHEEL KEY (10-PK)

Note: Not illustrated

$

$

Not available
