53009 - Toro String Trimmer, Straight Shaft (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY Parts Diagram

String Trimmer, Straight Shaft

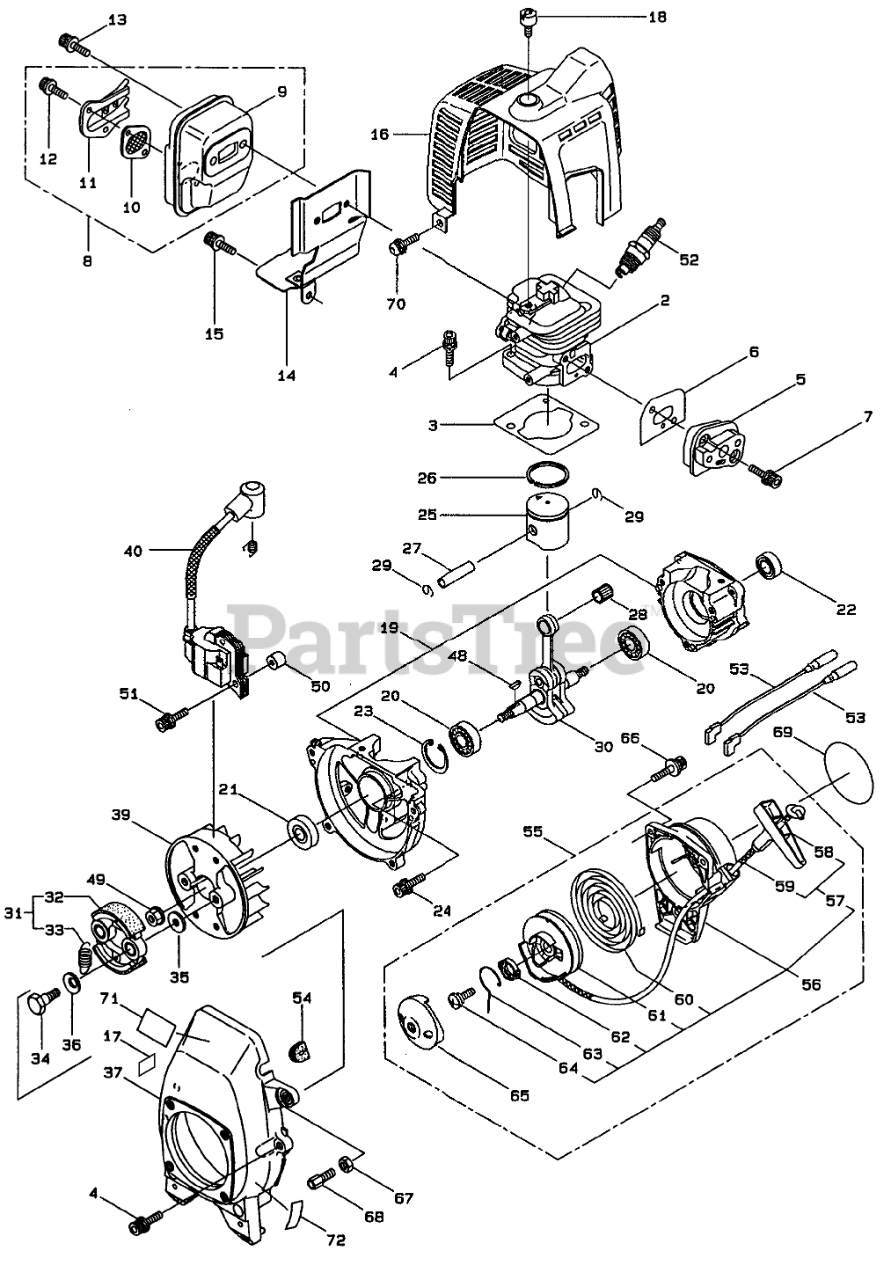

ENGINE ASSEMBLY Parts Diagram

  • Title

2

Toro M266249

CYLINDER

$345.99

$

Usually ships in 3-6 days

0

3

Toro M267178

GASKET

$

$

Not available

4

Toro M261250

BOLT

$2.99

$

Usually ships in 3-6 days

0

5

Toro M265802

INSULATOR

$

$

Not available

6

Toro M267049

GASKET

$

$

Not available

7

Toro M265924

SCREW

$

$

Not available

8

Toro M267051

Muffler Asm (Incl. Ref. # 9-12)

$56.99

$

Usually ships in 3-6 days

0

9

Toro M267052

Muffler Comp.
(Superseded to M267051)

$56.99

$

Usually ships in 3-6 days

0

10

Toro M267056

SPARK ARRESTOR

$

$

Not available

11

Toro M267053

MUFFLER DEFLECTOR

$

$

Not available

12

Toro M265107

CAPSCREW

$

$

Not available

13

Toro M266264

SCREW

$

$

Not available

14

Toro M267189

HEAT SHIELD

$

$

Not available

15

Toro M261607

BOLT

$

$

Not available

16

Toro M267270

ENGINE SHROUD

$

$

Not available

17

Toro M267581

DECAL

$

$

Not available

18

Toro M264022

SCREW

$

$

Not available

19

Toro M267063

CRANKCASE

$

$

Not available

20

Toro M261491

BEARING

$

$

Not available

21

Toro M261492

SEAL - OIL

$

$

Not available

22

Toro M261386

SEAL - OIL

$

$

Not available

23

Toro M055185

RING - SNAP

$

$

Not available

24

Toro M261612

BOLT

$

$

Not available

25

Toro M263569

PISTON

$

$

Not available

26

Toro M263789

RING

$

$

Not available

27

Toro M261036

PIN - PISTON

$

$

Not available

28

Toro M263957

BEARING - NEEDLE

$

$

Not available

29

Toro M261576

CIRCLIP

$

$

Not available

30

Toro M267193

CRANKSHAFT ASSY

$

$

Not available

31

Toro M264025

Clutch Asm (Incl. Ref. #32,33)

$

$

Not available

32

Toro M264026

SHOE - CLUTCH

$

$

Not available

33

Toro M264028

SPRING - CLUTCH

$12.99

$

Usually ships in 3-6 days

0

34

Toro M264505

BOLT - CLUTCH

$

$

Not available

35

Toro M261189

WASHER

$

$

Not available

36

Toro M261777

WASHER - WAVE

$

$

Not available

37

Toro M267593

Cover-Fan (Incl. Ref.#17)

$81.99

$

Usually ships in 3-6 days

0

39

Toro M265017

FLYWHEEL

$

$

Not available

40

Toro M267173

COIL ASSY

$

$

Not available

48

Toro M261076

KEY - WOODRUFF

$

$

Not available

49

Toro M261417

WASHER & NUT

$

$

Not available

50

Toro M261078

SPACER

$

$

Not available

51

Toro M261256

BOLT

$

$

Not available

52

Toro M264652

SPARK PLUG

$17.99

$

Usually ships in 3-6 days

0

53

Toro M267093

SWITCH LEADS

$

$

Not available

54

Toro M261202

GROMMET

$

$

Not available

55

Toro M267096

Recoil Starter Asm (Incl. Ref. #56-65)
(Superseded to M267097)

$

$

Not available

56

Toro M267097

Recoil Asm. (Incl. Ref. #57-64)

$

$

Not available

57

Toro M267217

Rope Asm (Incl. Ref. #58,59)

$23.99

$

Usually ships in 3-6 days

0

58

Toro M267219

HANDLE

$

$

Not available

59

Toro M267218

Rope-Starter
(Superseded to M267217)

$23.99

$

Usually ships in 3-6 days

0

60

Toro M267214

RECOIL SPRING

$

$

Not available

61

Toro M267212

ROPE GUIDE

$

$

Not available

62

Toro M267215

SPACER

$

$

Not available

63

Toro M267216

RECOIL WIRE

$

$

Not available

64

Toro M267213

SCREW

$

$

Not available

65

Toro M267098

STARTER CUP

$

$

Not available

66

Toro M265726

BOLT

$

$

Not available

67

Toro M261878

NUT

$

$

Not available

68

Toro M265409

ADAPTER - SCREW

$

$

Not available

69

Toro M266201

LABEL - ENGINE

$

$

Not available

70

Toro M267177

SCREW

$2.99

$

Usually ships in 3-6 days

0

71

Toro M266323

DECAL - TORO

$

$

Not available

72

Toro M267307

DECAL

$

$

Not available

Toro M850266

Engine

$

$

Currently unavailable
