53040 - Toro 24" Dual Action Hedge Trimmer (SN: 079000001 - 079999999) (1997) CARBURETOR AND STARTER ASSEMBLY Parts Diagram

24" Dual Action Hedge Trimmer

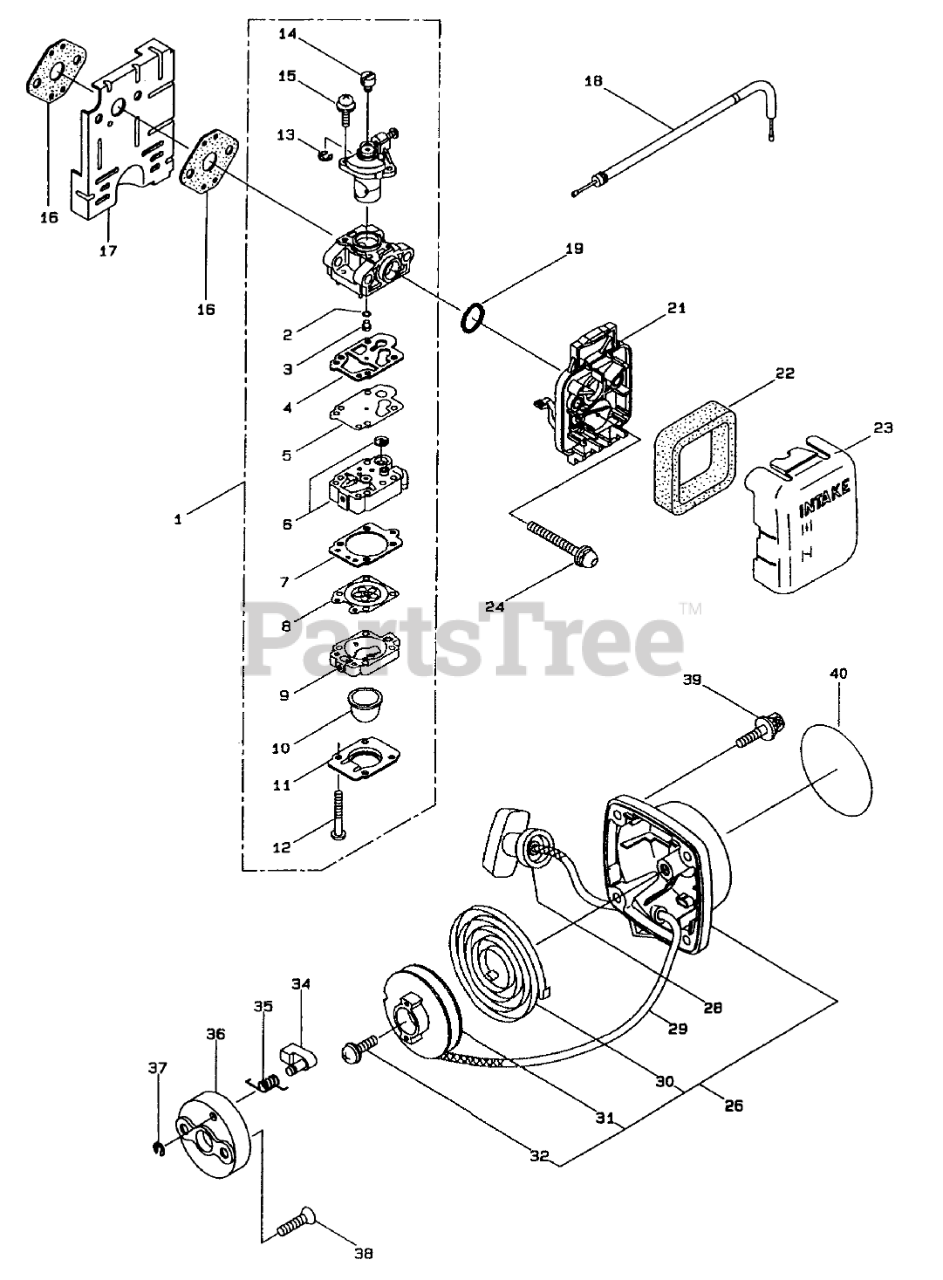

CARBURETOR AND STARTER ASSEMBLY Parts Diagram

  • Title

1

Toro M266287

ASM - CARBURETOR

$

$

Not available

2

Toro M261871

O-RING

$7.49

$

Usually ships in 3-6 days

0

3

Toro M262121

JET - MAIN

$

$

Not available

4

Toro M262995

GASKET (NC)

$17.99

$

Usually ships in 3-6 days

0

5

Toro M262994

PUMP - DIAPHRAGM (NC)

$

$

Not available

6

Toro M264155

PUMP - BODY (NC)

$

$

Not available

7

Toro M262993

GASKET (NC)

$

$

Not available

8

Toro M261873

ASM - DIAPHRAGM

$

$

Not available

9

Toro M262991

PURGE - BODY (NC)

$

$

Not available

10

Toro M261874

PRIMER

$22.99

$

In Stock, only 1 left!

0

11

Toro M262992

PLATE - COVER (NC)

$

$

Not available

12

Toro M262996

SCREW (NC)

$

$

Not available

13

Toro M261876

E-RING

$

$

Not available

14

Toro M261658

SWIVEL

$

$

Not available

15

Toro M264682

SCREW

$

$

Not available

16

Toro M261864

GASKET

$5.49

$

Usually ships in 3-6 days

0

17

Toro M265973

PLATE - BAFFLE

$

$

Not available

18

Toro M264604

CABLE COMP

$38.99

$

Usually ships in 3-6 days

0

19

Toro M264691

O-RING

$

$

Not available

21

Toro M266433

HOUSING - AIR CLEANER

$

$

Not available

22

Toro M264695

ELEMENT

$15.99

$

In Stock, only 3 left!

0

23

Toro M264709

COVER

$38.99

$

Usually ships in 3-6 days

0

24

Toro M264016

CAPSCREW

$

$

Not available

26

Toro M264083

Starter Assembly (Incl. Ref. # 27-30)

$

$

Not available

28

Toro M261725

GRIP - STARTER

$

$

Not available

29

Toro M261627

ROPE - STARTER

$

$

Not available

30

Toro M261622

SPRING - SPIRAL

$42.99

$

Usually ships in 3-6 days

0

31

Toro M261621

REEL

$

$

Not available

32

Toro M262922

SCREW

$

$

Not available

34

Toro M261630

PAWL

$

$

Not available

35

Toro M261631

SPRING - RETURN

$

$

Not available

36

Toro M264086

CASE - PAWL

$

$

Not available

37

Toro M020299

RING - SNAP, E-SHAPED

$

$

Not available

38

Toro M264535

SCREW

$

$

Not available

39

Toro M264807

CAPSCREW

$

$

Not available

40

Toro M266201

LABEL - ENGINE

$

$

Not available
