53040 - Toro 24" Dual Action Hedge Trimmer (SN: 079000001 - 079999999) (1997) HANDLE ASSEMBLY Parts Diagram

24" Dual Action Hedge Trimmer

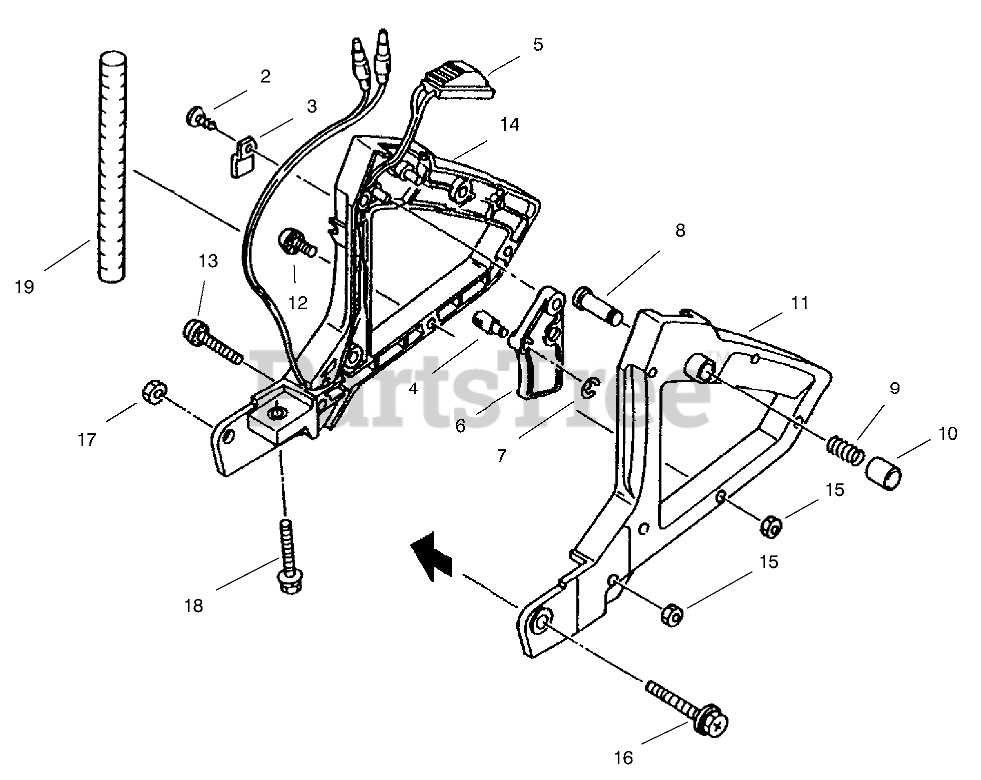

HANDLE ASSEMBLY Parts Diagram

  • Title

2

Toro M997258

SCREW

$

$

Not available

3

Toro M997259

HOLDER - CABLE

$

$

Not available

4

Toro M997260

PLATE - WIRE

$

$

Not available

5

Toro M270145

SWITCH - STOP

$

$

Not available

6

Toro M997262

LEVER - THROTTLE

$

$

Not available

7

Toro M997263

RING - SNAP

$

$

Not available

8

Toro M997264

PIN - LEVER

$

$

Not available

9

Toro M997265

SPRING

$

$

Not available

10

Toro M997266

KNOB - FIXING

$

$

Not available

11

Toro M270147

HANDLE- REAR

$

$

Not available

12

Toro M997268

SCREW

$

$

Not available

13

Toro M997269

SCREW

$

$

Not available

14

Toro M270099

HANDLE - REAR

$

$

Not available

15

Toro M997271

NUT - HEX

$

$

Not available

16

Toro M270119

BOLT

$

$

Not available

17

Toro M997253

NUT - HEX

$

$

Not available

18

Toro M270120

BOLT

$

$

Not available

19

Toro M270023

TUBE

$

$

Not available

Toro 95-6122

SAFETY GLASSES (CLEAR)

Note: Not illustrated

$

$

Not available
