53041 - Toro 31" Single Action Hedge Trimmer (SN: 089000001 - 089999999) (1998) HANDLE ASSEMBLY Parts Diagram

31" Single Action Hedge Trimmer

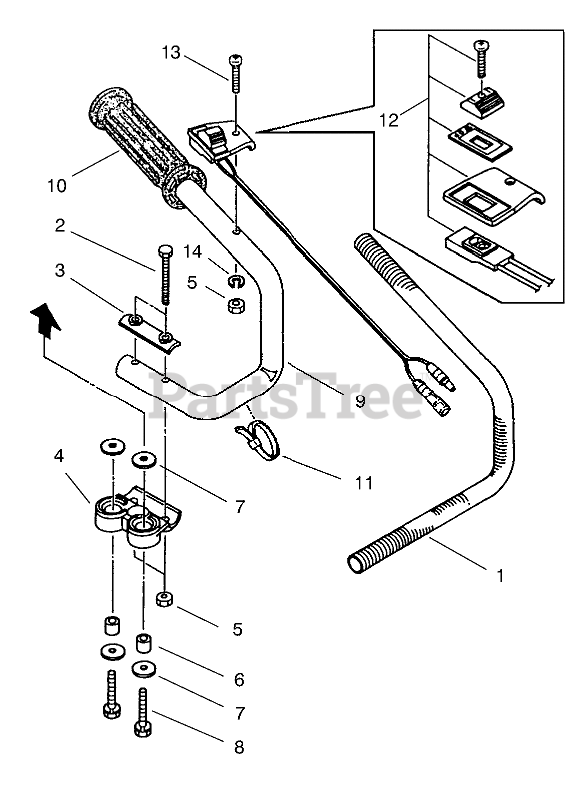

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro M580812

TUBE - CORRUGATED

$

$

Not available

2

Toro M580796

BOLT - HEX HEAD

$

$

Not available

3

Toro M577133

FITTING - HANDLE

$

$

Not available

4

Toro M577136

BRACKET - HANDLE

$

$

Not available

5

Toro M991938

NUT - HEXEGON

$

$

Not available

6

Toro M270028

COLLAR

$

$

Not available

7

Toro M270027

WASHER

$

$

Not available

8

Toro M270031

BOLT

$

$

Not available

9

Toro M591447

HANDLE - LEFT

$

$

Not available

10

Toro M577134

RUBBER - HANDLE

$

$

Not available

11

Toro M580808

BAND - CORD

$

$

Not available

12

Toro M270068

ASM - SWITCH

$

$

Not available

13

Toro M991954

SCREW

$

$

Not available

14

Toro M012501

WASHER - SPRING

$

$

Not available

Toro 95-6122

SAFETY GLASSES (CLEAR)

Note: Not illustrated

$

$

Not available
