53047 (BP 6900) - Toro Backpack Blower (SN: 089000001 - 089999999) (1998) CARBURETOR ASSEMBLY Parts Diagram

Backpack Blower

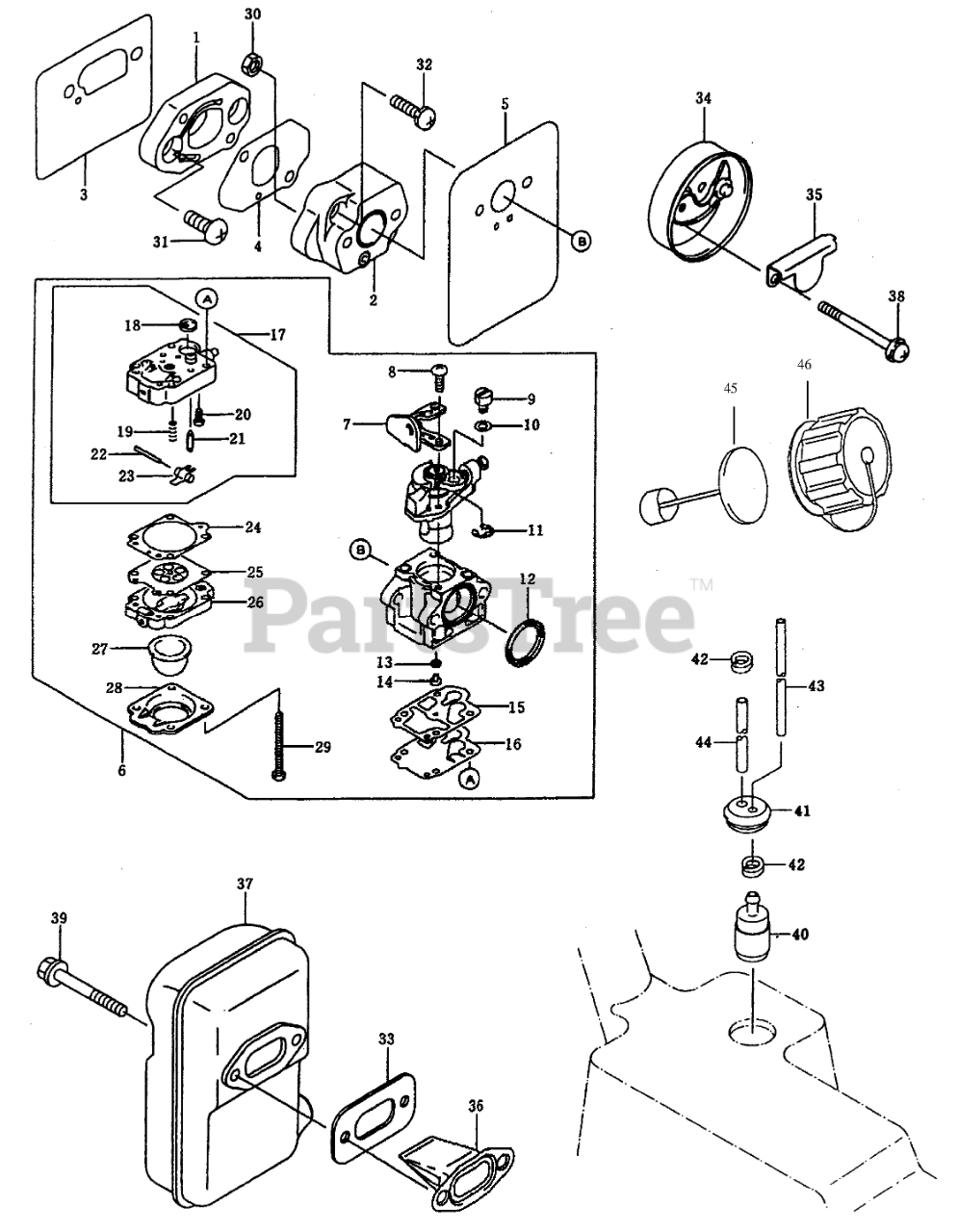

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 99-2794

ADAPTER

$

$

Not available

2

Toro 99-2792

INSULATOR

$

$

Not available

3

Toro 99-2788

GASKET "A"

$

$

Not available

4

Toro 99-2789

GASKET "B"

$

$

Not available

5

Toro 99-2790

GASKET "C'

$

$

Not available

6

Toro 99-2791

Carburetor Assembly (Inc. Ref. # 7-29)

$

$

Not available

7

Bracket

Note: Not serviced

$

$

Not available

9

Arm

Note: Not serviced

$

$

Not available

10

Washer

Note: Not serviced

$

$

Not available

11

Snap Ring

Note: Not serviced

$

$

Not available

12

Packing

Note: Not serviced

$

$

Not available

14

Main Jet

Note: Not serviced

$

$

Not available

15

Gasket

Note: Not serviced

$

$

Not available

16

Diaphragm

Note: Not serviced

$

$

Not available

17

Toro 99-2793

Body Assembly (Incl. Ref. # 18-23)

$

$

Not available

18

Filter

Note: Not serviced

$

$

Not available

21

Float Valve

Note: Not serviced

$

$

Not available

23

Lever

Note: Not serviced

$

$

Not available

24

Gasket

Note: Not serviced

$

$

Not available

25

Diaphragm

Note: Not serviced

$

$

Not available

27

Toro 99-2795

PUMP-PRIMING

$34.99

$

Usually ships in 3-6 days

0

28

Cover-Primer Pump

Note: Not serviced

$

$

Not available

30

Toro 99-2796

NUT,M5

$

$

Not available

31

Toro 99-2797

SCREW,PAN

$

$

Not available

32

Toro 99-2798

SCREW,PAN-WP

$

$

Not available

33

Toro 99-2800

GASKET,MUFFLER

$

$

Not available

34

Toro 99-2801

CASE,ASSY-AIR FILTER

$148.99

$

Usually ships in 3-6 days

0

35

Toro 99-2802

BAFFLE

$

$

Not available

36

Toro 99-2803

ARRESTER-SPARK

$

$

Not available

37

Toro 99-2804

MUFFLER-COMP

$

$

Not available

38

Toro 99-2805

SCREW

$

$

Not available

39

Toro 99-2806

BOLT,6 X 65

$

$

Not available

40

Toro 99-2808

FILTER-FUEL

$

$

Not available

41

Toro 99-2810

GROMMET,FUEL TANK

$

$

Not available

42

Toro 99-2811

CLAMP,FUEL FILTER

$

$

Not available

43

Toro 99-2812

TUBE,3 X 5 X 250

$

$

Not available

44

Toro 99-2813

TUBE,3 X 6 X 130

$

$

Not available

45

Toro 99-2807

BREATHER

$

$

Not available

46

Toro 99-2809

CAP-ASSY-TANK

$

$

Not available
