53047 (BP 6900) - Toro Backpack Blower (SN: 089000001 - 089999999) (1998) MAIN BODY ASSEMBLY Parts Diagram

Backpack Blower

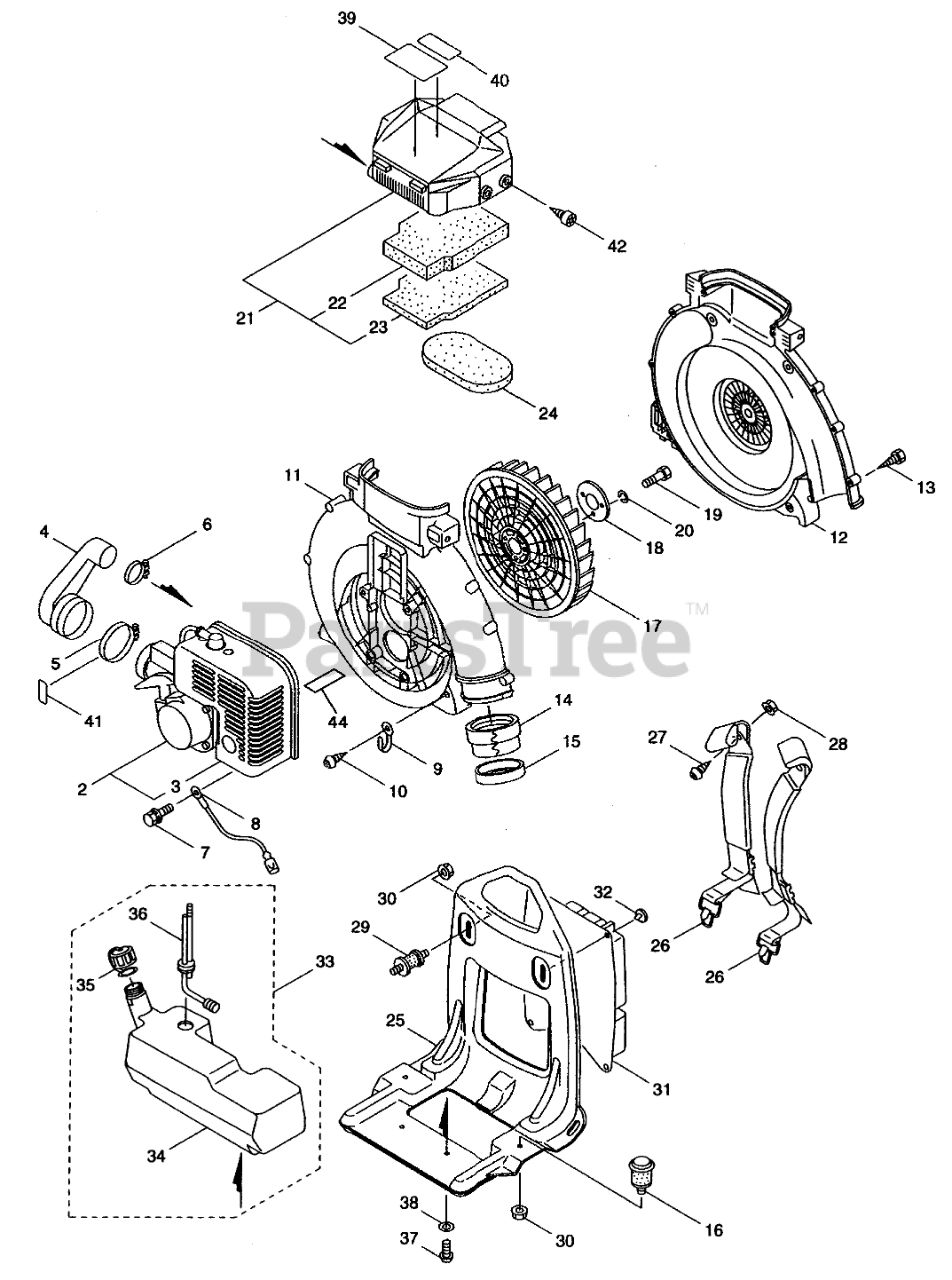

MAIN BODY ASSEMBLY Parts Diagram

  • Title

1

Blower Assembly

Note: Not serviced

$

$

Not available

2

Toro Ml19611

Engine (Incl. Ref. # 3)

$

$

Currently unavailable

3

Toro Ml19384

Shroud

$

$

Currently unavailable

4

Toro Ml19616

Pipe-Inlet

$

$

Currently unavailable

5

Toro Ml19685

Band

$

$

Currently unavailable

6

Toro Ml19684

Band

$

$

Currently unavailable

7

Toro M092543

BOLT

$

$

Not available

8

Toro M108634

EARTH CORD

$

$

Not available

9

Toro M103550

CLAMP

$

$

Not available

10

Toro M082697

TAPPING SCREW

$

$

Not available

11

Toro Ml19386

Case-Fan (E)

$

$

Currently unavailable

12

Toro M119387

FAN CASE (S)

$

$

Not available

13

Toro Ml18530

Screw-Tapping

$

$

Currently unavailable

14

Toro Ml19160

Collar

$

$

Currently unavailable

15

Toro Ml19161

Rubber Band

$

$

Currently unavailable

16

Toro M114454

BUFFER

$33.99

$

Usually ships in 3-6 days

0

17

Toro Ml18724

Fan

$

$

Currently unavailable

18

Toro M118248

PLATE

$

$

Not available

19

Toro M119558

BOLT

$

$

Not available

20

Toro M012502

SPRING WASHER

$

$

Not available

21

Toro Ml19364

Air Cleaner Assembly (Incl. Ref. # 22,23)

$

$

Currently unavailable

22

Toro M119664

ELEMENT
(Superseded to M122951)

$42.99

$

Usually ships in 3-6 days

0

23

Toro Ml19665

Felt

$

$

Currently unavailable

24

Toro M112028

PACKING

$

$

Not available

25

Toro M119174

KNAPSACK FRAME

$259.99

$

Usually ships in 3-6 days

0

26

Toro Ml18802

Band-Knapsack

$

$

Currently unavailable

27

Toro M083445

SCREW
(Superseded to M127221)

$

$

Not available

28

Toro M550132

NUT

$

$

Not available

29

Toro M026223

BUFFER

$

$

Not available

30

Toro M109704

NUT

$

$

Not available

31

Toro Ml19177

Cushion Pad

$

$

Currently unavailable

32

Toro M100749

FASTNER

$

$

Not available

33

Fuel Tank Assembly

Note: Not serviced

$

$

Not available

34

Toro Ml19389

Tank-Fuel

$

$

Currently unavailable

35

Toro M119390

CAP ASSY

$

$

Not available

36

Toro M119391

FILTER ASSY

$

$

Not available

37

Toro M081414

SCREW

$

$

Not available

38

Toro M015479

WASHER

$

$

Not available

39

Toro 98-8047

LABEL

$

$

Not available

40

Toro 98-8048

LABEL

$

$

Not available

41

Toro 99-2831

DECAL-CHOKE

$

$

Not available

42

Toro M082708

TAPPING SCREW

$

$

Not available

43

Toro 98-8049

DECAL - HOT SERFACE

$

$

Not available
