53047 (BP 6900) - Toro Backpack Blower (SN: 200000001 - 200999999) (2000) THROTTLE ASSEMBLY Parts Diagram

Backpack Blower

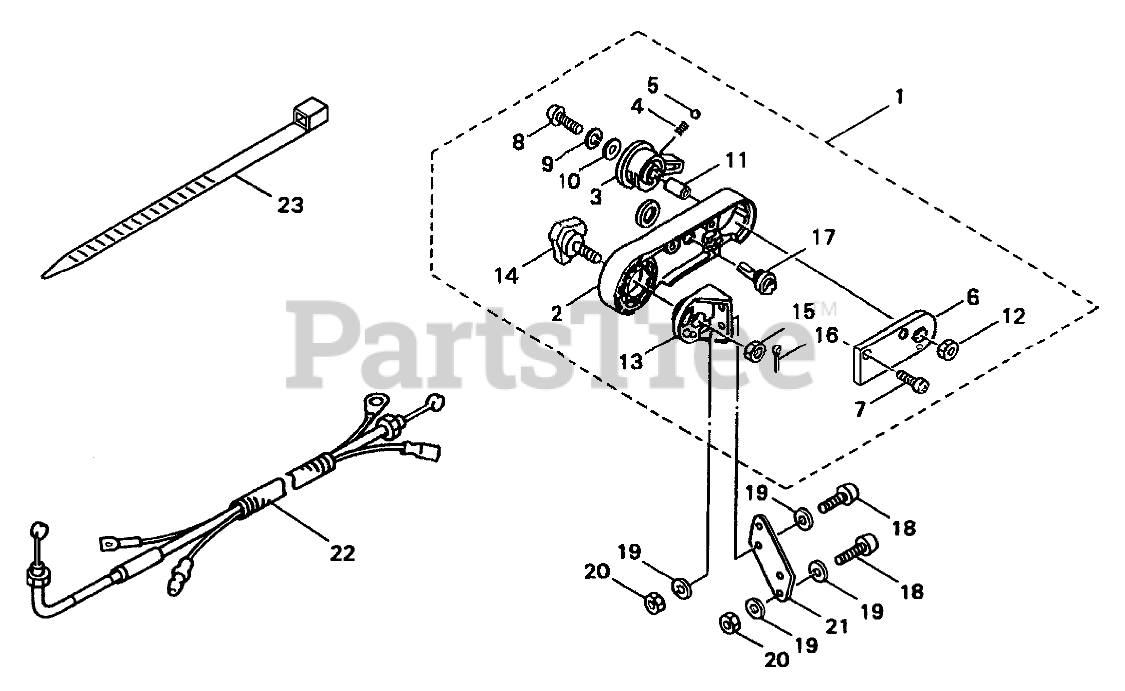

THROTTLE ASSEMBLY Parts Diagram

  • Title

1

Throttle Lever Assembly

Note: Not serviced

$

$

Not available

2

Toro M107126

ARM

$

$

Not available

3

Toro M107127

LEVER

$

$

Not available

4

Toro M107221

SPRING

$

$

Not available

5

Toro M106498

BALL

$

$

Not available

6

Toro M107129

STAY

$

$

Not available

7

Toro M019001

TAPPING SCREW

$

$

Not available

8

Toro M081457

SCREW

$

$

Not available

9

Toro M012502

SPRING WASHER

$

$

Not available

10

Toro M012488

WASHER

$

$

Not available

11

Toro M107136

COLLAR

$

$

Not available

12

Toro M081031

NUT

$

$

Not available

13

Toro Ml15605

Flange

$

$

Currently unavailable

14

Toro Ml15612

Bolt-Knob

$

$

Currently unavailable

15

Toro M107581

NYLON NUT

$

$

Not available

16

Toro M065842

COLTER PIN

$

$

Not available

17

Toro M117623

SWITCH

$

$

Not available

18

Toro M081456

SCREW

$

$

Not available

19

Toro M013754

WASHER

$

$

Not available

20

Toro Ml12509

Nut

$

$

Currently unavailable

21

Toro Ml17603

Plate

$

$

Currently unavailable

22

Toro M119411

THROTTLE CABLE ASSY

$

$

Not available

23

Toro M108954

BAND

$

$

Not available
