55600 (HMR-1200) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1989) 38" CUTTING DECK ASSEMBLY Parts Diagram

Lawn Tractor

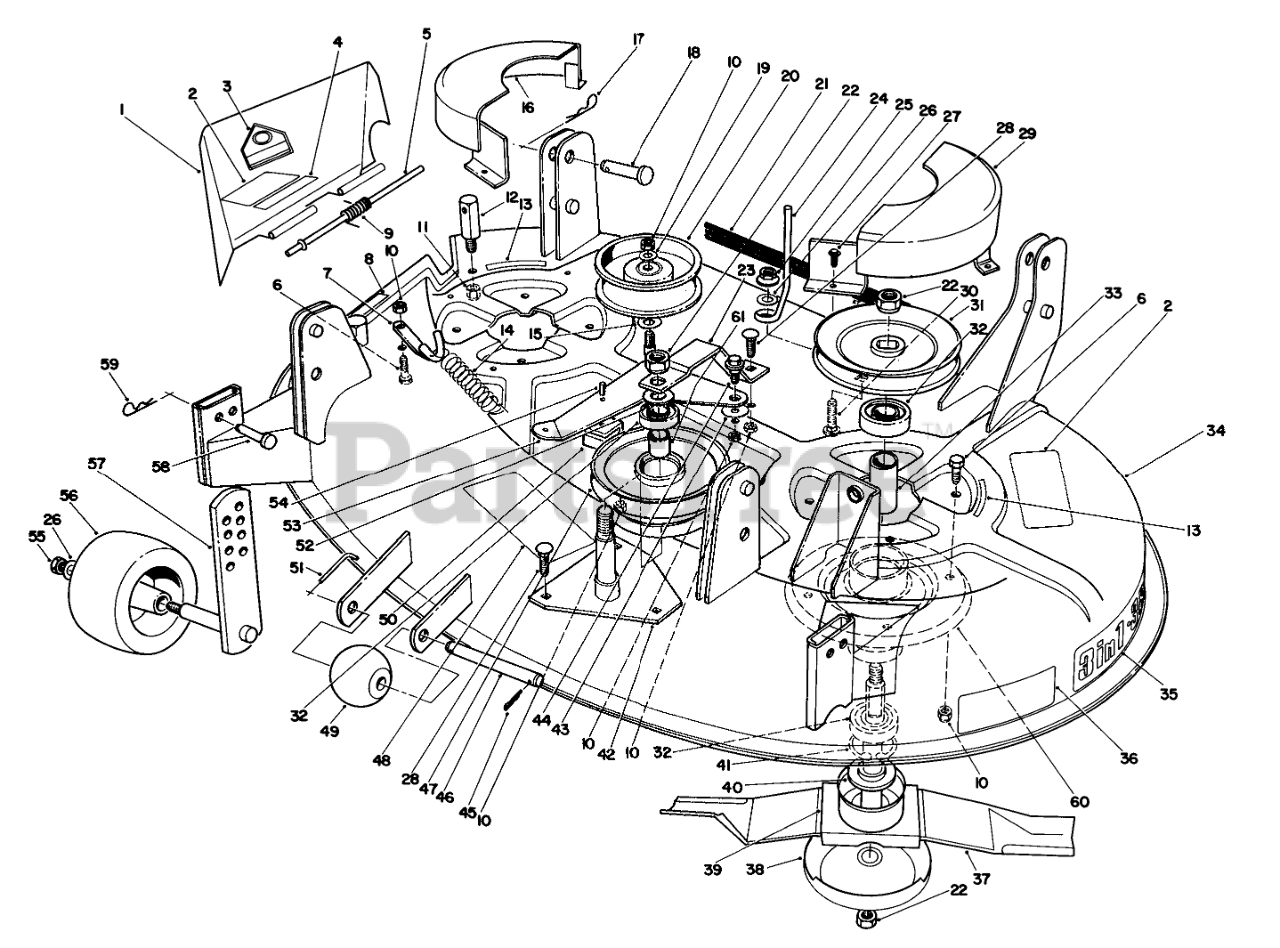

38" CUTTING DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 68-3320

Deflector Assembly (Incl. Ref. #2-4)

$

$

Not available

2

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

3

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

4

Toro 36-3400

DECAL-NO STEP
(Superseded to 93-6687)

$18.99

$

Usually ships in 3-6 days

0

5

Toro 57-4380

ROD-HINGE DEFLECTOR

$38.99

$

In Stock, only 2 left!

0

6

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 57-4510

SPRING ROD

$27.99

$

Usually ships in 3-6 days

0

8

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$13.99

$

Usually ships in 3-6 days

0

9

Toro 57-6950

SPRING

$25.99

$

In Stock, only 4 left!

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

12

Toro 57-4360

REAR PIVOT POST (PLTD)

$

$

Not available

13

Toro 68-3660

DECAL-DANGER, SHIELD

$10.99

$

In Stock, only 1 left!

0

14

Toro 28-2340

DECK TENSION SPRNG O

$

$

Not available

15

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

16

Toro 57-4590

RH BELT COVER WA B

$

$

Not available

17

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

18

Toro 283-8

PIN-CLEVIS
(Superseded to HY4486)

$1.49

$

In Stock, Qty 5

0

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 36-3220

PULLEY-IDLER

$28.99

$

In Stock, only 2 left!

0

21

Toro 57-4740

V-BELT

$59.99

$

In Stock, only 1 left!

0

22

Toro 17-0980

Nut

$9.99

$

In Stock, Qty 5

0

23

Toro 68-2750

PULLEY SUPPORT B

$

$

Not available

24

Toro 68-2380

BELT ROD

$

$

Not available

25

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

29

Toro 57-4600

Cover-Belt L.H.

$

$

Not available

30

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

31

Toro 55-7690

DECK PULLEY

$

$

Not available

32

Toro 251-297

BEARING-BALL

$19.99

$

In Stock, Qty 8

0

33

Toro 54-0210

BEARING SPACER
(Superseded to 55-7680)

$

$

Not available

34

Toro 13-3919

Deck-38" (Incl. Ref. #8, 13, 35, 36 & 48)

$

$

Not available

35

Toro 57-4860

DECK DECAL

$

$

Not available

36

Toro 68-3380

DECAL - WHEEL ADJUSTMENT

$11.99

$

Usually ships in 3-6 days

0

37

Toro 57-4700

Blade
(Superseded to 57-4700-03)

$37.99

$

In Stock, only 2 left!

0

38

Toro 7-3522

Cup
(Superseded to 92-6313)

$45.99

$

In Stock, only 1 left!

0

39

Toro 47-0091

SPINDLE SHAFT WA

$

$

Not available

40

Toro 62-5430

IDLER SPACER

$10.99

$

Usually ships in 3-6 days

0

41

Toro 32120-11

RING-RETAINING
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 20+

0

42

Toro 68-2900

JACK SHAFT WA B

$

$

Not available

43

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

44

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 7

0

45

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

46

Toro 57-0680

SHAFT-ROLLER

$

$

Not available

47

Toro 68-2990

PULLEY ASSEMBLY

$

$

Not available

48

Toro 57-7010

BELT ROUTING DECAL

$

$

Not available

49

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 6

0

50

Toro 57-4680

IDLER BRKT GUIDE

$

$

Not available

51

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

52

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

53

Toro 68-2770

IDLER BRACKET WA B

$

$

Not available

54

Toro 32121-99

PIN-COIL

$1.49

$

In Stock, only 3 left!

0

55

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

56

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$22.99

$

In Stock, Qty 20+

0

57

Toro 68-2350

GAGE-WHEEL

$115.99

$

In Stock, only 3 left!

0

58

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 3 left!

0

59

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 10

0

60

Toro 60-9670

Spindle
(Superseded to 79-1050-03)

$230.99

$

Usually ships in 3-6 days

0

61

Toro 68-2740

BEARING SPACER

$

$

Not available
