55660 - Toro 44" Side-Discharge Mower Deck (1990) ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

44" Side-Discharge Mower Deck

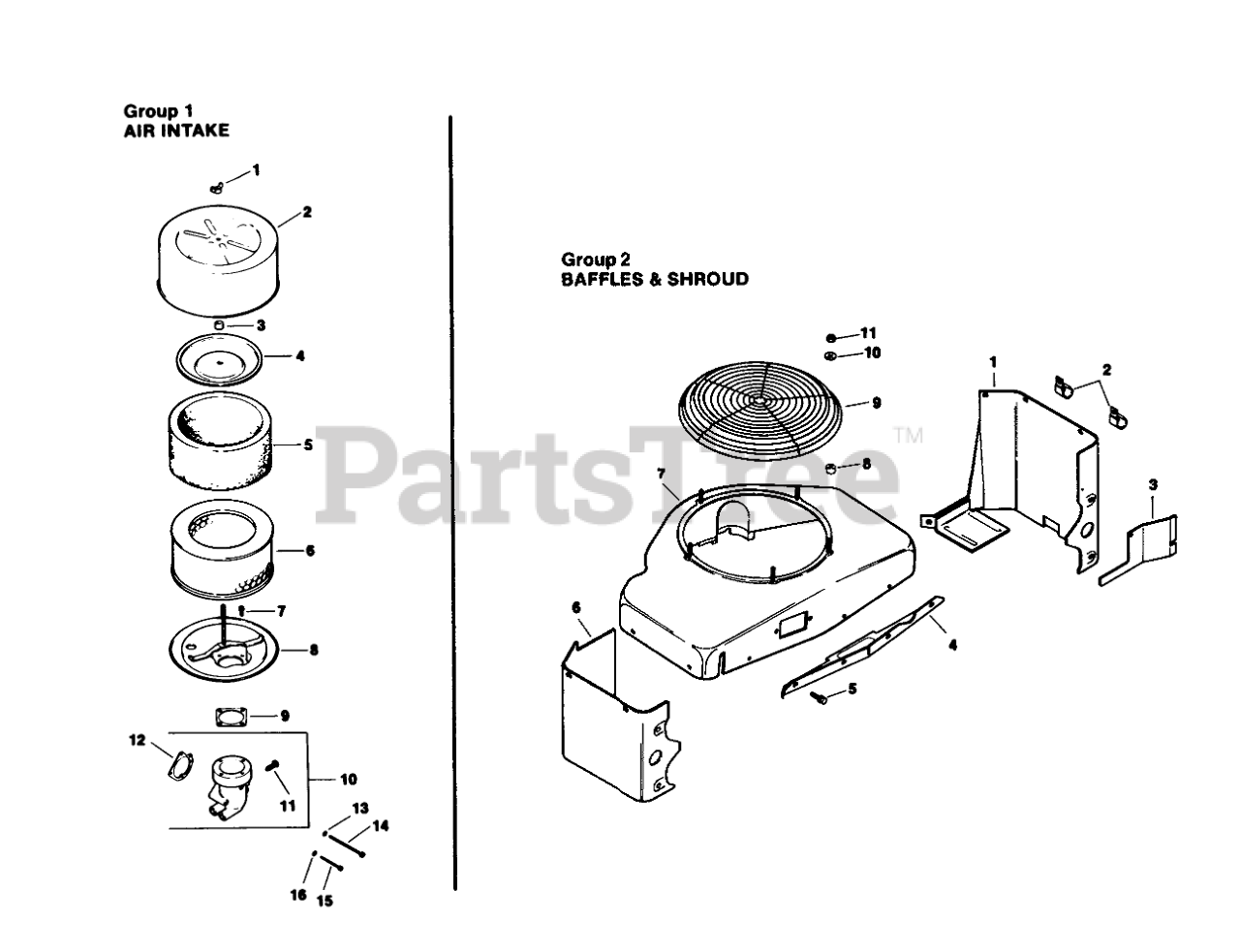

ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

  • Title

3

Baffle-Front AIR INTAKE-GROUP 1

$

$

Not available

1

Kohler X-276-7

Nut-Wing
(Superseded to X-276-7-S)

$

$

Not available

2

Toro 45-082-01

Cover-Air Cleaner

$

$

Currently unavailable

3

Kohler 231032

Seal
(Superseded to 231032-S)

$8.49

$

In Stock, Qty 7

0

4

Toro 52-082-04

Cover-Air Clean Element

$

$

Currently unavailable

5

Toro 45-083-01

Precleaner

$

$

Currently unavailable

6

Toro 45-083-02

Element

$

$

Currently unavailable

7

Kohler X-67-98

Screw-H.C.
(Superseded to X-67-98-S)

$3.49

$

In Stock, Qty 9

0

8

Toro 52-094-06

Base-Air Cleaner

$

$

Currently unavailable

9

Kohler 277093

Gasket-Air Cleaner
(Superseded to 277093-S)

$8.49

$

In Stock, Qty 8

0

10

Toro 52-754-02

Kit-Elbow (Incl. Ref. #11 & 12)

$

$

Currently unavailable

11

Toro 52-086-11

Screw-Hex Hd

$

$

Currently unavailable

12

Toro 25-041-06

Gasket-Elbow

$

$

Currently unavailable

13

Kohler X-22-9

Washer
(Superseded to X-22-9-S)

$3.99

$

In Stock, only 1 left!

0

14

Kohler X-50-57

Screw-R.H.M.
(Superseded to X-50-57-S)

$5.49

$

In Stock, only 1 left!

0

15

Kohler X-50-37

Screw-R.H.M.
(Superseded to X-50-37-S)

$3.99

$

In Stock, Qty 5

0

16

Kohler X-25-79

Washer
(Superseded to X-25-79-S)

$3.99

$

In Stock, only 2 left!

0

Toro 25-113-07

Decal-Air Cleaner BAFFLES & SHROUD GROUP 2

$

$

Currently unavailable

1

Toro 52-063-21

Baffle-Cylinder Head

$

$

Currently unavailable

2

Toro 48-154-01

Clamp

$

$

Currently unavailable

3

Toro 52-063-01

Baffle-Cylinder Head

$

$

Currently unavailable

4

Toro 52-217-01

Support-Upper Housing

$

$

Currently unavailable

5

Kohler X-67-83

Screw
(Superseded to X-67-83-S)

$2.49

$

In Stock, only 1 left!

0

6

Toro 52-124-23

Baffle-Cylinder Head

$

$

Currently unavailable

7

Toro 52-027-30

Housing-Blower

$

$

Currently unavailable

8

Toro 52-112-12

Spacer

$

$

Currently unavailable

9

Toro 47-314-01

Guard-Grass Screen

$

$

Currently unavailable

10

Toro 25-468-03

Washer

$

$

Currently unavailable

20

Toro 52-032-10

Seal-Rear Oil

$

$

Currently unavailable

28

Toro 25-086-15

Screw-Hex Washer Hd.

$

$

Currently unavailable
